130A CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

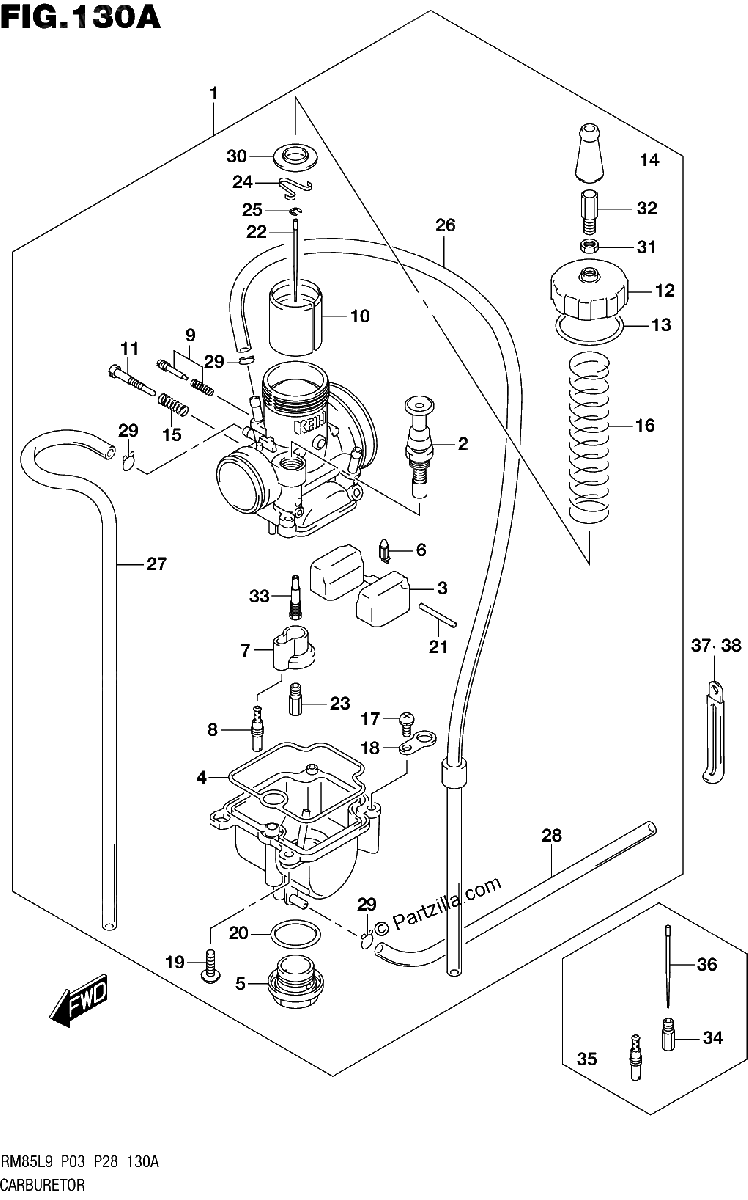

Diagrama de 130A CARBURETOR

Repuestos

#1
13200-03B30
CARBURETOR ASSY
$237.42¢118 709
1
#2
13410-03B00
.VALVE ASSY, STARTER
$115.25¢57 626
1
#3
13252-03B00
.FLOAT ASSY
$43.96¢21 982
1
#4
13251-03B00
.GASKET
$33.33¢16 664
1
#5
13247-28E00
.BOLT, DRAIN
$31.99¢15 997
1
#6
13370-03B01
.VALVE ASSY, NEEDLE
$68.57¢34 287
1
#7
13331-03B00
.HOLDER, JET
$31.30¢15 651
1
#8
09492-50023
JET, PILOT (50) | OPT
$20.96¢10 482
1
#9
13269-03B00
.ADJUST SCREW SET
$45.80¢22 902
1
#10
13551-03B00
.THROTTLE VALVE
$136.99¢68 494
1
#11
13267-03B00
.SCREW, STOP
$18.72¢9 361
1
#12
13261-03B00
.COVER
$44.93¢22 465
1
#13
13266-03B00
.GASKET
$7.74¢3 870
1
#14
13681-03B00
.CAP
$7.16¢3 582
1
#15
13268-03B00
.SPRING
$10.18¢5 089
1
#16
13573-03B00
.SPRING
$21.04¢10 522
1
#17
02112-14087
.SCREW
$2.88¢1 438
1
#18
13693-28E00
.PLATE
$10.18¢5 089
1
#19
13601-14F80
.SCREW
$4.45¢2 225
1
#20
13246-28E00
.O RING
$7.34¢3 669
1
#21
13254-92311
.PIN, FLOAT
$2.64¢1 322
1
#22
13383-03B20
NEEDLE (24NAAH) | OPT
$24.47¢12 236
1
#23
09491-25020
JET, MAIN (128) | OPT
$21.36¢10 678
1
#24
13398-03B00
.CLIP
$10.67¢5 336
1
#25
13394-28E00
.CLIP, NEEDLE
$6.35¢3 174
1
#26
13686-03B00
.PIPE ASSY
$9.52¢4 761
1
#27
13686-36E00
.HOSE, (4X7X620) | L:620-300
$11.27¢5 635
1
#28
13686-36E00
.HOSE, (4X7X620) | L:620-300
$11.27¢5 635
1
#29
09401-06101
CLIP
$2.47¢1 236
1
#30
13629-03B00
.VALVE PLATE
$6.92¢3 461
1
#31
13661-03B00
.NUT
$6.59¢3 295
1
#32
13577-03B00
.ADJUST BOLT
$10.60¢5 302
1
#33
13341-03B00
.JET, NEEDLE
$22.28¢11 138
1
#37
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#38
09404-08418
CLAMP (L:65)
$2.50¢1 248
1
#34-1
09491-23027
JET, MAIN (115) | OPT
$21.76¢10 879
1
#34-2
09491-23028
JET, MAIN (118) | OPT
No Disponible
1
#34-3
09491-24030
JET, MAIN (120) | OPT
$21.76¢10 879
1
#34-4
09491-24031
JET, MAIN (122) | OPT
$21.76¢10 879
1
#34-5
09491-25019
JET, MAIN (125) | OPT
$21.76¢10 879
1
#34-6
09491-25020
JET, MAIN (128) | OPT
$21.36¢10 678
1
#34-7
09491-26017
JET, MAIN (130) | OPT
$21.76¢10 879
1
#34-8
09491-26018
JET, MAIN (132) | OPT
$21.76¢10 879
1
#34-9
09491-27016
JET, MAIN (135) | OPT
No Disponible
1
#35-1
09492-45032
JET, PILOT (45) | OPT
$20.96¢10 482
1
#35-2
09492-48013
JET, PILOT (48) | OPT
$20.96¢10 482
1
#35-3
09492-50023
JET, PILOT (50) | OPT
$20.96¢10 482
1
#35-4
09492-52011
JET, PILOT (52) | OPT
$21.36¢10 678
1
#35-5
09492-55017
JET, PILOT (55) | OPT
$21.76¢10 879
1
#35-6
09492-58001
JET, PILOT (58) | OPT
$22.37¢11 184
1
#36-1
13383-03B00
NEEDLE (24NAAF) | OPT
No Disponible
1
#36-2
13383-03B10
NEEDLE (24NAAG) | OPT
No Disponible
1
#36-3
13383-03B20
NEEDLE (24NAAH) | OPT
$24.47¢12 236
1
#36-4
13383-03B30
NEEDLE (24NAAJ) | OPT
$25.39¢12 696
1
#36-5
13383-03B40
NEEDLE (24NAAK) | OPT
$25.39¢12 696
1
#36-6
13383-03B50
NEEDLE (24NCDF) | OPT
No Disponible
1
#36-7
13383-03B60
NEEDLE (24NCDG) | OPT
No Disponible
1
#36-8
13383-03B70
NEEDLE (24NCDH) | OPT
No Disponible
1
#36-9
13383-03B80
NEEDLE (24NCDJ) | OPT
No Disponible
1
#34-10
09491-27017
JET, MAIN (138) | OPT
No Disponible
1
#34-11
09491-28019
JET, MAIN (140) | OPT
No Disponible
1
#34-12
09491-28020
JET, MAIN (142) | OPT
$21.76¢10 879
1
#34-13
09491-29014
JET, MAIN (145) | OPT
$10.75¢5 376
1
#36-10
13383-03B90
NEEDLE (24NCDK) | OPT
No Disponible
1
