112A CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

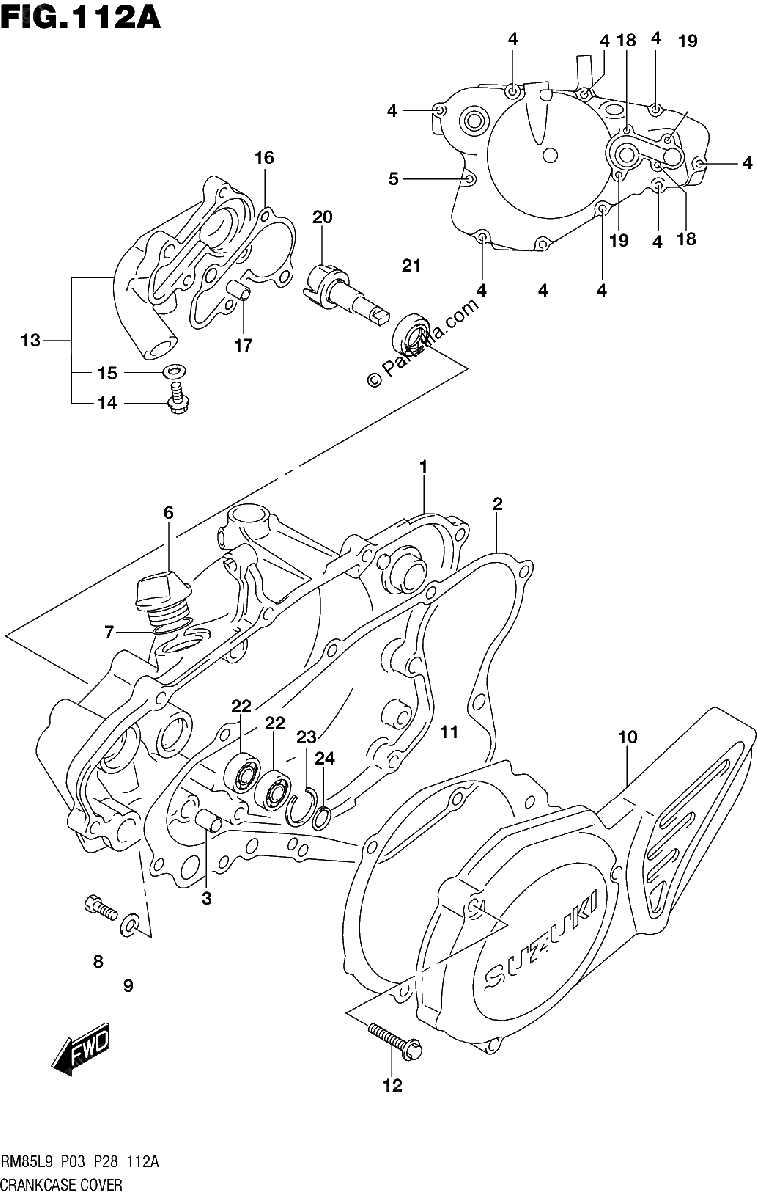

Diagrama de 112A CRANKCASE COVER

Repuestos

#1
11341-03B00
COVER, CLUTCH
$335.57¢167 785
1
#2
11482-27C02
GASKET, CLUTCH COVER
$15.23¢7 613
1
#3
04211-09129
PIN
$1.97¢983
1
#4
01547-0625A
BOLT
$2.42¢1 208
1
#5
01547-0635A
BOLT
$2.77¢1 386
1
#6
11971-25D00
PLUG, ENGINE OIL FILLER
$5.60¢2 800
1
#7
09280-17003
O RING (D:3.1,ID:16.8)
$1.97¢983
1
#8
07120-0610A
.BOLT
$2.88¢1 438
1
#9
09168-06004
GASKET (6.2X11X1.2)
$1.71¢857
1
#10
11351-03B00
COVER, MAGNETO
$103.88¢51 940
1
#11
11483-03B00
GASKET, MAGNETO COVER
$9.43¢4 715
1
#12
01547-0625A
BOLT
$2.42¢1 208
1
#13
17410-03B00
CASE ASSY, WATER PUMP
$150.97¢75 486
1
#14
17415-43D00
.BOLT, DRAIN
$4.54¢2 271
1
#15
17413-28C10
.GASKET
$2.46¢1 231
1
#16
17431-02B42
GASKET, WATER PUMP CASE
$7.59¢3 795
1
#17
04211-09129
PIN
$1.97¢983
1
#18
01547-0620A
BOLT
$2.42¢1 208
1
#19
01547-0630A
BOLT
$2.77¢1 386
1
#20
17491-02B41
IMPELLER, WATER PUMP
$30.44¢15 220
1
#21
17461-03B00
OIL SEAL, WATER PUMP
$9.06¢4 531
1
#22
08113-06980
BEARING
$13.71¢6 854
1
#23
09381-19003
CIRCLIP
$2.43¢1 213
1
#24
08331-31089
CIRCLIP
$2.12¢1 058
1
