415A FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

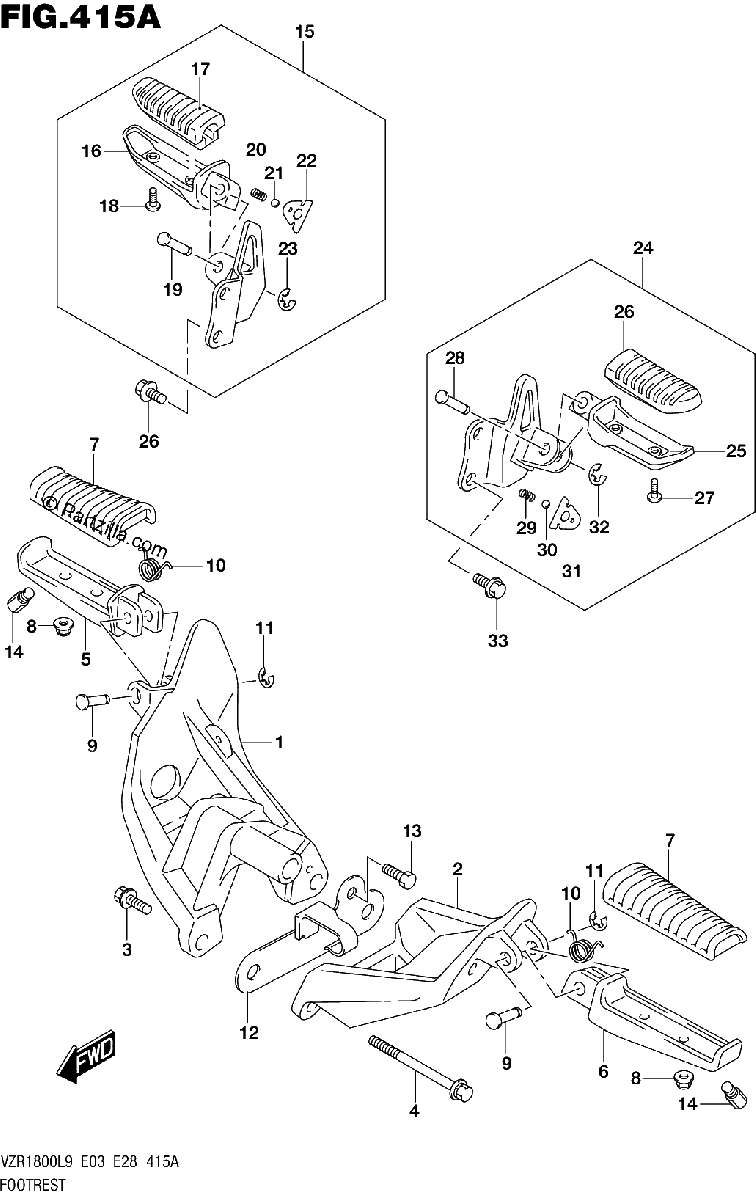

Diagrama de 415A FOOTREST

Repuestos

#1
43511-48G10
BRACKET, FRONT FOOTREST RH
$299.29¢149 644
1
#2
43521-48G01
BRACKET, FRONT FOOTREST LH
$528.45¢264 224
1
#3
09103-10268
BOLT (10X28)
$6.65¢3 323
1
#4
09103-10337
BOLT (10X85) | LH
$7.90¢3 950
1
#5
43531-48G01
BAR, FRONT FOOTREST RH
$58.57¢29 285
1
#6
43541-48G01
BAR, FRONT FOOTREST LH
$57.13¢28 566
1
#7
43550-48G00
RUBBER, FR FOOTREST
$32.96¢16 479
1
#8
08319-2106A
.NUT
$2.27¢1 133
1
#9
09208-08019
PIN
$3.32¢1 662
1
#10
09448-14047
SPRING
$4.60¢2 300
1
#11
08332-1106A
.E RING
$1.71¢857
1
#12
43560-48G00
PLATE, FOOTREST BRACKET
$39.39¢19 694
1
#13
01500-0612A
BOLT
$2.15¢1 075
1
#14
43576-07D01
BOLT, BANK SENSOR
$9.71¢4 853
1
#15
43600-48G00
FOOTREST ASSY, PILLION RH
$218.50¢109 250
1
#16
43611-44G00
.BAR, PILLION FOOTREST RH
$68.10¢34 052
1
#17
43550-44G00
.RUBBER, FOOTREST
$44.16¢22 080
1
#18
02142-05127
.SCREW
$2.36¢1 179
1
#19
09208-08017
.PIN
$4.06¢2 030
1
#20
09440-05005
.SPRING
$1.70¢851
1
#21
06111-07004
.BALL
$1.46¢730
1
#22
43816-44G00
.PLATE, PILLION
$5.65¢2 823
1
#23
08332-1106A
.E RING
$1.71¢857
1
#24
43700-48G00
FOOTREST, PILLION LH
$218.50¢109 250
1
#25
43621-44G00
.BAR, PILLION FOOTREST LH
$68.10¢34 052
1
#26
43550-44G00
.RUBBER, FOOTREST
$44.16¢22 080
1
#27
02142-05127
.SCREW
$2.36¢1 179
1
#28
09208-08017
.PIN
$4.06¢2 030
1
#29
09440-05005
.SPRING
$1.70¢851
1
#30
06111-07004
.BALL
$1.46¢730
1
#31
43816-44G00
.PLATE, PILLION
$5.65¢2 823
1
#32
08332-1106A
.E RING
$1.71¢857
1
#33
09103-08412
BOLT (8X16)
$3.66¢1 829
1
