OIL PAN OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

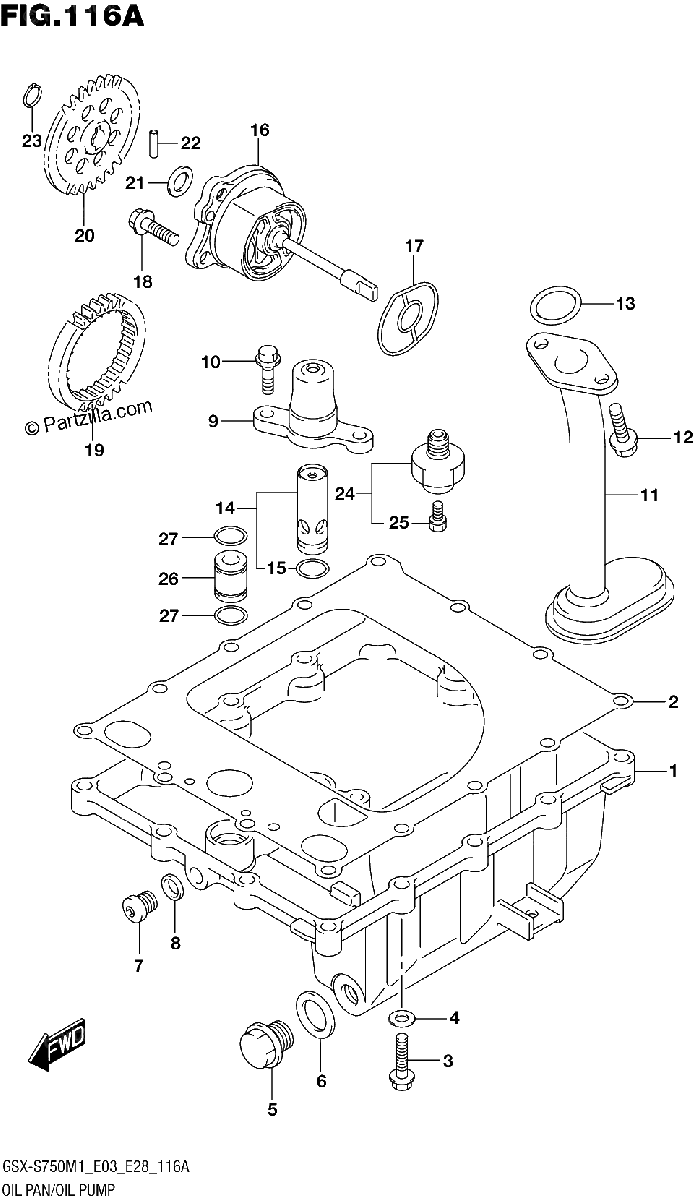

Diagrama de OIL PAN OIL PUMP

Repuestos

#1
11511-21H01
PAN, OIL
$183.63¢91 816
1
#2
11489-21H00
.GASKET, OIL PAN
$21.56¢10 781
1
#3
01547-0625A
BOLT
$2.42¢1 208
1
#4
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#5
09247-14036
PLUG (14X20) | OIL DRAIN
$6.68¢3 341
1
#6
09168-14002
GASKET (13.8X18.8X4.8)
$3.16¢1 581
1
#7
09248-10010
PLUG (10X10)
$4.58¢2 289
1
#8
09168-10002
GASKET (10X14X3.6)
$2.28¢1 138
1
#9
11512-44G00
CAP, OIL RELIEF VALVE
$21.11¢10 557
1
#10
01547-0620A
BOLT
$2.42¢1 208
1
#11
16520-44G00
STRAINER ASSY, ENGINE OIL
$67.99¢33 994
1
#12
01550-0616A
BOLT
$2.36¢1 179
1
#13
09280-19008
O RING (D:2.62,ID:20.3)
$5.96¢2 978
1
#14
16440-24F00
VALVE ASSY, OIL RELIEF
$54.89¢27 445
1
#15
09280-13004
.O RING (D:1.9,ID:13)
$2.62¢1 311
1
#16
16400-35F00
PUMP ASSY, ENGINE OIL
$217.96¢108 980
1
#17
16491-35F00
O RING
$6.82¢3 410
1
#18
01547-0620A
BOLT
$2.42¢1 208
1
#19
16321-35F01
GEAR, OIL PUMP DRIVE (NT:33)
$86.17¢43 085
1
#20
16331-35F00
GEAR, OIL PUMP DRIVEN (NT:35)
$92.02¢46 011
1
#21
09181-10158
SHIM (10X18X0.5)
$2.36¢1 179
1
#22
09261-04009
PIN (4X15.8)
$1.79¢897
1
#23
08331-31109
CIRCLIP
$2.12¢1 058
1
#24
37820-33D10
SWITCH ASSY, OIL PRESSURE
$30.34¢15 168
1
#25
37822-33D00
.BOLT
$5.40¢2 702
1
#26
11281-44G00
PIPE, OIL GALLERY
$17.19¢8 596
1
#27
09280-13004
.O RING (D:1.9,ID:13)
$2.62¢1 311
1
