CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

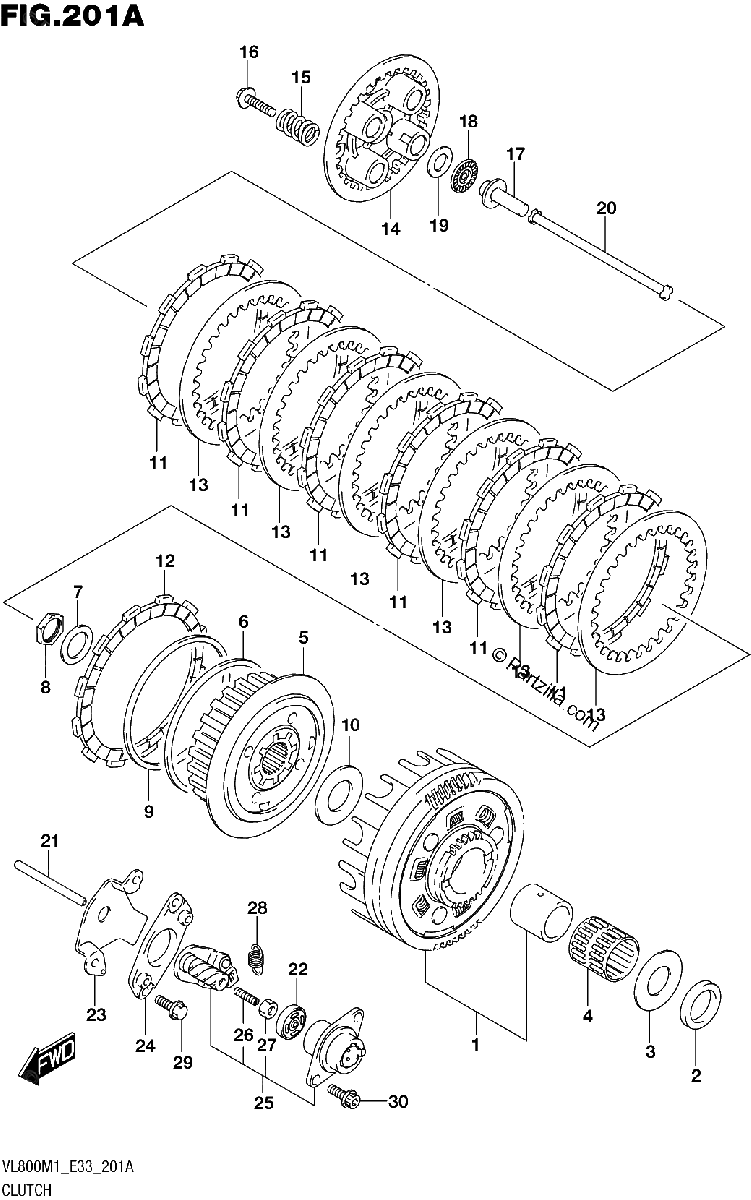

Diagrama de CLUTCH

Repuestos

#1
21200-38840
GEAR, PRIMARY DRIVEN (NT:71)
$619.98¢309 988
1
#2
09180-25077
SPACER (25X38X6.5)
$17.78¢8 888
1
#3
09160-25055
WASHER (25X50X2.5)
$11.29¢5 644
1
#4
09263-35017
BEARING (35X40X35.8)
$48.35¢24 175
1
#5
21410-41F00
HUB, SLEEVE
$194.29¢97 144
1
#6
21471-37400
SEAT, WAVE WASHER
$11.66¢5 831
1
#7
09164-22007
WASHER
$9.65¢4 825
1
#8
09140-22008
NUT
$9.65¢4 825
1
#9
09164-00004
WASHER
$13.54¢6 769
1
#10
09160-25055
WASHER (25X50X2.5)
$11.29¢5 644
1
#11
21441-37400
PLATE, DRIVE NO.1 (T:3.0)
$21.61¢10 806
1
#12
21442-37401
PLATE, CLUTCH DRIVE NO.2
$22.26¢11 131
1
#13
21451-14A00
PLATE, DRIVEN (T:1.6)
$11.35¢5 675
1
#14
21462-27A00
DISC, PRESSURE
$77.85¢38 925
1
#15
21413-41F00
SPRING, CLUTCH
$5.71¢2 856
1
#16
09116-06203
BOLT (6X30)
$3.75¢1 875
1
#17
23121-31E00
PIECE, CLUTCH PUSH
$29.34¢14 669
1
#18
09263-15003
BEARING (15X28X2)
$9.75¢4 875
1
#19
09160-15045
WASHER (15.5X28X1)
$4.58¢2 288
1
#20
23110-27A00
ROD, CLUTCH
$25.86¢12 931
1
#21
23111-45C00
ROD, PUSH LH
$23.44¢11 719
1
#22
09283-06010
OIL SEAL (6X34X10.5)
$19.75¢9 875
1
#23
23117-45C00
RETAINER
No Disponible
1
#24
23130-45C00
BRACKET, RELEASE SCREW
$35.48¢17 738
1
#25
23200-41F00
SCREW ASSY, CLUTCH RELEASE
$129.56¢64 781
1
#26
09134-06010
.SCREW (6X25)
$3.66¢1 831
1
#27
08310-00067
NUT
$2.39¢1 194
1
#28
09443-09050
SPRING
$4.80¢2 400
1
#29
07120-0620A
BOLT
$3.56¢1 781
1
#30
07120-0616A
BOLT
$3.31¢1 656
1
