CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

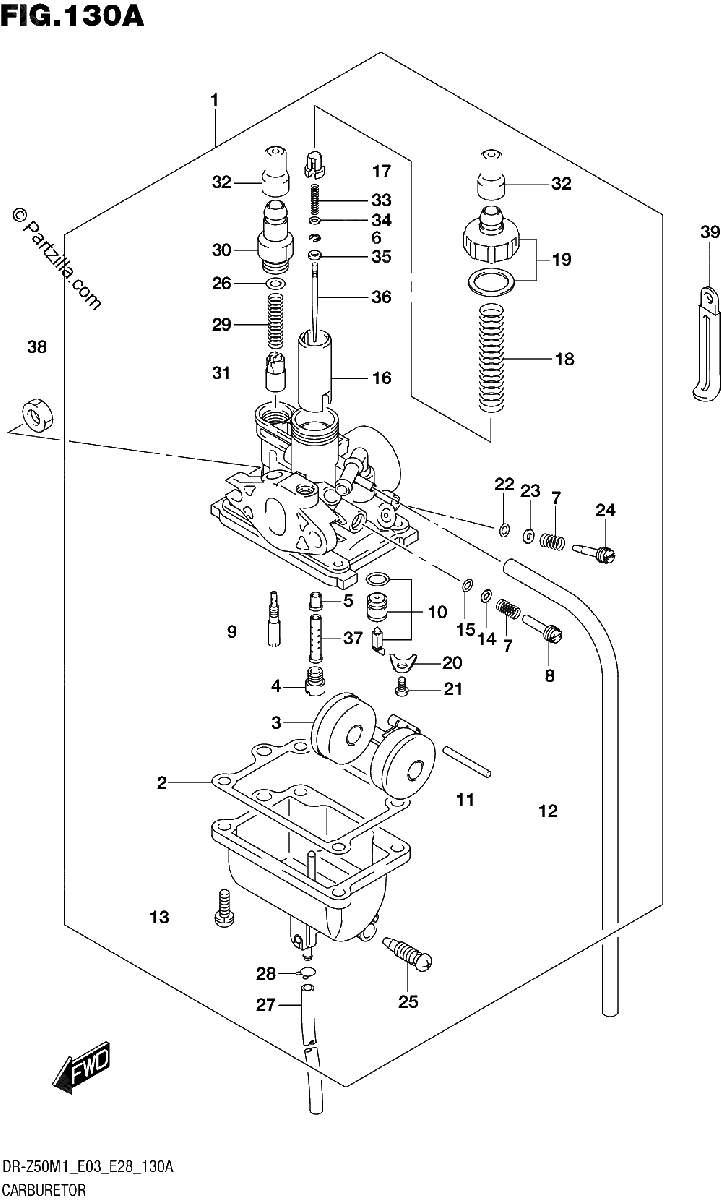

Diagrama de CARBURETOR

Repuestos

#1
13200-14HB0
CARBURETOR ASSY
$259.39¢129 694
1
#2
13251-02410
.GASKET
$6.40¢3 200
1
#3
13250-02500
.FLOAT
$32.09¢16 044
1
#4
09491-55006
.JET, MAIN (55)
$24.56¢12 281
1
#5
13341-14H00
.JET, NEEDLE (E-5M)
$59.77¢29 888
1
#6
13533-98410
.E RING
$6.64¢3 319
1
#7
13268-35010
.SPRING
$5.34¢2 669
1
#8
13483-16A01
.SCREW
$21.94¢10 969
1
#9
09492-17012
.JET, PILOT (17.5)
$32.04¢16 019
1
#10
13370-36G00
.VALVE ASSY, NEEDLE
$78.09¢39 044
1
#11
13254-20010
.PIN, FLOAT
$5.79¢2 894
1
#12
09352-50006-600
.HOSE (5X9X600) *{L:600->200}*
$8.80¢4 400
1
#13
13601-04148
.SCREW
$3.65¢1 825
1
#14
13291-35010
.WASHER
$5.65¢2 825
1
#15
13295-33010
.O RING
$5.34¢2 669
1
#16
13551-36G00
.VALVE, PISTON
$65.31¢32 656
1
#17
13418-12F40
.HOLDER
$9.72¢4 863
1
#18
13268-14H00
.SPRING
$7.56¢3 781
1
#19
13261-36G00
.CAP
$50.66¢25 331
1
#20
13373-46710
.PLATE
$8.09¢4 044
1
#21
02112-0306B
.SCREW
$2.09¢1 044
1
#22
13295-29901
O RING
$5.17¢2 588
1
#23
13291-29900
.WASHER
$2.34¢1 169
1
#24
13269-43G00
.ADJUSTER (2,0)
$17.63¢8 813
1
#25
13247-09G10
.PLUG, DRAIN
$8.10¢4 050
1
#26
13278-02330
.O RING
$3.65¢1 825
1
#27
09355-30705-600
.HOSE (3X7X600) | L:600-400
$13.21¢6 606
1
#28
13529-98011
CLIP
$4.16¢2 081
1
#29
13417-37200
.SPRING
$4.36¢2 181
1
#30
13418-14H00
.CAP, STARTER
No Disponible
1
#31
13411-22G00
.PLUNGER, STARTER
$25.85¢12 925
1
#32
13416-26F00
.CAP
$4.64¢2 319
1
#33
13481-23F00
.SPRING
$7.65¢3 825
1
#34
13382-23F00
.WASHER
$6.00¢3 000
1
#35
13387-23F00
.RING
$8.16¢4 081
1
#36
13383-14H00
.NEEDLE, JET
$25.85¢12 925
1
#37
13385-14HA0
.PIPE
$24.91¢12 456
1
#38
09140-06027
NUT
$3.59¢1 794
1
#39
09404-06030
CLAMP (L:80)
No Disponible
1
