AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

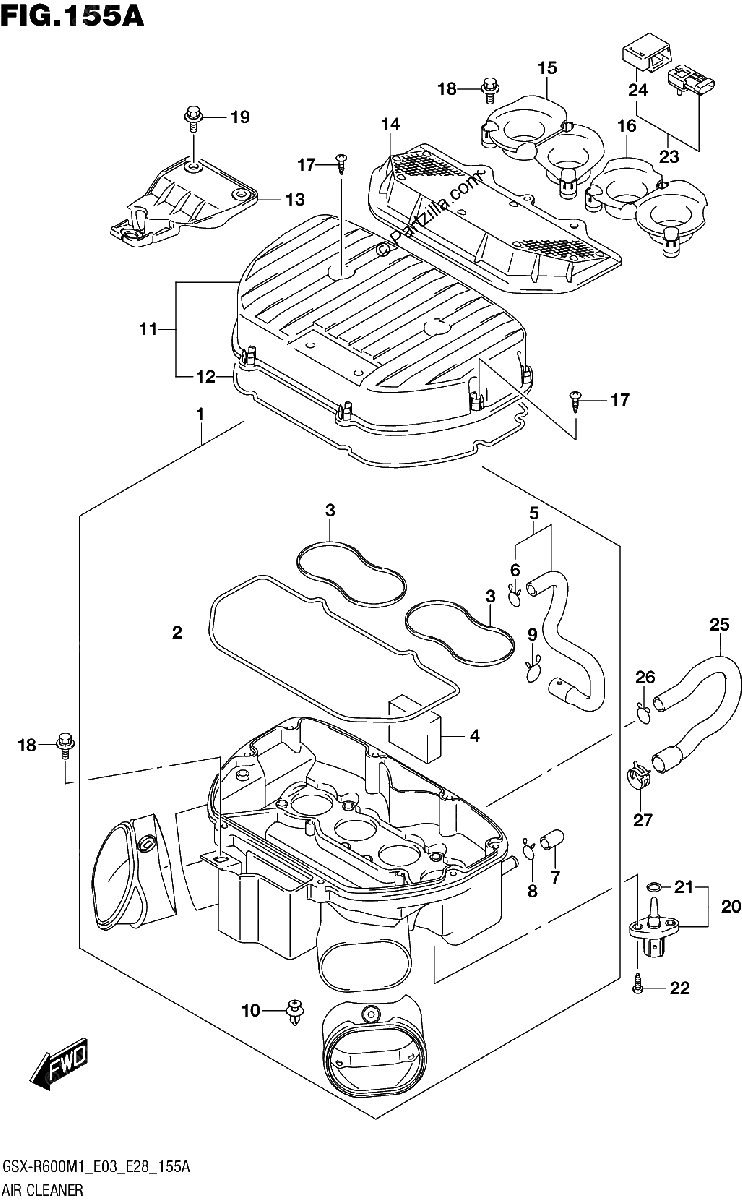

Diagrama de AIR CLEANER

Repuestos

#1
13720-14J01
CASE,AIR CLEANER
$296.46¢148 231
1
#2
13756-14J00
.GASKET, CASE
$8.16¢4 081
1
#3
13757-14J00
.GASKET, CASE
$7.84¢3 919
1
#4
13788-14J00
.FILTER BREATHER
$7.18¢3 588
1
#5
13850-14J01
.TUBE,BREATHER
$38.10¢19 050
1
#6
09401-15101
.CLIP
$2.97¢1 487
1
#7
13878-10G01
PLUG
$4.30¢2 150
1
#8
09401-14301
.CLIP
$2.74¢1 369
1
#9
09401-17201
CLIP
$4.13¢2 063
1
#10
09409-07305-5PK
.CLIP (BLACK)
$2.90¢1 450
1
#11
13740-14J00
CAP, AIR CLEANER
$101.15¢50 575
1
#12
13746-14J00
.GASKET, CAP
$17.40¢8 700
1
#13
13760-14J00
HOLDER, AIR CLEANER
$25.40¢12 700
1
#14
13780-14J00
FILTER ASSY
$49.52¢24 763
1
#15
13881-14J00
FUNNEL, OUTLET RH
$52.04¢26 019
1
#16
13882-14J00
FUNNEL, OUTLET LH
$52.04¢26 019
1
#17
03541-0520A
SCREW
$2.36¢1 181
1
#18
13831-47H00
BOLT, AIR CLEANER CASE
$10.08¢5 038
1
#19
09111-06089
BOLT (6X16)
$3.40¢1 700
1
#20
13650-14G10
SENSOR, AIR TEMPERATURE
$62.09¢31 044
1
#21
13655-14G10
.O RING
$13.38¢6 688
1
#22
03511-0516A
SCREW
$2.45¢1 225
1
#23
15630-29G10
SENSOR, PRESSURE
$365.75¢182 875
1
#24
15625-29G00
.COVER
$16.73¢8 363
1
#25
13697-14J00
HOSE, ISC VALVE
$27.71¢13 856
1
#26
09401-15101
.CLIP
$2.97¢1 487
1
#27
09401-17401
CLIP
$4.06¢2 031
1
