AIR INTAKE PIPE GSX R750Z

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

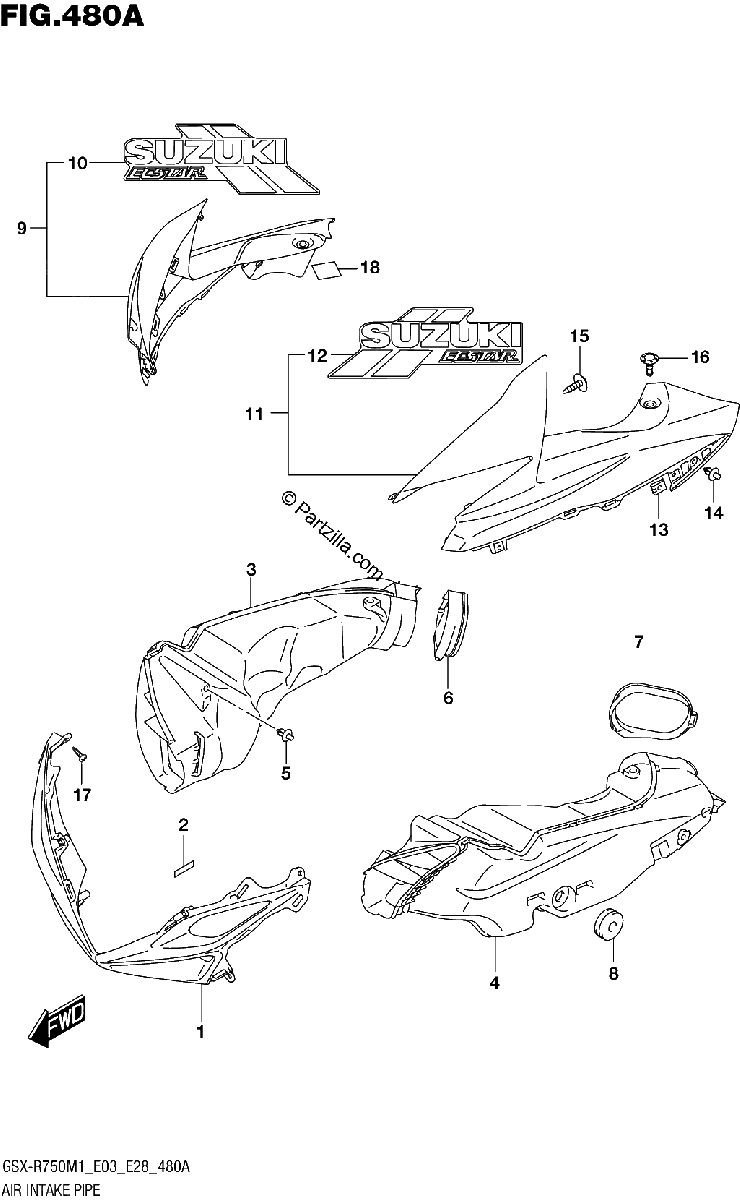

Diagrama de AIR INTAKE PIPE GSX R750Z

Repuestos

#1
94671-14J10-YVB
COVER, INTAKE FRONT (BLACK) | FOR KGL
$213.82¢106 913
1
#2
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#3
94420-14J10
PIPE, INTAKE RH
$102.59¢51 294
1
#4
94430-14J10
PIPE, INTAKE LH
$99.24¢49 619
1
#5
09409-06314
CLIP
$3.60¢1 800
1
#6
94423-14J00
MOLDING, RH
$17.10¢8 550
1
#7
94433-14J00
MOLDING, LH
$17.10¢8 550
1
#8
09320-08514
CUSHION (8X26X7)
$3.25¢1 625
1
#9
94670-14J30-YSF
COVER,INTAKE,R (BLUE)
$197.56¢98 781
1
#10
68275-14J20-BR9
.TAPE,INTAKE COVER,R (WHITE,Y LLOW,BLUE)
$24.96¢12 481
1
#11
94680-14J30-YSF
COVER,INTAKE,L (BLUE)
$197.56¢98 781
1
#12
68285-14J20-BR9
TAPE,INTAKE COVER,L (WHITE,Y LLOW,BLUE)
$24.96¢12 481
1
#13
09148-05052
NUT
$3.96¢1 981
1
#14
09409-06314
CLIP
$3.60¢1 800
1
#15
09132-05050
SCREW (5X12)
$2.40¢1 200
1
#16
94479-35F00
CLIP
$6.70¢3 350
1
#17
03541-0512A
SCREW
$1.79¢894
1
#18
33652-13E00
PROTECTOR, FRONT
$3.65¢1 825
1
