FRAME COVER GSX R1000RA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

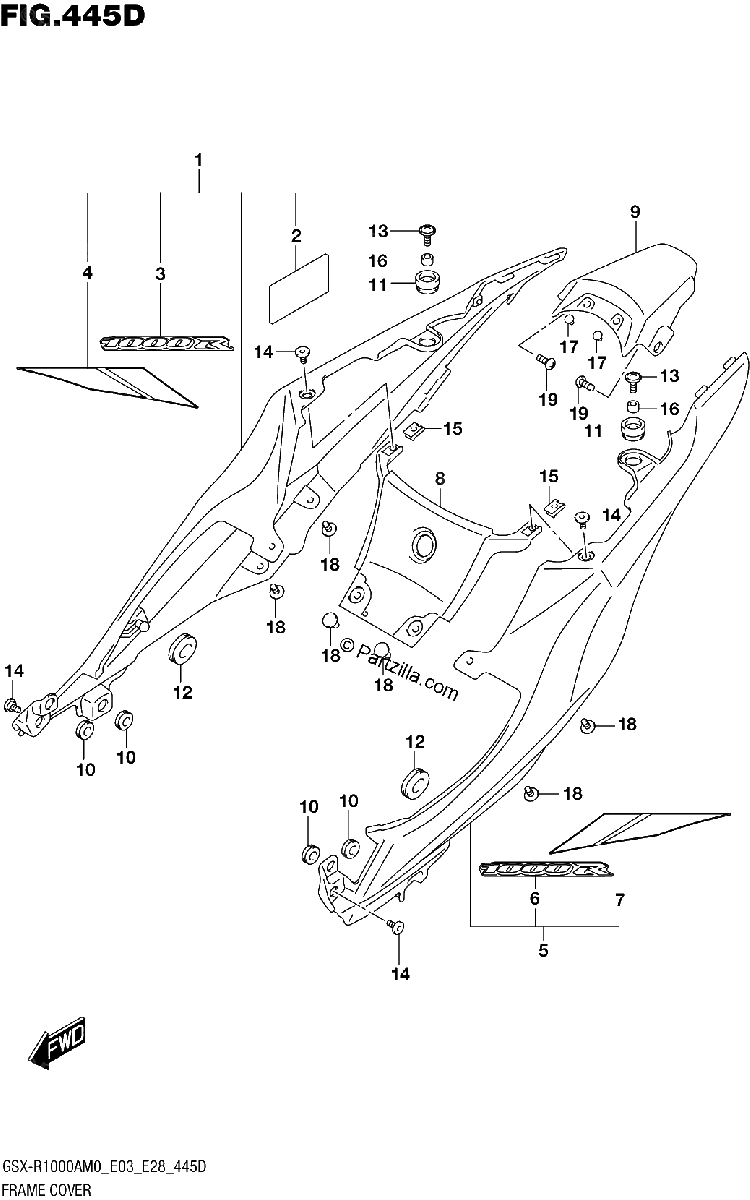

Diagrama de FRAME COVER GSX R1000RA

Repuestos

#2
33652-17K10
CUSHION, REAR TURNSIGNAL LEAD
$5.22¢2 613
1
#8
47311-17K00
COVER, FRAME CENTER FRONT
$41.40¢20 700
1
#10
44173-14J00
CUSHION, SIDE
$5.11¢2 556
1
#1-1
47110-17K80-YSF
COVER,FRAME,RH (BLUE) *{BODY COLOR:YSF}*
$220.06¢110 031
1
#11
47312-37H00
CUSHION
$3.65¢1 825
1
#1-2
47110-17K80-YVZ
COVER,FRAME,RH (RED) *{BODY COLOR:JSP}*
$220.06¢110 031
1
#12
94478-14J00
CUSHION
$7.05¢3 525
1
#13
09139-06139
SCREW (6X16)
$3.80¢1 900
1
#14
09139-05092
SCREW
$2.90¢1 450
1
#15
09148-05052
NUT
$3.96¢1 981
1
#16
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#17
09250-06012
.PLUG (OD:10)
$3.56¢1 781
1
#18
09409-06328
CLIP
$3.80¢1 900
1
#19
03541-0516A
SCREW
$1.79¢894
1
#3-1
68131-17K00-BJ8
.EMBLEM, FRAME COVER
$18.35¢9 175
1
#3-2
68131-17K00-BWY
.EMBLEM,FRAME COVER (ORANGE,W ITE,BLACK) *{BODY COLOR:JSP}*
No Disponible
1
#4-1
68135-17K40-A3F
.TAPE,FRAME COVER,R (WHITE,BL E,YELLOW) *{BODY COLOR:YSF}*
$36.75¢18 375
1
#4-2
68135-17K40-BPA
.TAPE,FRAME COVER,R (BLACK,GR Y,RED) *{BODY COLOR:JSP}*
No Disponible
1
#5-1
47210-17K80-YSF
COVER,FRAME,LH (BLUE) *{BODY COLOR:YSF}*
$220.06¢110 031
1
#5-2
47210-17K80-YVZ
COVER,FRAME,LH (RED) *{BODY COLOR:JSP}*
$216.00¢108 000
1
#6-1
68131-17K00-BJ8
.EMBLEM, FRAME COVER
$18.35¢9 175
1
#6-2
68131-17K00-BWY
.EMBLEM,FRAME COVER (ORANGE,W ITE,BLACK) *{BODY COLOR:JSP}*
No Disponible
1
#7-1
68145-17K40-A3F
.TAPE,FRAME COVER,L (WHITE,BL E,YELLOW) *{BODY COLOR:YSF}*
$36.75¢18 375
1
#7-2
68145-17K40-BPA
.TAPE,FRAME COVER,L (BLACK,GR Y,RED) *{BODY COLOR:JSP}*
No Disponible
1
#9-1
47411-17K00-YSF
COVER, FRAME CENTER REAR (BLUE)
$70.64¢35 319
1
#9-2
47411-17K00-YVZ
COVER,FRAME CENTER REAR (RED) *{BODY COLOR:JSP}*
$94.96¢47 481
1
