CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

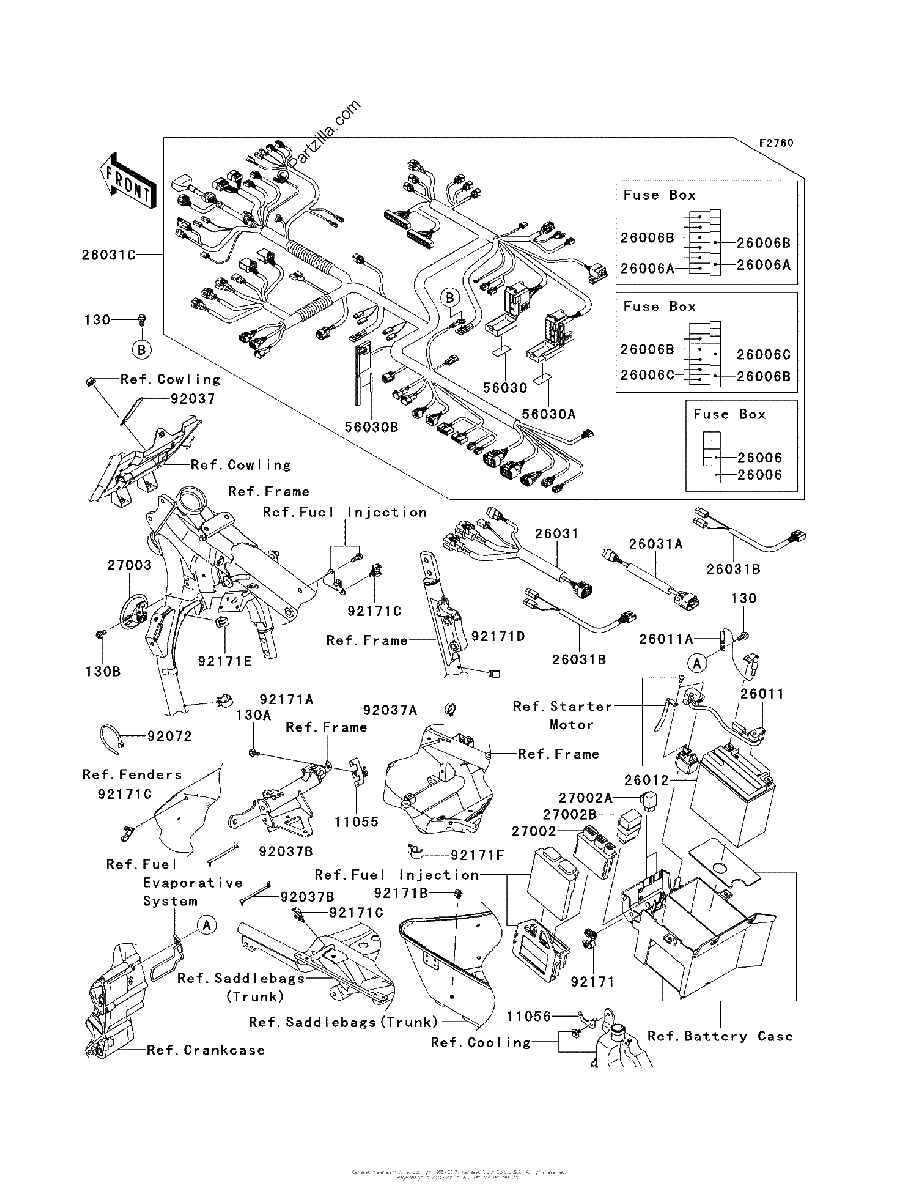

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#130A
130BB0612
BOLT FLANGED,6X12
$2.01¢1 006
1
#130B
130BB0618
BOLT FLANGED,6X18
$1.60¢799
1
#11055
11055-0613
BRACKET,CONNECTOR
$8.89¢4 445
1
#11056
11056-1777
BRACKET,FUSE BOX
$4.51¢2 254
1
#26006C
26006-1079
FUSE,MINI BLADE,20A,YELLOW
$4.45¢2 225
1
#26006
26006-0054
FUSE,MINI BLADE,3A,VIOLET
$6.15¢3 076
1
#26006A
26006-1077
FUSE,MINI BLADE,5A,TAN
$4.66¢2 329
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26011
26011-0179
WIRE-LEAD,BATTERY(+)
$65.31¢32 654
1
#26011A
26011-0180
WIRE-LEAD,BATTERY(-)
$62.17¢31 085
1
#26012
26012-0589
BATTERY,FTZ16-BS,12V 18AH
No Disponible
1
#26031
26031-0646
HARNESS,Rear,SUB
$128.59¢64 296
1
#26031A
26031-0678
HARNESS,HIGH MOUNT LAMP
$48.12¢24 058
1
#26031B
26031-0778
HARNESS,SPEAKER
$10.02¢5 008
1
#26031C
26031-1265
HARNESS,MAIN
$1331.50¢665 752
1
#27002B
27002-1113
RELAY Assembly,SIGNAL LAMP
$136.11¢68 057
1
#27002A
27002-1062
RELAY-ASSY
$47.54¢23 771
1
#27002
27002-0007
RELAY-ASSY,BOX
No Disponible
1
#27003
27003-0055
HORN
$89.94¢44 971
1
#56030B
56030-0766
LABEL,FUSE BOX
$6.43¢3 214
1
#56030A
56030-0293
LABEL,FUSE BOX
$7.98¢3 991
1
#56030
56030-0177
LABEL,FUSE BOX
$6.41¢3 203
1
#92037B
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92037A
92037-1827
CLAMP,HOSE
$6.82¢3 410
1
#92037
92037-1636
CLAMP,HARNESS,L=100
$8.14¢4 071
1
#92072
92072-1195
BAND,L=202
$1.39¢696
1
#92171E
92171-1424
CLAMP,15MM DIA.
$3.83¢1 915
1
#92171D
92171-1423
CLAMP,10MM DIA.
$4.04¢2 018
1
#92171C
92171-1415
CLAMP,13MM DIA.
$1.83¢914
1
#92171B
92171-0834
CLAMP
No Disponible
1
#92171A
92171-0081
CLAMP,20MM DIA.
$4.04¢2 018
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.46¢1 231
1
#92171F
92171-1460
CLAMP
$4.38¢2 191
1
