COWLING LOWERS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

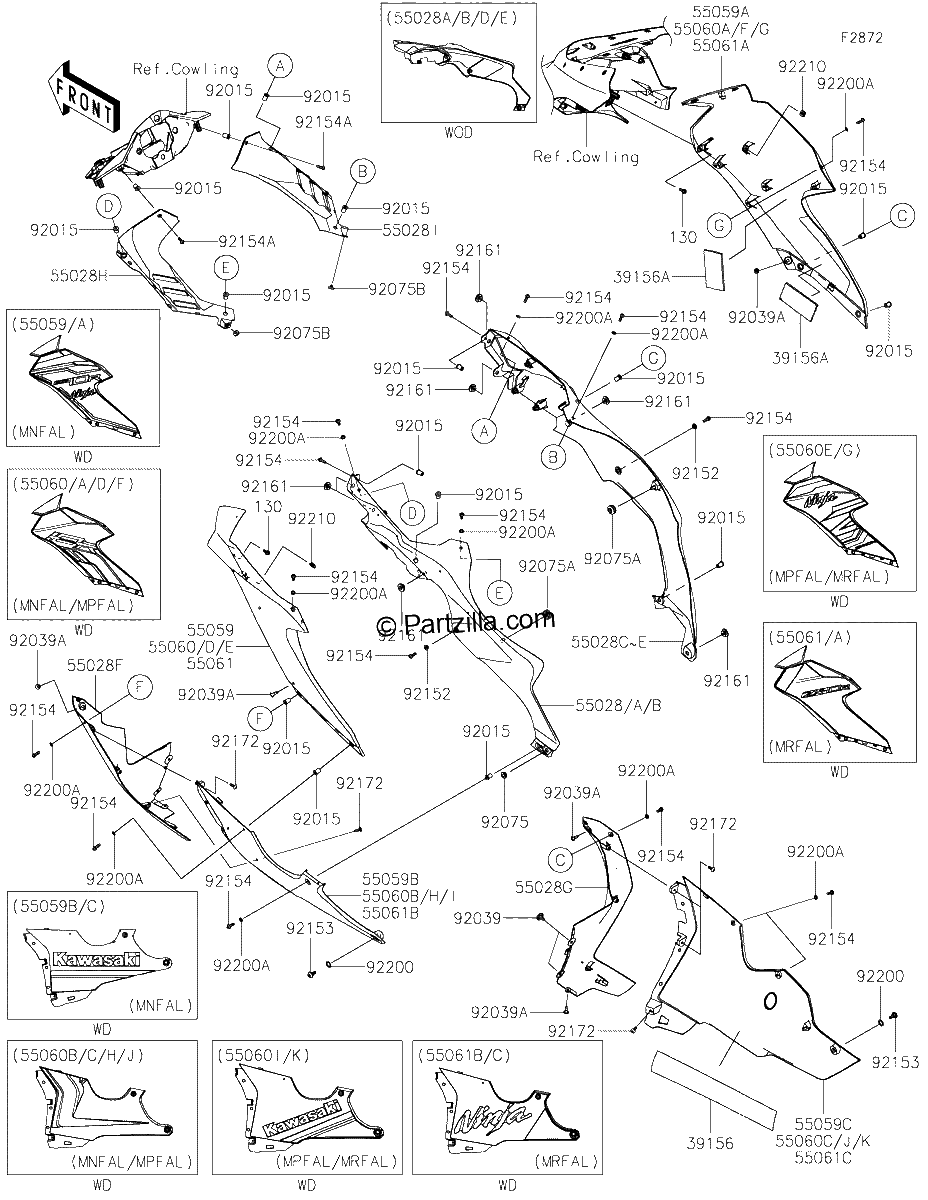

Diagrama de COWLING LOWERS

Repuestos

#130
130BA0512
BOLT-FLANGED,5X12
$1.85¢926
1
#39156
39156-0753
PAD,49X400X0.3
$17.91¢8 953
1
#39156A
39156-2543
PAD,100X50X5
$2.24¢1 121
1
#55028I
55028-0768
COWLING,INNER,RH
$33.94¢16 968
1
#55028
55028-0759-68P
COWLING,SIDE,Left Hand,M M G GRAY
$284.46¢142 232
1
#55028
55028-0759-777
COWLING,SIDE,LH,L.GREEN
$284.46¢142 232
1
#55028
55028-0759-H8
COWLING,SIDE,LH,EBONY
$284.48¢142 238
1
#55028C
55028-0760-68P
COWLING,SIDE,Right Hand,M M G GRAY
$299.83¢149 914
1
#55028C
55028-0760-777
COWLING,SIDE,RH,L.GREEN
$299.83¢149 914
1
#55028C
55028-0760-H8
COWLING,SIDE,RH,EBONY
$299.83¢149 914
1
#55028F
55028-0765
COWLING,FR,LWR,LH
$65.40¢32 700
1
#55028G
55028-0766
COWLING,FR,LWR,RH
$60.97¢30 487
1
#55028H
55028-0767
COWLING,INNER,LH
$33.94¢16 968
1
#55059
55059-5406-H8
COWLING,WINGLET,LH,EBONY
$546.87¢273 436
1
#55059A
55059-5407-H8
COWLING,WINGLET,RH,EBONY
$501.69¢250 844
1
#55059B
55059-5408-54X
COWLING,LWR,LH,P.B.WHITE
$360.10¢180 050
1
#55059C
55059-5409-54X
COWLING,LWR,RH,P.B.WHITE
$365.58¢182 792
1
#55060C
55060-5322-17K
COWLING,LWR,RH,M.D.BLACK
$388.79¢194 396
1
#55060C
55060-5324-777
COWLING,Lower,Right Hand,L GREEN
$403.95¢201 974
1
#55060B
55060-5321-777
COWLING,Lower,Left Hand,L GREEN
$396.27¢198 133
1
#55060B
55060-5319-17K
COWLING,LWR,LH,M.D.BLACK
$381.10¢190 549
1
#55060
55060-5109-68P
COWLING,WINGLET,LH,M.M.G.GRAY
$425.55¢212 773
1
#55060A
55060-5110-68P
COWLING,WINGLET,RH,M.M.G.GRAY
$428.10¢214 049
1
#55060B
55060-5111-17K
COWLING,Lower,Left Hand,M D BLACK
$330.05¢165 025
1
#55060C
55060-5112-17K
COWLING,LWR,RH,M.D.BLACK
$306.96¢153 479
1
#55060
55060-5314-68P
COWLING,WINGLET,LH,M.M.G.GRAY
$493.48¢246 738
1
#55060
55060-5315-H8
COWLING,WINGLET,LH,EBONY
$627.37¢313 685
1
#55060A
55060-5317-68P
COWLING,WINGLET,RH,M.M.G.GRAY
$493.48¢246 738
1
#55060A
55060-5318-H8
COWLING,WINGLET,RH,EBONY
$627.37¢313 685
1
#55061
55061-5100-739
COWLING,WINGLET,Left Hand,M F S BLACK
$408.15¢204 073
1
#55061A
55061-5101-739
COWLING,WINGLET,Right Hand,M F S BLACK
$406.41¢203 205
1
#55061B
55061-5102-739
COWLING,Lower,Left Hand,M F S BLACK
$366.57¢183 287
1
#55061C
55061-5103-739
COWLING,Lower,Right Hand,M F S BLACK
$342.98¢171 488
1
#55061
55061-5317-777
COWLING,WINGLET,Left Hand,L GREEN
$440.83¢220 415
1
#55061A
55061-5318-777
COWLING,WINGLET,Right Hand,L GREEN
$440.83¢220 415
1
#55061B
55061-5319-H8
COWLING,Lower,Left Hand,EBONY
$373.04¢186 519
1
#55061C
55061-5320-H8
COWLING,Lower,Right Hand,EBONY
$343.67¢171 833
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039A
92039-0068
RIVET
$2.51¢1 254
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.74¢1 368
1
#92075
92075-1011
DAMPER,6X16X7
$6.72¢3 358
1
#92075A
92075-1067
DAMPER
$4.28¢2 139
1
#92075B
92075-2113
DAMPER,BOOST SENSOR
$1.10¢552
1
#92152
92152-2740
COLLAR
$5.85¢2 927
1
#92153
92153-0489
BOLT,SOCKET,6MM
$3.40¢1 702
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154A
92154-1701
BOLT,SOCKET,5X16
$1.14¢569
1
#92161
92161-1937
DAMPER,6X20X7.5
$1.59¢793
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.59¢793
1
#92200
92200-0157
WASHER,10.4X15.9X0.5
$1.87¢937
1
#92200A
92200-1820
WASHER,5.2X10X1.0
$0.71¢357
1
#92210
92210-0571
NUT
$3.22¢1 610
1
