REAR MASTER CYLINDER 1 DL1050RQ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

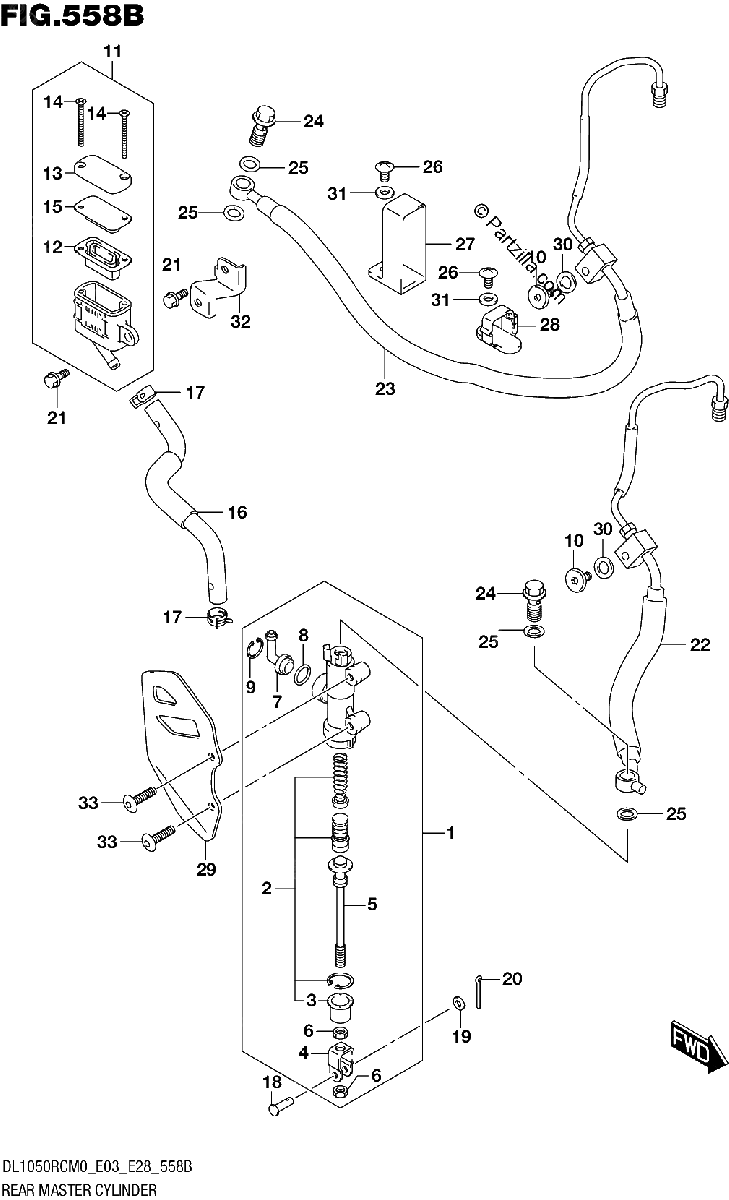

Diagrama de REAR MASTER CYLINDER 1 DL1050RQ

Repuestos

#1
69600-31J00
CYLINDER ASSY, REAR MASTER
$321.91¢160 956
1
#2
69600-34830
.PISTON / CAP SET
$48.09¢24 044
1
#3
69691-00A00
..BOOT
$6.51¢3 256
1
#4
69692-44H00
.YOKE
$22.77¢11 388
1
#5
69670-31J00
.ROD, PUSH
$45.79¢22 894
1
#6
69693-05A00
.NUT
$2.31¢1 156
1
#7
69672-00B20
.CONNECTOR
$8.36¢4 181
1
#8
69686-34200
.O RING
$3.65¢1 825
1
#9
69674-00B20
.CIRCLIP
$4.86¢2 431
1
#10
09139-06221
SCREW (6X16)
$4.38¢2 188
1
#11
69740-06L00
TANK ASSY,RESERVOIR
$41.59¢20 794
1
#12
69667-01H00
.DIAPHRAGM
$8.50¢4 250
1
#13
69669-18K00
.CAP
$19.41¢9 706
1
#14
69689-01H00
.SCREW
$6.00¢3 000
1
#15
69668-01H00
.PLATE, DIAPHRAGM
$8.09¢4 044
1
#16
69730-06L00
HOSE,RR RESERVOIR TANK
$28.84¢14 419
1
#17
09401-12412
CLIP
No Disponible
1
#18
09200-06068
PIN (6X18.2)
$4.84¢2 419
1
#19
08322-0106A
WASHER
$2.39¢1 194
1
#20
04111-2015A
COTTER PIN
$1.59¢794
1
#21
01547-0612A
BOLT
$2.63¢1 313
1
#22
69200-06L20
HOSE ASSY,RR BK MASTER TO UNI
$138.06¢69 031
1
#23
69400-06L20
HOSE ASSY,RR UNIT TO BK CLPR
$142.65¢71 325
1
#24
09360-10042
UNION
$7.57¢3 787
1
#25
09161-10009
WASHER (10X15X1.5)
$2.39¢1 194
1
#26
02142-0616B
SCREW
$2.34¢1 169
1
#27
69243-16G00
GUIDE, REAR BRAKE HOSE
No Disponible
1
#28
61196-44H00
GUIDE, REAR BRAKE HOSE
No Disponible
1
#29
69641-06L00
COVER,REAR MASTER CYLINDER
$42.98¢21 488
1
#30
69273-31J00
CUSHION, REAR BRAKE HOSE
$3.19¢1 594
1
#31
69486-31J00
WASHER, REAR BRAKE HOSE GUIDE
No Disponible
1
#32
69750-06L00
BRACKET,RR RSVR TANK
$10.91¢5 456
1
#33
09139-06192
SCREW (6X25)
$3.80¢1 900
1
