MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

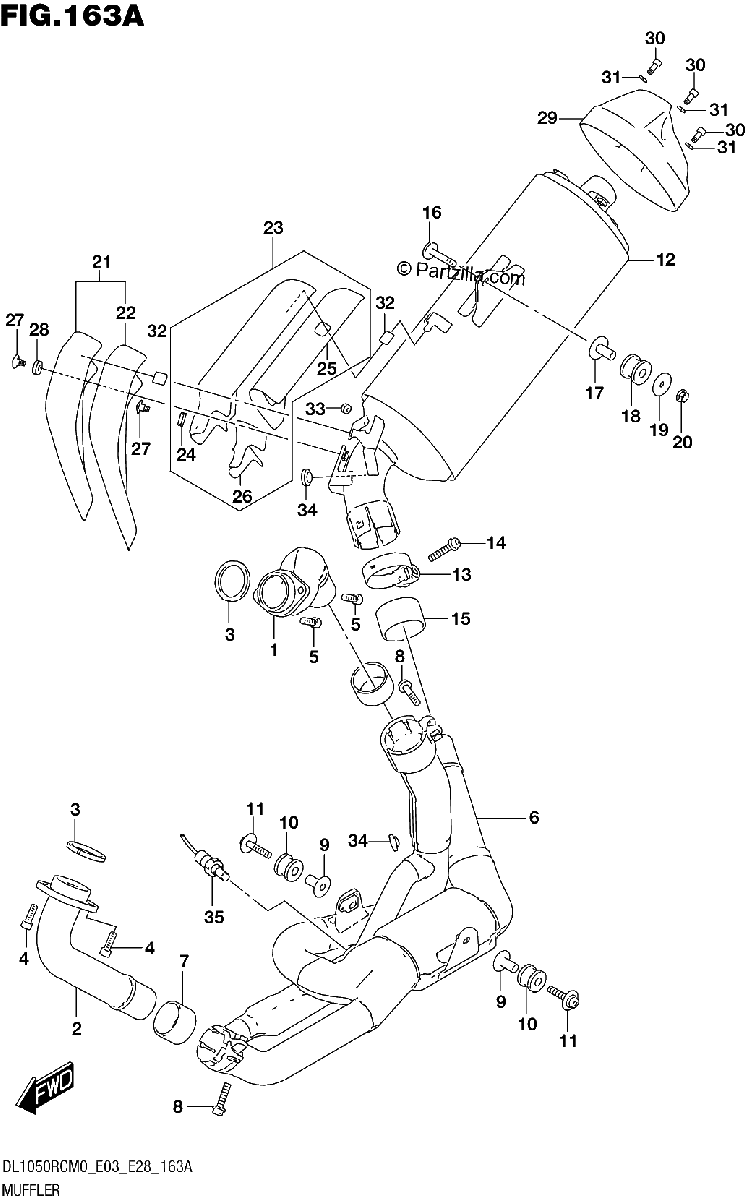

Diagrama de MUFFLER

Repuestos

#1
14150-06L00
PIPE,EXH RR
$218.28¢109 138
1
#2
14160-06L00
PIPE,EXH FR
$142.65¢71 325
1
#3
14181-31D00
.GASKET, EXHAUST PIPE | NOT ILLUSTRATED
$12.60¢6 300
1
#4
09106-08178
BOLT (8X25)
$3.88¢1 938
1
#5
07130-0825A
BOLT
$3.65¢1 825
1
#6
14205-06L00
PIPE,EXH CTR
$1717.75¢858 875
1
#7
14771-42F50
CONNECTOR,JT
$27.77¢13 888
1
#8
09106-08197
BOLT (8X35)
$5.50¢2 750
1
#9
09180-08152
SPACER (8.6X12X24.2)
$6.85¢3 425
1
#10
09320-12077
CUSHION
$14.05¢7 025
1
#11
09116-08176
BOLT,EXH CTR SPRT
$9.54¢4 769
1
#12
14310-06L00-H01
BODY,MUFFLER
$844.98¢422 488
1
#13
14459-31J10
CLAMP, MUFFLER CONNECTOR
$40.06¢20 031
1
#14
09106-08162
BOLT (8X40)
$6.25¢3 125
1
#15
14771-18H00
CONNECTOR, MUFFLER
$41.29¢20 644
1
#16
09106-08195
BOLT (8X45)
$8.10¢4 050
1
#17
09180-08156
SPACER (8.6X12X27.1)
$8.00¢4 000
1
#18
09320-12049
CUSHION
$12.55¢6 275
1
#19
09160-08162
WASHER (8.5X33X1.6)
$2.48¢1 238
1
#20
08316-1008B
NUT
$3.45¢1 725
1
#21
14760-06L00
COVER,MUF FR
$63.98¢31 988
1
#22
14762-06L00
.SHIELD,MUF COV FR HEAT NO.1
$10.48¢5 238
1
#23
14780-06L00
COVER,MUF
$384.15¢192 075
1
#24
09320-08066
CUSHION
$9.69¢4 844
1
#25
14784-06L00
.SHIELD,MUF COV HEAT
$11.69¢5 844
1
#26
14785-06L00
.SHIELD,MUF COV HEAT NO.2
$6.59¢3 294
1
#27
09139-06128
SCREW (6X12)
$6.78¢3 388
1
#28
09320-08066
CUSHION
$9.69¢4 844
1
#29
14791-06L00
MUFFLER COVER
$130.13¢65 063
1
#30
09106-06078
BOLT (6X15)
$4.41¢2 206
1
#31
09160-06055
WASHER (7X12X1)
$2.03¢1 013
1
#32
14795-10FA0
.GROMMET
$6.85¢3 425
1
#33
09320-04013
BUSH (4X12X8)
$2.41¢1 206
1
#34
09321-10018
CUSHION
$5.46¢2 731
1
#35
18213-04K00
SENSOR, OXYGEN
$422.21¢211 106
1
