EVAP SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

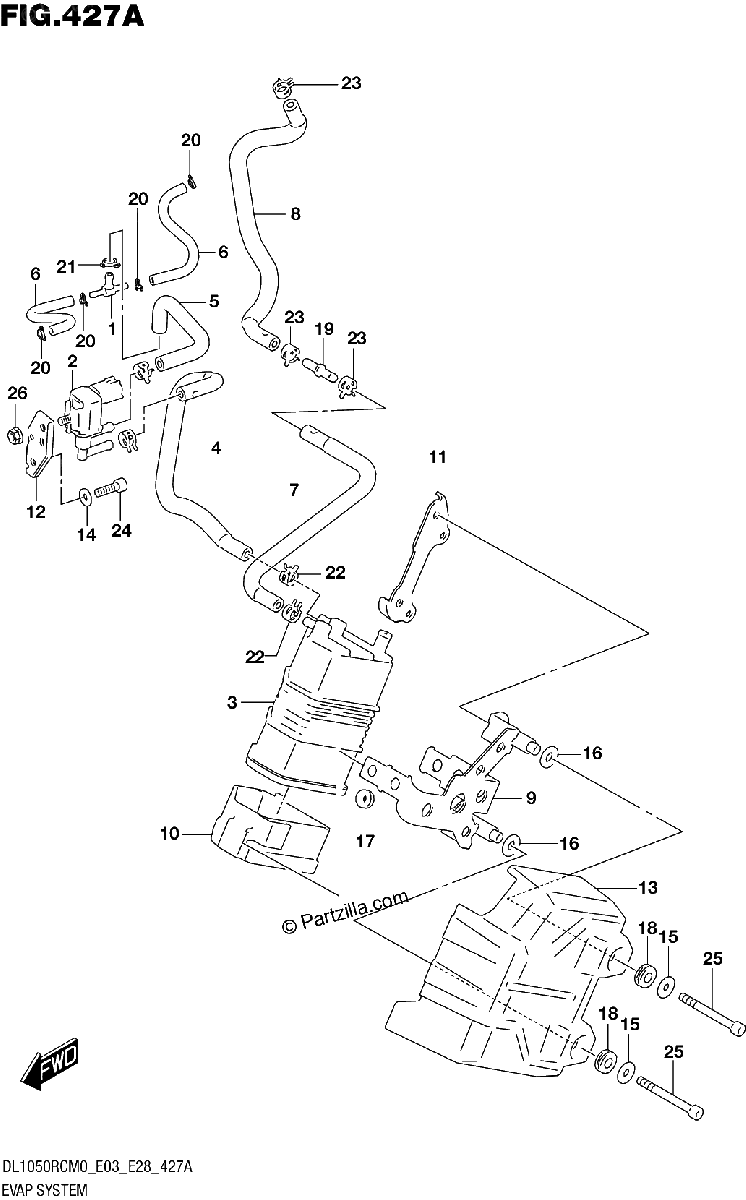

Diagrama de EVAP SYSTEM

Repuestos

#1
13685-06L00
JOINT,3 WAY
$9.74¢4 870
1
#2
18114-74P00
VALVE,CANISTER PURGE
$138.00¢69 000
1
#3
18560-04K01
CANISTER ASSY,CHARCOAL
$133.08¢66 539
1
#4
18561-06L00
HOSE,CSTR PURGE NO.1
$35.91¢17 957
1
#5
18561-06L10
HOSE,CSTR PURGE NO.2
$15.87¢7 935
1
#6
18562-06L00
HOSE,CSTR PURGE NO.3
$20.55¢10 275
1
#7
18563-06L10
HOSE,CSTR SURGE NO.2
$27.75¢13 875
1
#8
18563-06L00
HOSE,CSTR SURGE NO.1
$34.81¢17 405
1
#9
18572-06L00
BRACKET,CANISTER NO.1
$14.72¢7 360
1
#10
18572-13K00
CUSHION, CANISTER
No Disponible
1
#11
18573-06L00
BRACKET,CANISTER NO.2
$9.64¢4 819
1
#12
18575-06L00
BRACKET,PURGE VALVE
$5.96¢2 978
1
#13
18576-06L00
COVER,CANISTER
$37.47¢18 733
1
#14
09160-06125
WASHER (6.5X14X1.6)
$2.27¢1 133
1
#15
09160-06151
WASHER (6.5X18X1)
$2.32¢1 162
1
#16
09160-08114
WASHER (8.5X18X1.6)
$2.66¢1 328
1
#17
09320-06016
CUSHION
$2.54¢1 271
1
#18
09320-08051
CUSHION
$8.91¢4 456
1
#19
09367-06009
JOINT
No Disponible
1
#20
09401-06101
CLIP
$2.47¢1 236
1
#21
09401-10401
CLIP
$1.74¢868
1
#22
09401-10409
CLIP
$2.74¢1 368
1
#23
09401-11413
CLIP
$2.69¢1 346
1
#24
07130-0620A
BOLT
$2.99¢1 495
1
#25
07130-0660B
.BOLT
$5.66¢2 829
1
#26
08316-1006A
NUT
$2.62¢1 311
1
