CYLINDER HEAD FRONT DL1050RQ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

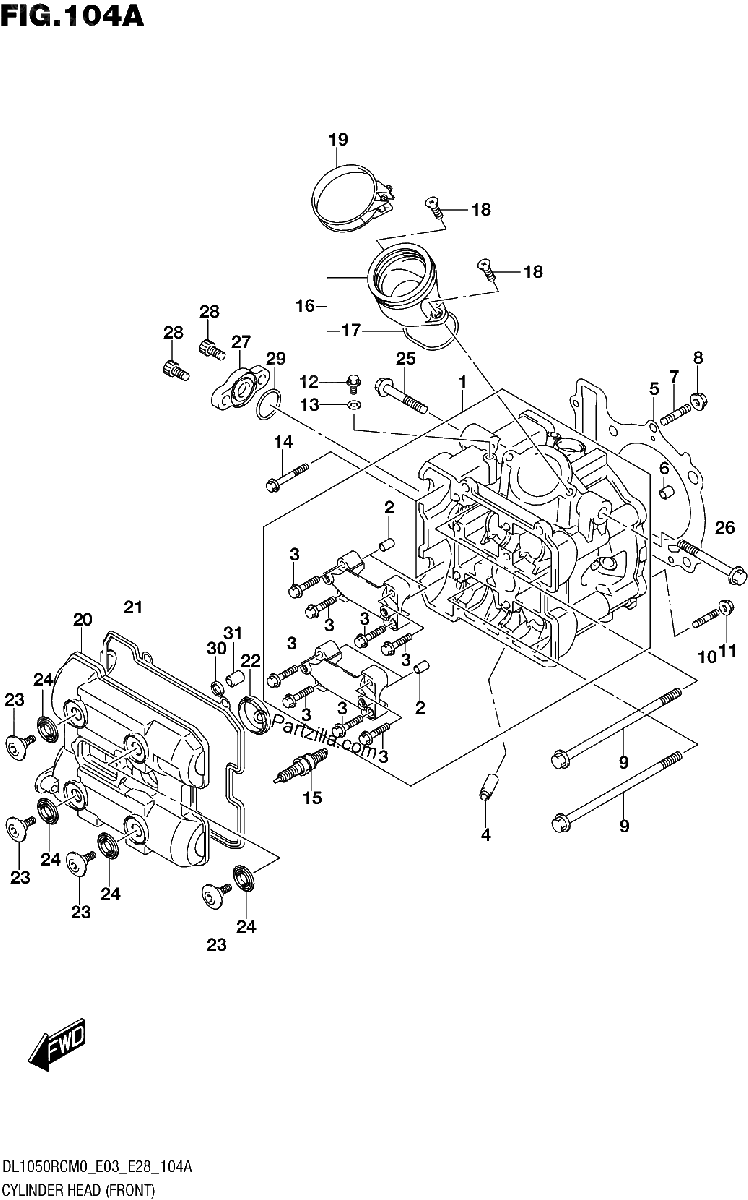

Diagrama de CYLINDER HEAD FRONT DL1050RQ

Repuestos

#1
11100-31J20
HEAD ASSY,CYLINDER FRONT
$1125.76¢562 879
1
#2
09206-08001
.PIN (8X11)
$2.12¢1 058
1
#3
09103-06266
.BOLT (6X40)
$2.55¢1 277
1
#4
11115-32E70
GUIDE, VALVE (OS:0.3) | OPT
$48.73¢24 363
1
#5
11141-31J00
GASKET, CYLINDER HEAD
$64.80¢32 401
1
#6
04211-13189
PIN
$2.62¢1 311
1
#7
09108-08143
STUD BOLT
$4.58¢2 289
1
#8
08316-1008B
NUT
$3.17¢1 587
1
#9
11117-33H00
BOLT (10X175)
$12.19¢6 095
1
#10
09108-06096
STUD BOLT
$1.44¢719
1
#11
08316-1006B
NUT
$2.99¢1 495
1
#12
01550-0612A
BOLT
$2.36¢1 179
1
#13
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#14
09103-06220
BOLT (6X60)
$2.99¢1 495
1
#15
09482-00635
SPARK PLUG (LMAR8BI-9) | NGK
$26.08¢13 041
1
#16
13101-06L00
PIPE ASSY,INTAKE FRONT
$74.77¢37 387
1
#17
09280-55005
.O RING (D:2.4,ID:55.6)
$7.05¢3 525
1
#18
02122-0616B
SCREW
$2.37¢1 185
1
#19
13826-22H00
.CLAMP
$5.76¢2 881
1
#20
11171-06L00
COVER,CYLINDER HEAD FRONT
$344.10¢172 052
1
#21
11173-02F00
GASKET, CYLINDER HEAD COVER
$40.37¢20 183
1
#22
11178-17E00
GASKET, CYLINDER HEAD COVER
$7.29¢3 645
1
#23
09106-07021
BOLT (7X17.5)
$4.88¢2 438
1
#24
11191-27E00
WASHER
$4.46¢2 231
1
#25
01550-1050A
BOLT | RH
$3.89¢1 943
1
#26
01550-1070A
BOLT | LH
$4.48¢2 242
1
#27
11134-31J10
COVER,CYL HEAD NO.2
$29.04¢14 519
1
#28
09106-06075
BOLT (6X12)
$2.99¢1 495
1
#29
09280-19005
O RING (D:2.4,ID:19)
$2.82¢1 409
1
#30
11182-35F10
GASKET, 2ND AIR PASSAGE
$4.93¢2 467
1
#31
09206-10016
PIN (8.2X10X13)
$8.82¢4 410
1
