CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

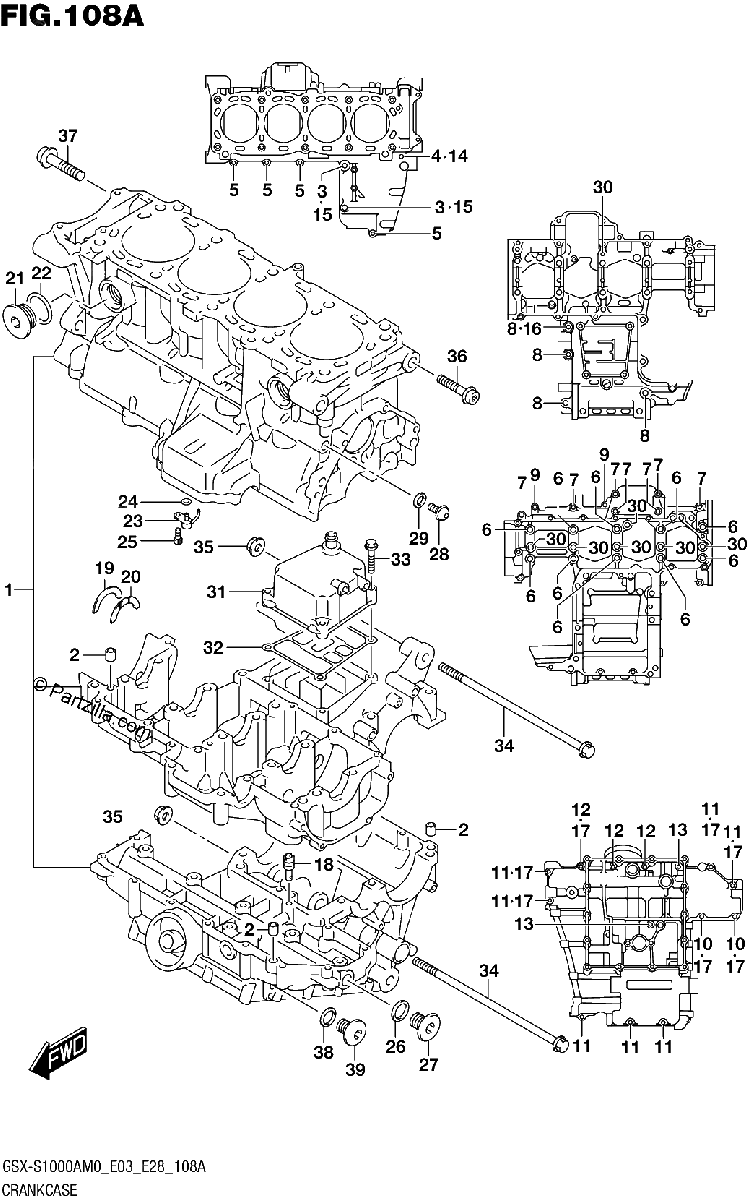

Diagrama de CRANKCASE

Repuestos

#1
11301-04850
CRANKCASE SET
$5311.13¢2 655 563
1
#2
11319-33E50
.PIN, CRANKCASE
$6.52¢3 262
1
#3
09106-08198
BOLT (8X120)
No Disponible
1
#4
01547-0680A
.BOLT
$4.31¢2 156
1
#5
01547-0630A
BOLT
$3.01¢1 506
1
#6
01547-0640A
.BOLT
$3.01¢1 506
1
#7
01547-0660A
.BOLT
$3.65¢1 825
1
#8
01547-0670A
.BOLT
$3.65¢1 825
1
#9
09103-09012
.BOLT (9X95)
$10.30¢5 150
1
#10
09103-08339
BOLT (8X55)
$4.16¢2 081
1
#11
07120-0865A
.BOLT
$6.25¢3 125
1
#12
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#13
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#14
09493-28012
JET (140)
$22.15¢11 075
1
#17
11318-35F00
.PLUG, WATER JACKET
$22.65¢11 325
1
#18
09280-20002
.O RING (D:3.1,ID:19.4)
$2.49¢1 244
1
#19
11390-21H01
JET, PISTON COOLING
$58.31¢29 156
1
#20
09280-13004
.O RING (D:1.9,ID:13)
$2.85¢1 425
1
#21
09280-04004
O RING (D:1.2,ID:4)
$2.21¢1 106
1
#22
09106-06075
BOLT (6X12)
$3.25¢1 625
1
#23
09168-16002
GASKET (16X22X2)
$2.46¢1 231
1
#24
09248-16013
PLUG
$5.74¢2 869
1
#25
09248-10010
PLUG (10X10)
$4.97¢2 488
1
#26
09168-10002
GASKET (10X14X3.6)
$2.48¢1 238
1
#27
09280-08012
O RING (D:1.9,ID:7.8)
$4.33¢2 163
1
#28
11370-04K00
COVER, BREATHER
No Disponible
1
#29
11484-35F00
GASKET, BREATHER COVER
$5.90¢2 950
1
#30
01547-0630A
BOLT
$3.01¢1 506
1
#31
09103-10205
BOLT (10X225)
$25.63¢12 813
1
#32
09159-10115
NUT
$4.19¢2 094
1
#33
09106-10069
BOLT (10X45)
$4.97¢2 488
1
#34
09106-10070
BOLT (10X55)
$4.97¢2 488
1
#35
09168-14002
GASKET (13.8X18.8X4.8)
$3.44¢1 719
1
#36
09248-14011
PLUG (14x12)
$3.65¢1 825
1
#37
11281-44G00
PIPE, OIL GALLERY
$18.69¢9 344
1
#15-1
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
1
#15-2
12228-48B00-0B0
.BEARING, THRUST LH (BROWN)
$15.60¢7 800
1
#15-3
12228-48B00-0C0
BEARING, THRUST LH (RED)
$15.34¢7 669
1
#15-4
12228-48B00-0D0
.BEARING, THRUST LH (YELLOW)
$15.90¢7 950
1
#16-1
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
1
#16-2
12228-48B00-0F0
BEARING, THRUST LH (BLUE)
$15.90¢7 950
1
#16-3
12228-48B00-0G0
BEARING, THRUST LH (ORANGE)
$15.90¢7 950
1
#16-4
12228-48B00-0H0
BEARING, THRUST LH (BLACK)
$11.84¢5 919
1
