TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

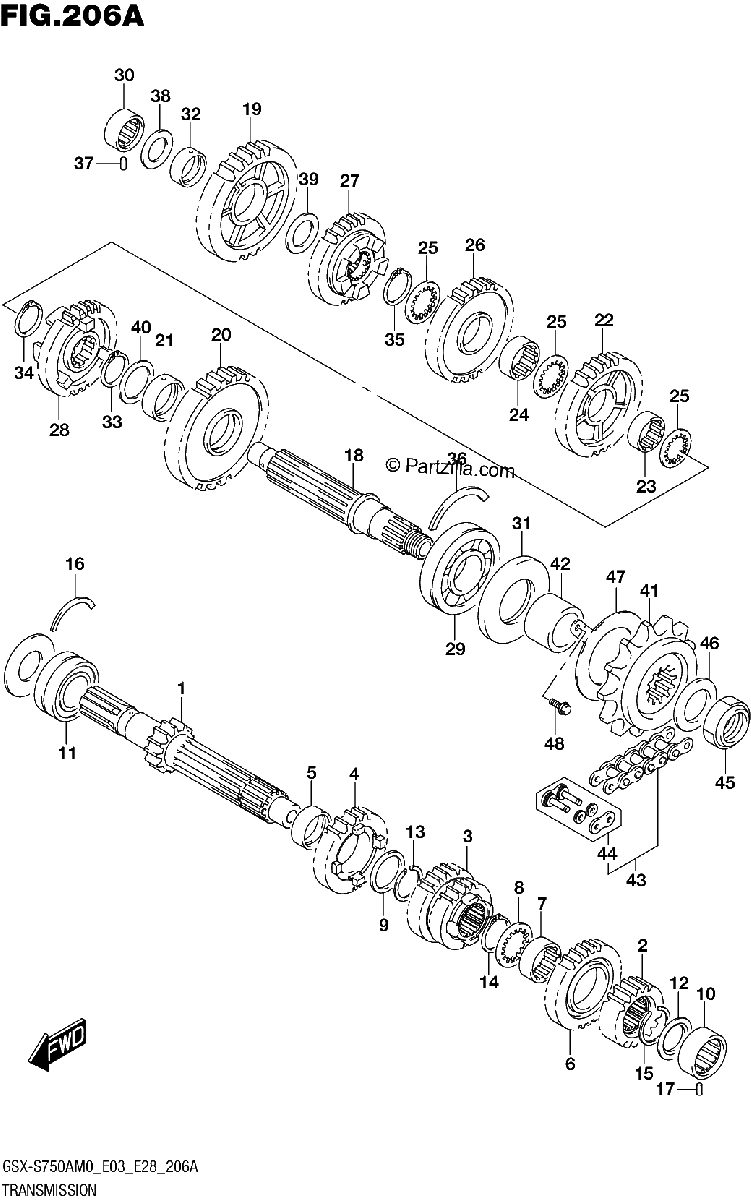

Diagrama de TRANSMISSION

Repuestos

#1
24120-35F30
SHAFT, COUNTER (NT:14)
No Disponible
1
#2
24221-35F00
GEAR, 2ND DRIVE (NT:19)
$158.60¢79 300
1
#3
24231-35F01
GEAR, 3RD 4TH DRIVE
$190.03¢95 013
1
#4
24251-35F30
GEAR, 5TH DRIVE (NT:23)
$163.91¢81 956
1
#5
24252-35F00
BUSH 5TH DRIVE GEAR
$33.35¢16 675
1
#6
24261-35F30
GEAR, 6TH DRIVE (NT:27)
$163.91¢81 956
1
#7
24262-35F10
BUSH, 6TH DRIVE GEAR
$38.75¢19 375
1
#8
09167-27003
LOCK WASHER
$8.91¢4 456
1
#9
09181-27014
SHIM (27X36X2.5)
$8.29¢4 144
1
#10
09263-20087
BEARING (20X34X13.5)
$65.85¢32 925
1
#11
09267-25013
BEARING (25X52X20.6) | RH
$139.56¢69 781
1
#12
09285-20006
OIL SEAL (20X31.2X2.7)
$7.66¢3 831
1
#13
09380-27006
CIRCLIP
$3.55¢1 775
1
#14
09380-27006
CIRCLIP
$3.55¢1 775
1
#15
09380-27004
CIRCLIP
$4.34¢2 169
1
#16
09390-58001
C RING | RH
$4.50¢2 250
1
#17
09261-06003
PIN (6X10)
$1.94¢969
1
#18
24131-35F30
SHAFT, DRIVE
No Disponible
1
#19
24311-35F20
GEAR, 1ST DRIVEN (NT:39)
$217.04¢108 519
1
#20
24321-35F11
GEAR, 2ND DRIVEN (NT:39)
$183.54¢91 769
1
#21
24322-35F00
BUSH, 2ND DRIVEN GEAR
$27.85¢13 925
1
#22
24331-35F10
GEAR, 3RD DRIVEN (NT:37)
$225.31¢112 656
1
#23
24332-35F00
BUSH, 4TH DRIVEN GEAR
$38.63¢19 313
1
#24
24332-35F00
BUSH, 4TH DRIVEN GEAR
$38.63¢19 313
1
#25
24333-02F00
WASHER, 3RD 4TH DRIVEN GEAR
$6.13¢3 063
1
#26
24341-35F10
GEAR, 4TH DRIVEN (NT:29)
$230.85¢115 425
1
#27
24351-35F10
GEAR, 5TH DRIVEN (NT:30)
$225.31¢112 656
1
#28
24361-35F30
GEAR, 6TH DRIVEN (NT:31)
No Disponible
1
#29
09262-28025
BEARING (28X70X18) | LH
$197.69¢98 844
1
#30
09263-20087
BEARING (20X34X13.5)
$65.85¢32 925
1
#31
09283-36008
OIL SEAL (34.8X70X6)
$25.02¢12 513
1
#32
09300-22008
BUSH (22X26X9)
$19.46¢9 731
1
#33
09380-27006
CIRCLIP
$3.55¢1 775
1
#34
09380-27006
CIRCLIP
$3.55¢1 775
1
#35
09380-27006
CIRCLIP
$3.55¢1 775
1
#36
09390-70001
C RING | LH
$12.81¢6 406
1
#37
09261-06003
PIN (6X10)
$1.94¢969
1
#38
09181-20251
SHIM (20X34X1)
$3.61¢1 806
1
#39
09181-22223
SHIM (22X34X1)
$3.71¢1 856
1
#40
09160-27008
WASHER (27X36X1)
$4.84¢2 419
1
#41
27510-20A21
SPROCKET,ENGINE
$106.54¢53 269
1
#42
27531-35F01
SPACER, ENGINE SPROCKET
$41.66¢20 831
1
#43
27600-06G40-114
CHAIN ASSY (RK525SM0Z8)
$268.88¢134 438
1
#44
27620-06G40
JOINT SET, CHAIN
$28.50¢14 250
1
#45
09159-20004
NUT
$18.43¢9 213
1
#46
09160-25009
WASHER (25X41X3)
$6.30¢3 150
1
#47
24751-04K00
RETAINER, DRIVE SHAFT OIL SEA
$10.56¢5 281
1
#48
09103-06236
BOLT (6X12)
$3.52¢1 763
1
