UNDER COWLING GSX S750Z GSX S750ZA GSX S750AZ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

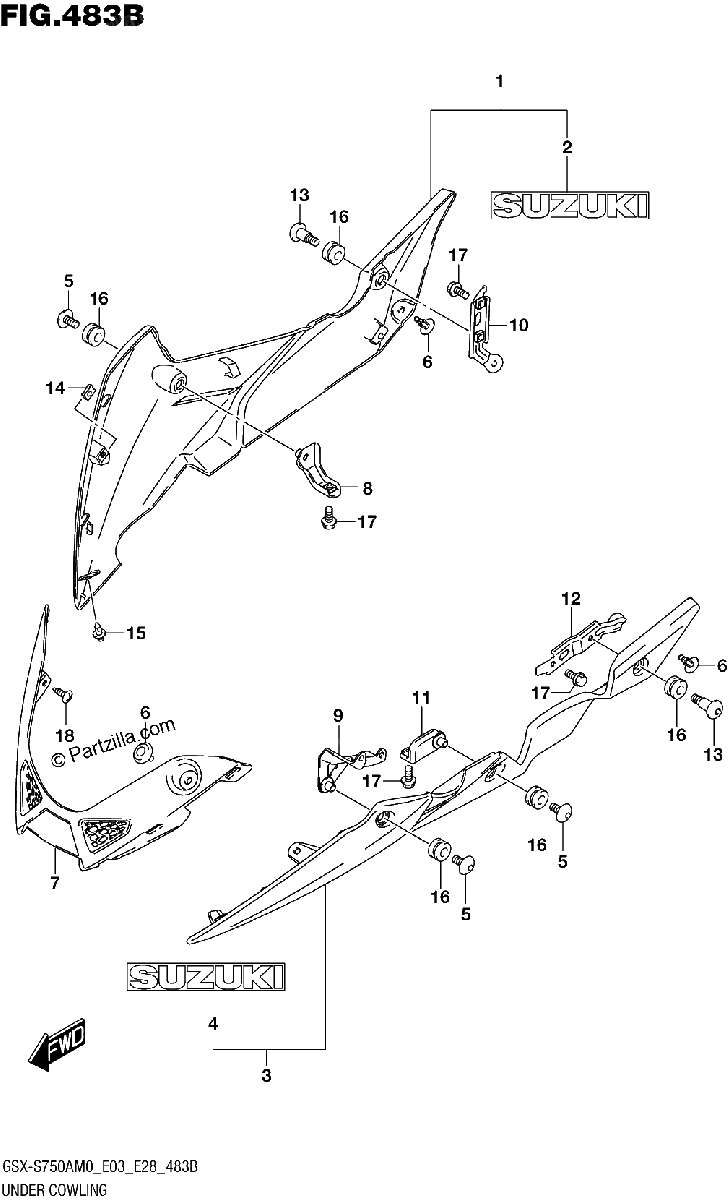

Diagrama de UNDER COWLING GSX S750Z GSX S750ZA GSX S750AZ

Repuestos

#2
68111-47C10-YES
EMBLEM, "SUZUKI" (SILVER) *{FOR YVZ,YSF}*
$23.91¢11 956
1
#4
68111-47C10-YES
EMBLEM, "SUZUKI" (SILVER) *{FOR YVZ,YSF}*
$23.91¢11 956
1
#5
09106-06136
BOLT
$6.56¢3 281
1
#6
94479-35F00
CLIP
$6.70¢3 350
1
#7
94491-13K00
COWLING, UNDER CENTER
$10.46¢5 231
1
#8
94510-13K01
BRACKET, UNDER COWL NO.1 RH
$15.41¢7 706
1
#9
94520-13K00
BRACKET, UNDER COWL NO.1 LH
$18.35¢9 175
1
#10
94530-08J00
BRACKET, UNDER COWL RR RH
$14.40¢7 200
1
#1-1
94470-13K00-46X
COWLING,UNDER RH (BLACK) *{BODY COLOR:YSF,YWW}*
$324.85¢162 425
1
#11
94530-13K00
BRACKET, UNDER COWL NO.2 LH
$14.40¢7 200
1
#1-2
94470-13K00-YYG
COWLING,UNDER RH (RED) *{BODY COLOR:AGT}*
$400.16¢200 081
1
#12
94540-08J00
BRACKET, UNDER COWL RR LH
$14.40¢7 200
1
#13
09139-06190
BOLT (6X20)
$4.91¢2 456
1
#14
09148-05038
NUT
$2.56¢1 281
1
#15
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#16
09320-09016
CUSHION
$2.56¢1 281
1
#17
01550-0612A
BOLT
$2.56¢1 281
1
#18
03541-0516B
SCREW
$2.30¢1 150
1
#3-1
94480-13K00-46X
COWLING,UNDER LH (BLACK) *{BODY COLOR:YSF,YWW}*
No Disponible
1
#3-2
94480-13K00-YYG
COWLING,UNDER LH (RED) *{BODY COLOR:AGT}*
$333.06¢166 531
1
