FUEL TANK GSX S750A E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

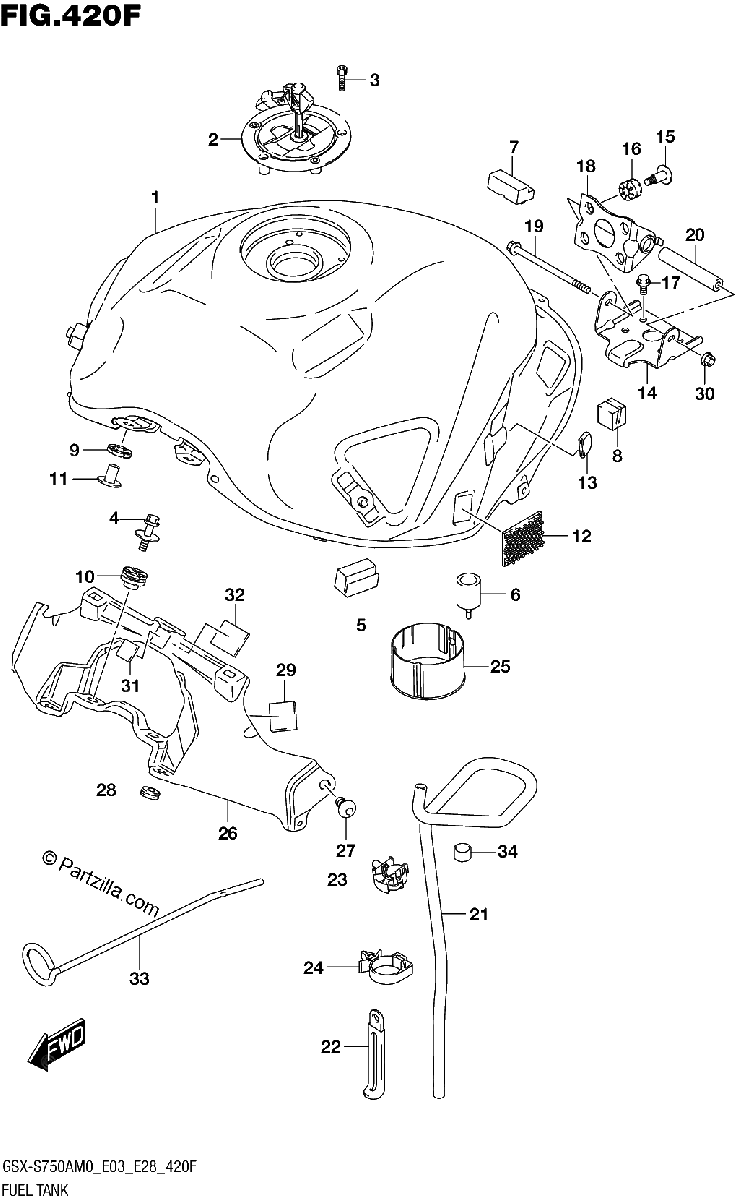

Diagrama de FUEL TANK GSX S750A E33

Repuestos

#1
44100-13K00-YKV
TANK ASSY, FUEL (BLACK)
$1389.46¢694 732
1
#2
44200-17820
CAP SET, FUEL TANK
$268.35¢134 176
1
#3
44244-11J00
BOLT
$4.51¢2 254
1
#4
09116-06172
BOLT (6X30)
$2.99¢1 495
1
#5
44541-08J00
CUSHION, FUEL TANK SIDE
$6.76¢3 381
1
#6
44542-41G00
CUSHION, FUEL TANK REAR
$8.44¢4 220
1
#7
44543-13K00
CUSHION, FUEL TANK REAR
$12.51¢6 256
1
#8
44544-13K00
CUSHION, FUEL TANK REAR
$12.51¢6 256
1
#9
44511-13K00
CUSHION, FUEL TANK FRONT LWR
$7.44¢3 720
1
#10
44512-13K00
CUSHION, FUEL TANK FRONT UPR
$18.38¢9 189
1
#11
44512-17K00
SPACER, FUEL TANK FRONT
$7.44¢3 720
1
#12
44572-13G00
FASTENER
$12.13¢6 066
1
#13
44542-08J00
CUSHION, TANK COVER SIDE
$4.54¢2 271
1
#14
44551-13K00
BRACKET, FUEL TANK REAR NO.2
No Disponible
1
#15
09139-06203
SCREW, FUEL TANK REAR BRKT
No Disponible
1
#16
09320-08089
CUSHION
No Disponible
1
#17
01550-0612A
BOLT
$2.36¢1 179
1
#18
44530-04K00
BRACKET, FUEL TANK REAR
No Disponible
1
#19
09106-06135
BOLT
$6.67¢3 335
1
#20
44561-18G00
SPACER, FUEL TANK REAR
$18.61¢9 304
1
#21
44423-13K00
HOSE, FUEL TANK DRAIN
$33.67¢16 836
1
#22
09404-06433
CLAMP (L:80)
$2.10¢1 052
1
#23
09403-18307
CLAMP
$3.77¢1 886
1
#24
09403-18409
CLAMP
$2.67¢1 334
1
#25
44121-17K01
VESSEL,FUEL TANK INNER
$20.32¢10 160
1
#26
44521-13K00
BRACKET, FUEL TANK FRONT
$54.76¢27 381
1
#27
09113-06013
SCREW (6X16)
$2.70¢1 351
1
#28
09320-06504
CUSHION
$5.36¢2 680
1
#29
44556-33H00
CUSHION
$8.41¢4 203
1
#30
08319-3106A
.NUT
$2.42¢1 208
1
#31
94429-13E00
CUSHION, CABLE GUIDE
$3.45¢1 725
1
#32
44572-13G00
FASTENER
$12.13¢6 066
1
#33
44574-16G00
STAY, FUEL TANK
$33.20¢16 600
1
#34
09352-11153-600
.HOSE (11X15X600) | L:600-430
$14.11¢7 055
1
