CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

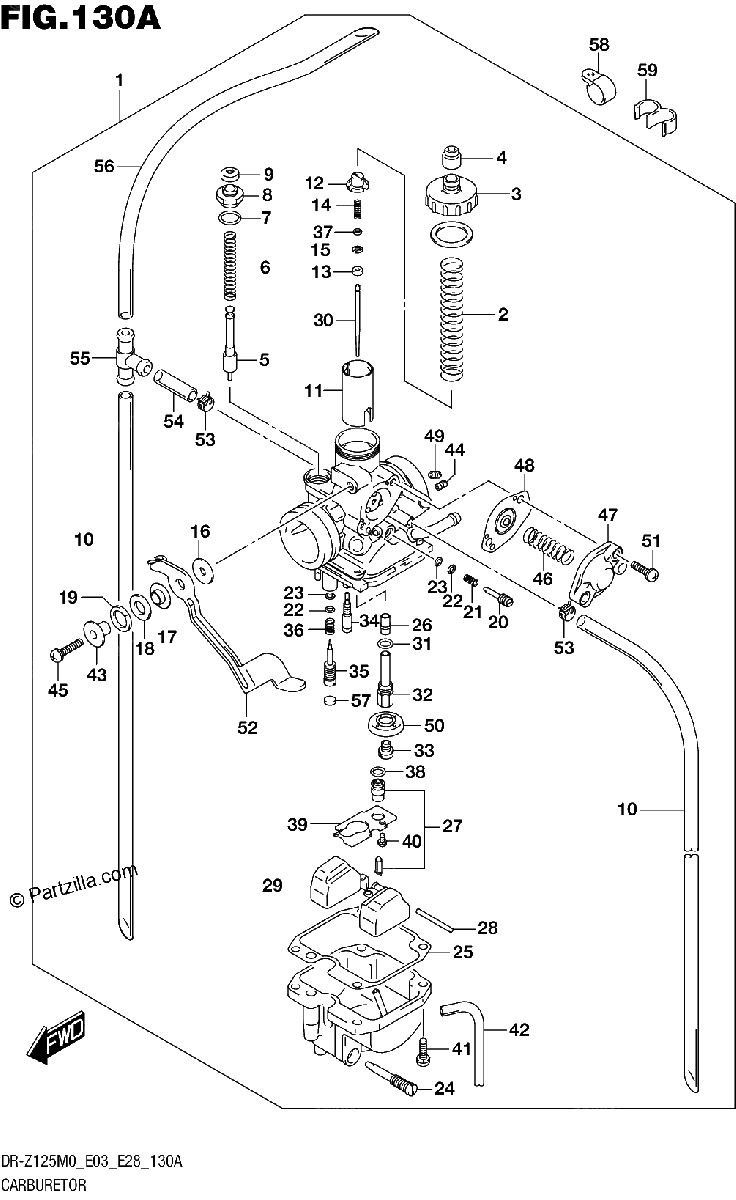

Diagrama de CARBURETOR

Repuestos

#1
13200-08G01
CARBURETOR ASSY
$288.01¢144 006
1
#2
13573-08G00
.SPRING
$13.59¢6 794
1
#3
13261-08G00
.MIXING CAP ASSY
$43.34¢21 669
1
#4
13681-04010
.CAP
$5.88¢2 938
1
#5
13411-05320
.PLUNGER ASSY
$36.16¢18 081
1
#6
13417-08G00
.SPRING
$7.50¢3 750
1
#7
13278-47090
.O RING
$2.46¢1 231
1
#8
13418-44080
.HOLDER, GUIDE
$12.26¢6 131
1
#9
13682-31210
.CAP, STARTER VALVE
$5.21¢2 606
1
#10
13686-08G20
.HOSE (5X8X475)
$14.25¢7 125
1
#11
13551-08G00
.PISTON VALVE
$54.07¢27 037
1
#12
13389-08G00
.HOLDER
$9.94¢4 969
1
#13
13387-47010
.RING
$8.86¢4 431
1
#14
13481-33E00
.SPRING
$4.54¢2 269
1
#15
13394-40D20
.E RING
$7.35¢3 675
1
#16
13421-05320
.WASHER
$4.21¢2 106
1
#17
13432-05320
.RING
$5.75¢2 875
1
#18
13589-47070
.WASHER
$2.40¢1 200
1
#19
08321-01087
.WASHER
$2.39¢1 194
1
#20
13267-08G00
.ADJUST SCREW
$18.46¢9 231
1
#21
13268-08G00
.SPRING
$6.60¢3 300
1
#22
13291-29900
.WASHER
$2.34¢1 169
1
#23
13295-29900
.O RING
$5.17¢2 588
1
#24
13247-08G00
.SCREW
$8.22¢4 113
1
#25
13251-29B00
.GASKET
$9.18¢4 588
1
#26
13341-08G00
.NEEDLE, JET
$56.22¢28 112
1
#27
13370-08G00
.VALVE ASSY, NEEDLE
$80.38¢40 188
1
#28
13254-01010
.PIN, FLOAT
$4.44¢2 219
1
#29
13240-08G00
.FLOAT ASSY
$56.28¢28 138
1
#30
13383-08G00
.JET, NEEDLE (5HGM74)
$25.40¢12 700
1
#31
13246-43010
.O RING
$5.17¢2 588
1
#32
13385-08G00
.JET HOLDER
$47.53¢23 763
1
#33
09491-20012
.JET, MAIN (102.5)
$14.94¢7 469
1
#34
09492-17017
.JET, PILOT (17.5)
$35.35¢17 675
1
#35
13279-08G00
.ADJUSTER
$20.04¢10 019
1
#36
13268-47070
.SPRING
$5.17¢2 588
1
#37
13382-08G00
.WASHER
$6.10¢3 050
1
#38
13374-46710
.O RING
$5.34¢2 669
1
#39
13259-29B10
.PLATE
No Disponible
1
#40
13601-03068
.SCREW
$3.98¢1 988
1
#41
13601-04148
.SCREW
$3.65¢1 825
1
#42
13684-40A00
.HOSE | L:650-400
$11.76¢5 881
1
#43
13424-05320
.RING
$8.28¢4 138
1
#44
09493-85001
.JET, AIR (85.0)
No Disponible
1
#45
13601-44A10
.SCREW
$5.85¢2 925
1
#46
13481-08G00
.SPRING
$6.16¢3 081
1
#47
13502-10F00
.COVER ASSY
$53.59¢26 794
1
#48
13480-10F00
.DIAPHRAGM ASSY
$20.02¢10 013
1
#49
09492-29002
.JET, POWER (145)
No Disponible
1
#50
13387-08G00
.HOLDER
$9.56¢4 781
1
#51
13601-08G00
.SCREW
$5.13¢2 563
1
#52
13413-08G00
.LEVER
$35.84¢17 919
1
#53
13671-08G00
.CLIP
$7.72¢3 863
1
#54
13686-08G00
.HOSE (5X8X25)
$4.03¢2 013
1
#55
13685-48B00
JOINT
$14.90¢7 450
1
#56
13686-08G10
.HOSE (5X8X375)
$11.60¢5 800
1
#57
13281-05A00
.PLUG
$5.49¢2 744
1
#58
09403-22403
CLAMP
No Disponible
1
#59
09408-00033
CLAMP
$3.73¢1 863
1
