RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

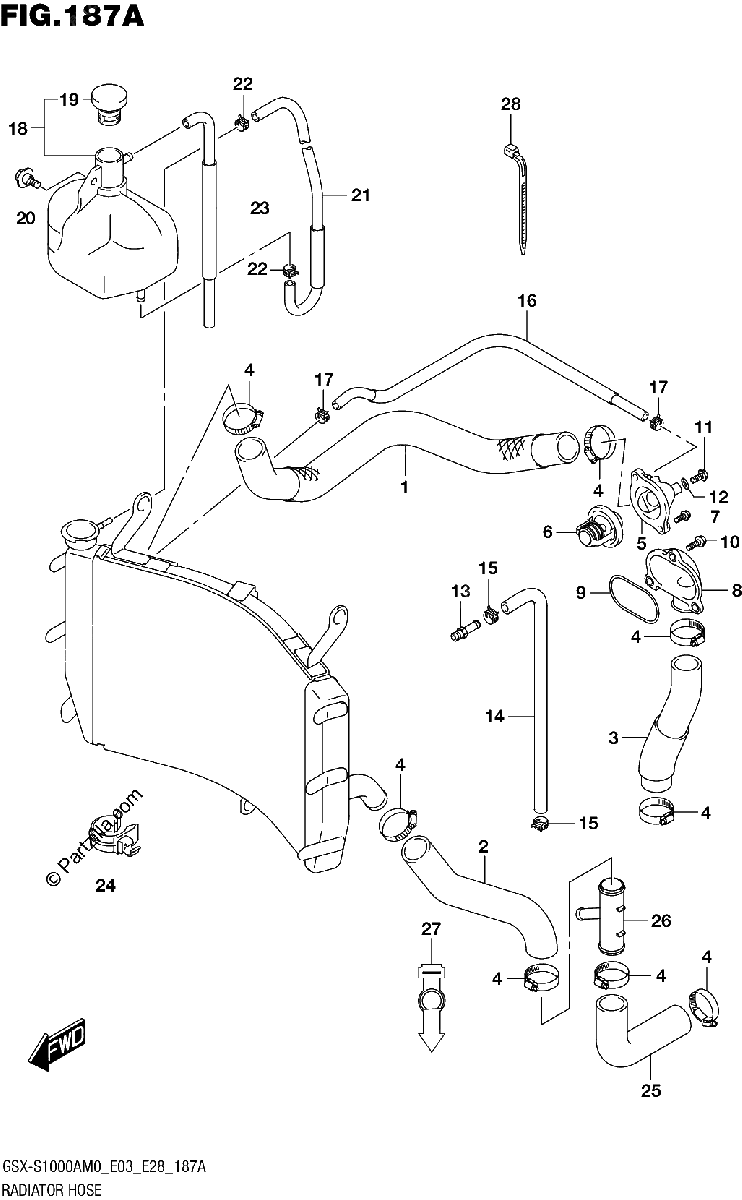

Diagrama de RADIATOR HOSE

Repuestos

#1
17851-04K10
HOSE, RADIATOR INLET
$40.71¢20 355
1
#2
17852-04K00
HOSE, RADIATOR OUTLET
$27.89¢13 944
1
#3
17853-40F10
HOSE, CYLINDER INLET
$26.37¢13 185
1
#4
09402-35501
CLAMP
$10.35¢5 175
1
#5
17661-35F00
COVER, THERMOSTAT
$62.96¢31 481
1
#6
17670-06G61
THERMOSTAT,WATER
$28.27¢14 133
1
#7
01547-0620A
BOLT
$2.42¢1 208
1
#8
17861-33E20
CONNECTOR
$24.75¢12 374
1
#9
17863-33E00
O RING
$4.42¢2 208
1
#10
01547-0620A
BOLT
$2.42¢1 208
1
#11
17568-50F00
BOLT, THERMOSTAT COVER AIR
$6.96¢3 479
1
#12
09168-06026
GASKET (6.4X11.5X0.8)
$3.36¢1 679
1
#13
09362-09011
UNION
$9.07¢4 537
1
#14
17854-04K10
HOSE, WATER BYPASS
$16.02¢8 010
1
#15
09401-12414
CLAMP
$3.58¢1 788
1
#16
17857-04K00
HOSE, WATER AIR BLEED
$24.72¢12 362
1
#17
09401-10409
CLIP
$2.74¢1 368
1
#18
17910-04K00
TANK ASSY, RESERVOIR
$74.27¢37 134
1
#19
17931-31J00
.CAP
$8.95¢4 474
1
#20
09111-06085
BOLT (6X12)
$4.99¢2 496
1
#21
17981-04K01
HOSE, RESERVOIR TANK INLET
No Disponible
1
#22
09401-08411
CLIP
$2.12¢1 058
1
#23
17982-04K00
HOSE, RESERVOIR TANK OVER FLO
No Disponible
1
#24
09408-00321
CLAMP
No Disponible
1
#25
17855-04K00
HOSE, RADIATOR OUTLET NO.2
$25.50¢12 748
1
#26
17881-04K00
PIPE, WATER HOSE JOINT
$5.35¢2 674
1
#27
17891-04K00
BAND, WATER HOSE
No Disponible
1
#28
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
