FUEL TANK E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

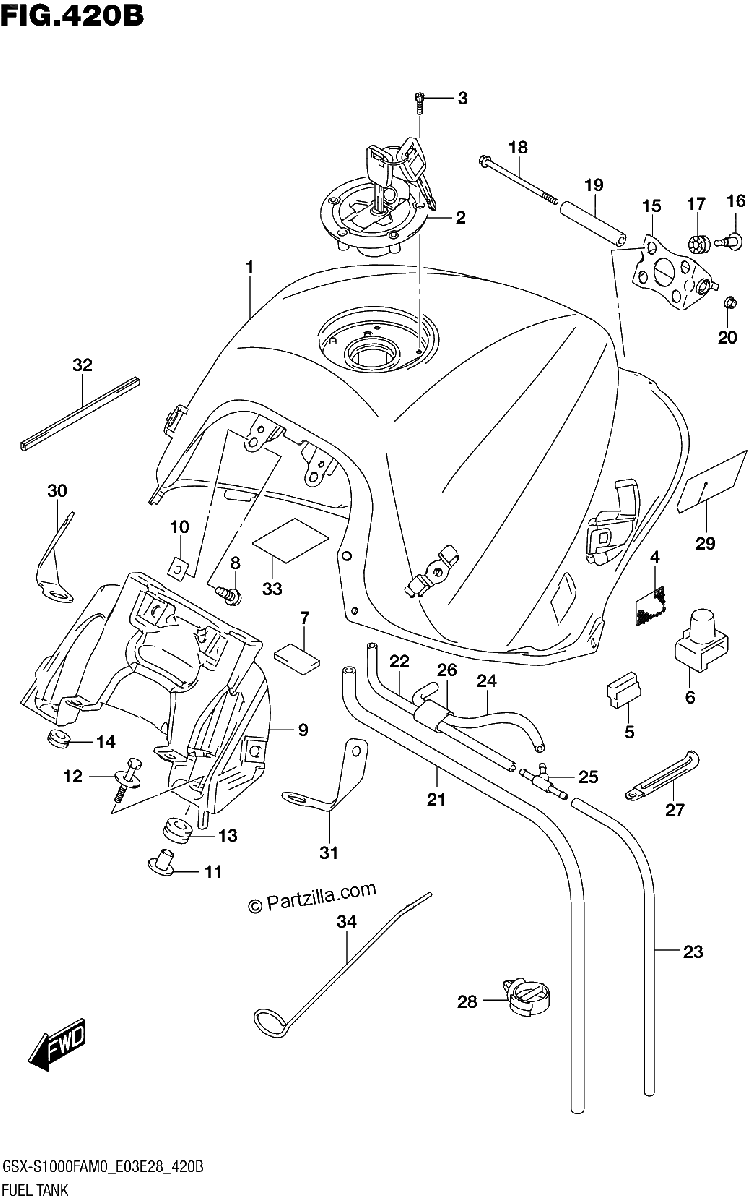

Diagrama de FUEL TANK E28

Repuestos

#1
44100-04K40-YWW
TANK ASSY, FUEL (WHITE)
$1625.71¢812 856
1
#2
44200-17840
CAP SET,FUEL TANK FILLER
$222.63¢111 313
1
#3
44244-11J00
BOLT
$4.90¢2 450
1
#4
44572-13G00
FASTENER
$13.19¢6 594
1
#5
44541-41G00
CUSHION, SIDE
$7.13¢3 563
1
#6
44542-04K00
CUSHION, REAR
$11.96¢5 981
1
#7
33652-21G10
CUSHION, FUEL TANK INNER
$3.65¢1 825
1
#8
44543-04K00
SCREW, BRACKET FRONT
No Disponible
1
#9
44521-04K00
BRACKET, FUEL TANK FRONT
$128.22¢64 113
1
#10
44523-47H00
NUT(M6)
$15.90¢7 950
1
#11
44512-04K00
SPACER, FUEL TANK FRONT
$9.54¢4 769
1
#12
09116-06172
BOLT (6X30)
$3.25¢1 625
1
#13
09320-10050
CUSHION
$4.00¢2 000
1
#14
09320-06504
CUSHION
$5.83¢2 913
1
#15
44530-04K00
BRACKET, FUEL TANK REAR
No Disponible
1
#16
09139-06203
SCREW, FUEL TANK REAR BRKT
No Disponible
1
#17
09320-08089
CUSHION
No Disponible
1
#18
09103-06060
BOLT (6X100)
$3.29¢1 644
1
#19
44561-18G00
SPACER, FUEL TANK REAR
$20.23¢10 113
1
#20
09159-06076
NUT
$3.65¢1 825
1
#21
44423-04K01
HOSE,FUEL TANK DRAIN NO.1
No Disponible
1
#22
44424-04K01
HOSE,FUEL TANK BRTHR NO.1
$14.03¢7 013
1
#23
09352-50005-530
HOSE,FUEL TANK BRTHR NO.2
No Disponible
1
#24
44424-15H11
HOSE,FUEL TANK BRTHR NO.3
$18.52¢9 263
1
#25
09367-06007
3 WAY
$4.14¢2 069
1
#26
09352-12164-010
HOSE,BRTHR CLAMP
No Disponible
1
#27
09404-06436
CLAMP (L:80)
No Disponible
1
#28
09403-20307
CLAMP
No Disponible
1
#29
44283-06J00
PROTECTOR
$8.25¢4 125
1
#30
44561-04K00
BRACKET, FUEL TANK FRONT, RH
$12.78¢6 388
1
#31
44571-04K00
BRACKET, FUEL TANK FRONT, LH
$12.78¢6 388
1
#32
44552-24B00
MOLDING, FUEL TANK
$17.27¢8 638
1
#33
44281-04K00
CUSHION, FUEL TANK
$7.28¢3 638
1
#34
44560-23H00
STAY, FUEL TANK *{OPT}*
$60.69¢30 344
1
