FRAME COVER GSX S750Z GSX S750ZA GSX S750AZ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

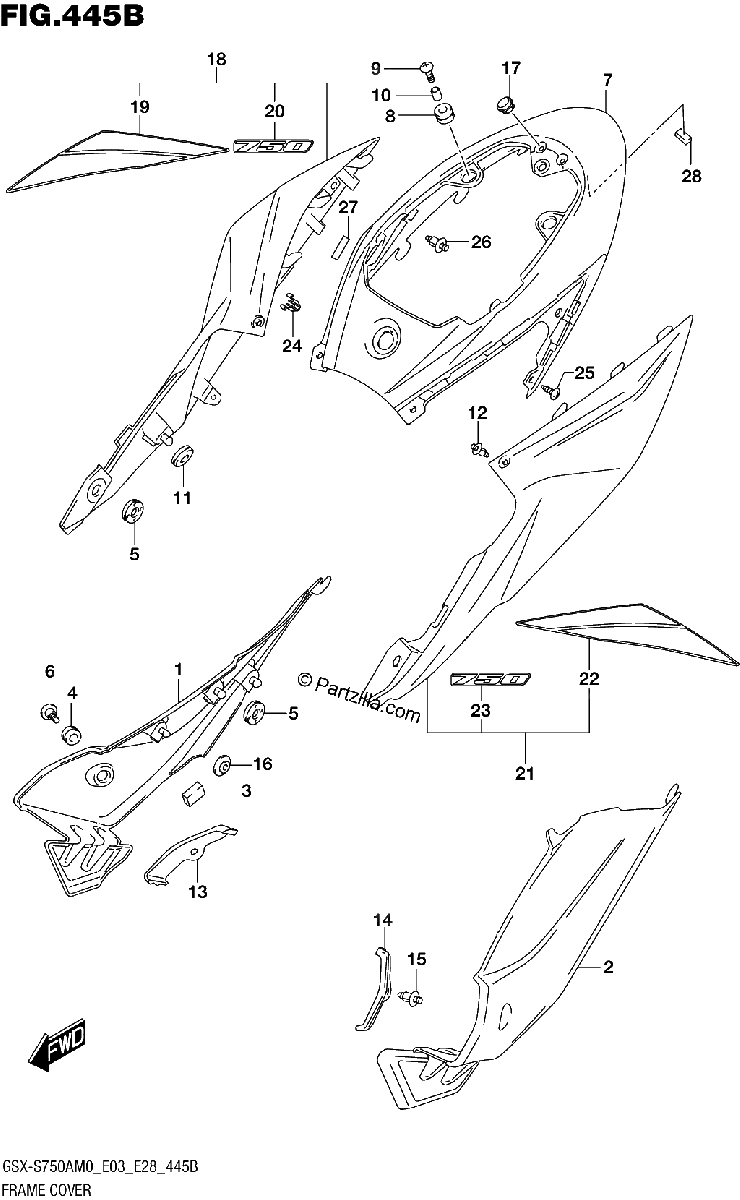

Diagrama de FRAME COVER GSX S750Z GSX S750ZA GSX S750AZ

Repuestos

#1
47511-13K00
COVER, FRAME FRONT RH
$180.86¢90 430
1
#2
47611-13K00
COVER, FRAME FRONT LH
$109.23¢54 613
1
#3
94422-06G00
CUSHION
$7.22¢3 611
1
#4
09320-09016
CUSHION
$2.36¢1 179
1
#5
09320-08028
CUSHION
$3.36¢1 679
1
#6
47118-08J00
SCREW, FRAME COVER FRONT
$5.40¢2 702
1
#8
47312-37H20
CUSHION,FRAME COVER CENTER
$3.05¢1 524
1
#9
09136-06105
SCREW (6X20)
$2.38¢1 190
1
#10
09180-06283
SPACER (6.5X10X7)
$2.27¢1 133
1
#11
09320-08018
CUSHION | LH
$3.36¢1 679
1
#12
09409-06314
CLIP
$3.31¢1 656
1
#13
47711-08J00
COVER, FRAME TOP RH
$9.14¢4 571
1
#14
47811-08J00
COVER, FRAME TOP LH
$9.14¢4 571
1
#15
09409-07333
CLIP
$2.75¢1 374
1
#16
09320-06026
CUSHION
$4.94¢2 472
1
#17
45148-27J00
CUSHION, SEAT MOUNT
$21.39¢10 695
1
#24
09409-08326
CLIP
$2.93¢1 466
1
#25
03541-0512B
SCREW
$2.12¢1 058
1
#26
09409-07333
CLIP
$2.75¢1 374
1
#27
44894-24A00
.CUSHION
$2.13¢1 064
1
#28
63211-26G00
CUSHION, LIC
$12.11¢6 055
1
#7-1
47311-13K00-YKV
COVER, FRAME CENTER (BLACK)
$272.58¢136 292
1
#7-2
47311-13K00-YVB
COVER,FRAME CENTER (BLACK) *{BODY COLOR:AGT}*
$249.95¢124 976
1
#18-1
47110-13K50-YSF
COVER,FRAME RH (BLUE) *{BODY COLOR:YSF}*
No Disponible
1
#18-2
47110-13K50-YWW
COVER,FRAME RH (WHITE) *{BODY COLOR:YWW}*
No Disponible
1
#18-3
47110-13K50-YVB
COVER,FRAME RH (BLACK) *{BODY COLOR:AGT}*
$157.80¢78 902
1
#19-1
68135-13K60-A3F
.TAPE,FRAME COVER RH (WHITE/B UE/YELLOW) *{BODY COLOR:YSF}*
No Disponible
1
#19-2
68135-13K60-BVC
.TAPE,FRAME COVER RH (BLUE/BL CK/WHITE) *{BODY COLOR:YWW}*
No Disponible
1
#19-3
68135-13K60-B4S
.TAPE,FRAME COVER RH *{BODY COLOR:AGT}*
No Disponible
1
#20-1
68161-13K00-AGQ
.EMBLEM,"750" RH (BLUE/WHITE) *{BODY COLOR:YSF}*
No Disponible
1
#20-2
68161-13K00-AR9
.EMBLEM,"750" RH (WHITE/BLACK *{BODY COLOR:YWW}*
$16.27¢8 136
1
#20-3
68161-13K00-BD7
.EMBLEM,"750" RH (GRAY/BLACK) *{BODY COLOR:AGT}*
No Disponible
1
#21-1
47210-13K50-YSF
COVER,FRAME LH (BLUE) *{BODY COLOR:YSF}*
No Disponible
1
#21-2
47210-13K50-YWW
COVER,FRAME LH (WHITE) *{BODY COLOR:YWW}*
No Disponible
1
#21-3
47210-13K50-YVB
COVER,FRAME LH (BLACK) *{BODY COLOR:AGT}*
$157.80¢78 902
1
#22-1
68145-13K60-A3F
.TAPE,FRAME COVER LH (WHITE/B UE/YELLOW) *{BODY COLOR:YSF}*
No Disponible
1
#22-2
68145-13K60-BVC
.TAPE,FRAME COVER LH (BLUE/BL CK/WHITE) *{BODY COLOR:YWW}*
No Disponible
1
#22-3
68145-13K60-B4F
.TAPE,FRAME COVER LH *{BODY COLOR:AGT}*
No Disponible
1
#23-1
68171-13K00-AGQ
.EMBLEM,"750" LH (BLUE/WHITE) *{BODY COLOR:YSF}*
No Disponible
1
#23-2
68171-13K00-AR9
.EMBLEM,"750" LH (WHITE/BLACK *{BODY COLOR:YWW}*
$16.27¢8 136
1
#23-3
68171-13K00-BD7
.EMBLEM,"750" LH (GRAY/BLACK) *{BODY COLOR:AGT}*
No Disponible
1
