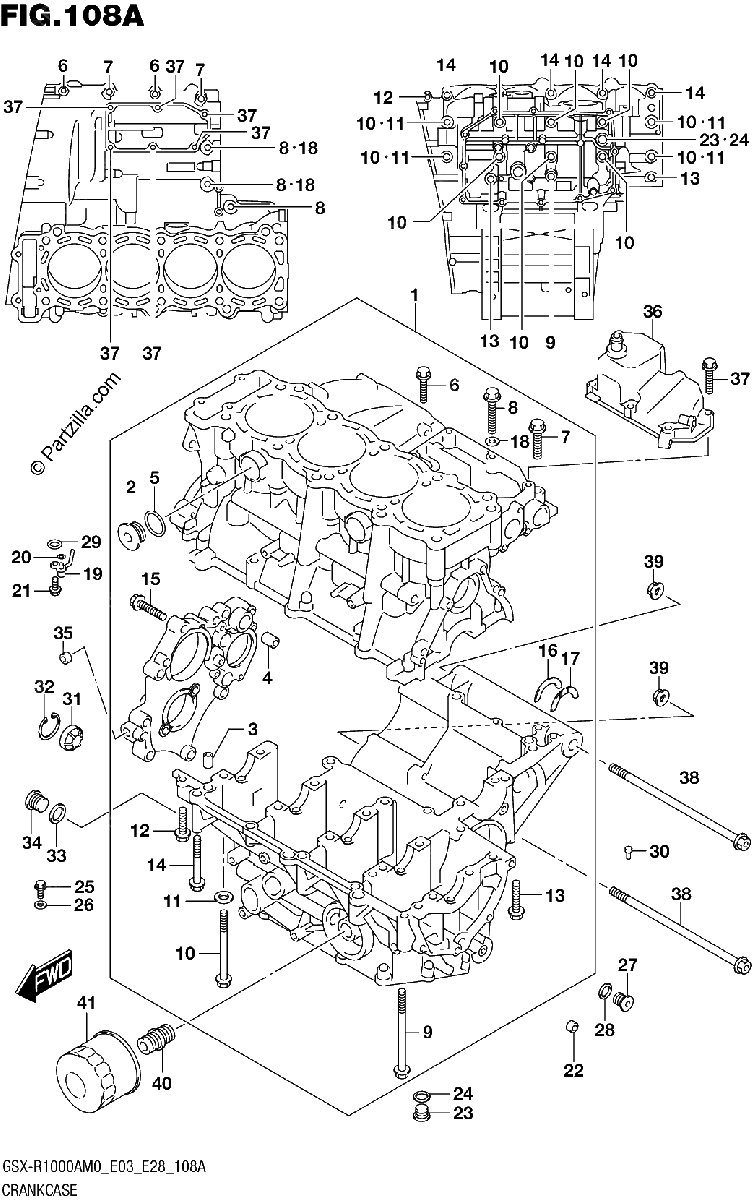

108A CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$3339.24¢1 669 622
#2
.PLUG, WATER JACKET
$20.84¢10 419
#3
.PIN, CRANKCASE
$6.00¢3 001
#4
.PIN, CRANKCASE
$6.00¢3 001
#5
.O RING (D:3.1,ID:19.4)
$2.29¢1 144
#6
BOLT
$2.77¢1 386
#7
.BOLT
$3.36¢1 679
#8
.BOLT
$4.43¢2 214
#9
.BOLT (8X110)
$4.11¢2 053
#10
.BOLT (9X95)
$9.48¢4 738
#11
.GASKET (10.2X20X2.3)
$2.42¢1 208
#12
BOLT
$2.77¢1 386
#13
.BOLT
$3.36¢1 679
#14
.BOLT
$3.85¢1 926
#15
BOLT
$3.90¢1 949
#16
.BEARING, THRUST LH (GREEN)
$10.55¢5 273
#18
.GASKET (8.2X14X1)
$1.97¢983
#19
JET, PISTON COOLING
$62.39¢31 194
#20
O RING (D:1.2,ID:4)
$2.04¢1 018
#21
BOLT (6X12)
$2.99¢1 495
#22
PLUG
$5.14¢2 570
#23
PLUG (L:12)
$9.60¢4 801
#24
GASKET (12.1X16.2X3.7)
$1.90¢949
#25
BOLT
$2.42¢1 208
#26
GASKET (6.2X13X1.2)
$2.04¢1 018
#27
PLUG (10X10)
$4.58¢2 289
#28
GASKET (10X14X3.6)
$2.28¢1 138
#29
O RING (D:1.9,ID:7.8)
$3.98¢1 989
#30
JET (140)
$20.38¢10 189
#31
.LENS, OIL LEVEL CHECK
$19.96¢9 982
#32
CIRCLIP
$3.28¢1 639
#33
GASKET (16X22X2)
$2.27¢1 133
#34
PLUG
$5.28¢2 639
#35
PLUG
$5.14¢2 570
#36
COVER, BREATHER
$185.82¢92 909
#37
BOLT
$2.77¢1 386
#38
BOLT (12X275)
$23.20¢11 598
#39
NUT
$8.72¢4 358
#40
.UNION, OIL FILTER STAND
$7.73¢3 864
#41
FILTER ASSY, ENGINE OIL
$14.36¢7 182
#17-1
.BEARING, THRUST LH (BROWN)
$14.35¢7 176
#17-2
BEARING, THRUST LH (RED)
$14.11¢7 055
#17-3
.BEARING, THRUST LH (YELLOW)
$14.63¢7 314
#17-4
.BEARING, THRUST LH (GREEN)
$10.55¢5 273
#17-5
BEARING, THRUST LH (BLUE)
$14.63¢7 314
#17-6
BEARING, THRUST LH (ORANGE)
$14.63¢7 314
#17-7
BEARING, THRUST LH (BLACK)
$10.89¢5 445
