521C FRONT FORK DAMPER GSX R1000RZA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

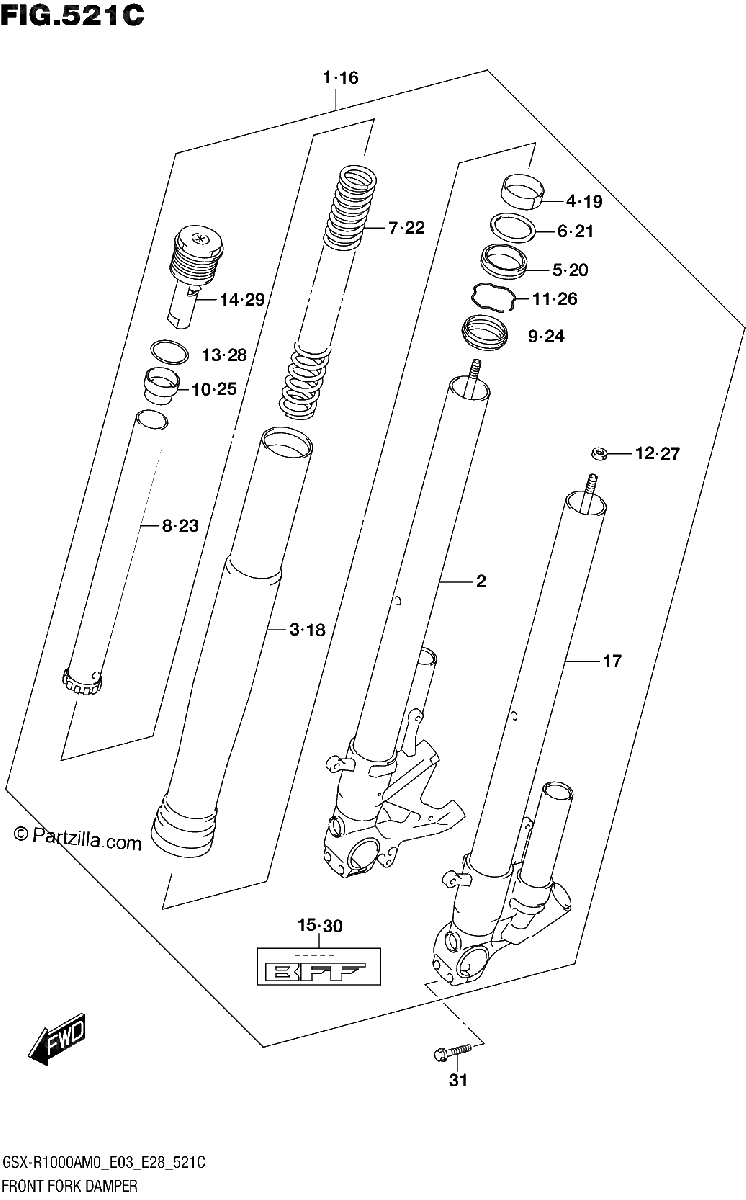

Diagrama de 521C FRONT FORK DAMPER GSX R1000RZA

Repuestos

#1
51103-17K40
DAMPER ASSY,FR,RH
No Disponible
1
#2
51110-17K40
.TUBE,INNER,RH
$3288.23¢1 644 115
1
#3
51131-17K20
TUBE, OUTER
$762.31¢381 156
1
#4
51152-47H00
.BUSH, GUIDE
$15.58¢7 791
1
#5
51153-27G00
.OIL SEAL
$25.31¢12 656
1
#6
51168-29G00
.SPACER, SEAL
$9.52¢4 761
1
#7
51171-17K10
SPRING
$160.52¢80 259
1
#8
51198-17K10
COLLAR, SPRING
$152.81¢76 406
1
#9
51173-27G00
.SEAL, DUST
$29.16¢14 582
1
#10
51175-17K10
COLLAR, SPRING
$78.60¢39 301
1
#11
51556-38B00
.RING
$7.92¢3 962
1
#12
51827-29G00
..NUT
No Disponible
1
#13
51187-47H00
..O RING
$7.81¢3 904
1
#14
51189-17K40
.BOLT
$265.16¢132 578
1
#15
68281-17K10
LABEL
$9.34¢4 669
1
#16
51104-17K40
DAMPER ASSY,FR,LH
No Disponible
1
#17
51120-17K40
.TUBE,INNER,LH
$3288.23¢1 644 115
1
#18
51131-17K20
TUBE, OUTER
$762.31¢381 156
1
#19
51152-47H00
.BUSH, GUIDE
$15.58¢7 791
1
#20
51153-27G00
.OIL SEAL
$25.31¢12 656
1
#21
51168-29G00
.SPACER, SEAL
$9.52¢4 761
1
#22
51171-17K10
SPRING
$160.52¢80 259
1
#23
51198-17K10
COLLAR, SPRING
$152.81¢76 406
1
#24
51173-27G00
.SEAL, DUST
$29.16¢14 582
1
#25
51175-17K10
COLLAR, SPRING
$78.60¢39 301
1
#26
51556-38B00
.RING
$7.92¢3 962
1
#27
51827-29G00
..NUT
No Disponible
1
#28
51187-47H00
..O RING
$7.81¢3 904
1
#29
51189-17K40
.BOLT
$265.16¢132 578
1
#30
68281-17K10
LABEL
$9.34¢4 669
1
#31
51321-36F00
BOLT
$6.52¢3 260
1
