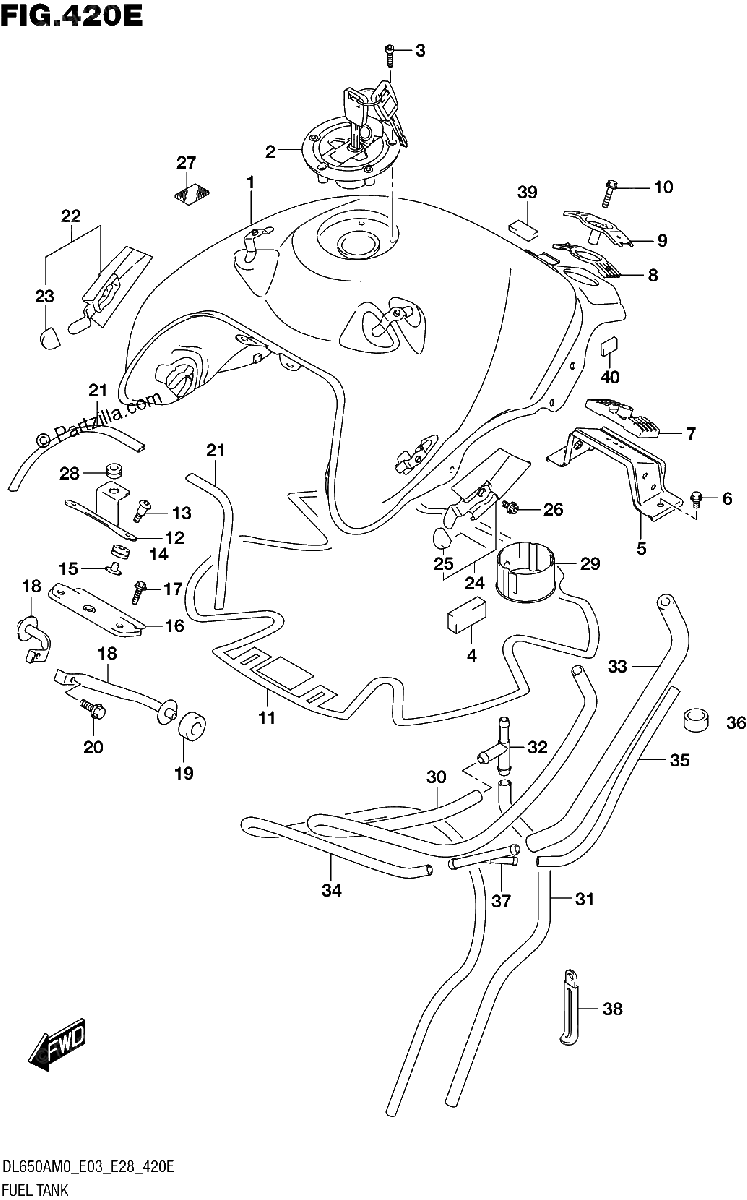

FUEL TANK DL650A E03 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#2
CAP SET, FUEL TANK
$291.69¢145 844
#3
BOLT
$4.90¢2 450
#4
CUSHION,FUEL TANK SIDE
$15.90¢7 950
#5
BRACKET, REAR LOWER
No Disponible
#6
BOLT
$3.01¢1 506
#7
CUSHION, LOWER
$24.63¢12 313
#8
CUSHION, UPPER
$22.65¢11 325
#9
BRACKET, UPPER
No Disponible
#10
BOLT
$3.65¢1 825
#1-1
TANK ASSY,FUEL (GRAY) *{BODY COLOR:YUD}*
$1658.85¢829 425
#11
SHIELD, TANK CENTER
$109.21¢54 606
#1-2
TANK ASSY,FUEL (BLACK)
$1619.28¢809 638
#12
BRACKET, FRONT COVER
$14.84¢7 419
#1-3
TANK ASSY,FUEL (WHITE)
$1591.91¢795 956
#13
SCREW (6X25)
$3.80¢1 900
#14
CUSHION, FUEL TANK FRONT
$4.91¢2 456
#15
SPACER, FUEL TANK FRONT
$8.86¢4 431
#16
BRACKET, FUEL TANK FRONT
No Disponible
#17
BOLT (6X20)
$3.10¢1 550
#18
BRACKET, FRONT SIDE
No Disponible
#19
CUSHION, FRONT SIDE BRACKET
$6.59¢3 294
#20
BOLT
$2.56¢1 281
#21
MOLDING, FUEL TANK
$24.22¢12 112
#22
BRACKET,FUEL TANK COVER RH
$16.46¢8 231
#23
CUSHION
$2.46¢1 231
#24
BRACKET,FUEL TANK COVER LH
$16.46¢8 231
#25
CUSHION
$2.46¢1 231
#26
.BOLT
$3.13¢1 563
#27
.FASTENER, COWLING
$11.74¢5 869
#28
CUSHION
$5.83¢2 913
#29
VESSEL,FUEL TANK INNER
$16.06¢8 031
#30
HOSE,FUEL TANK DRAIN NO.2
$6.31¢3 156
#31
HOSE,FUEL TANK DRAIN NO.1
$24.13¢12 063
#32
3 WAY
$6.35¢3 175
#33
HOSE,FUEL TANK BRTHR NO.1
$15.31¢7 656
#34
HOSE,FUEL TANK BRTHR NO.2
No Disponible
#35
HOSE,FUEL TANK BRTHR NO.3
$4.50¢2 250
#36
HOSE (13.5X16.5X10)
No Disponible
#37
3 WAY
$4.14¢2 069
#38
CLAMP (L:80)
$2.29¢1 144
#39
.CUSHION
$7.16¢3 581
#40
CUSHION,FRAME COVER FRONT RR
$7.75¢3 875
