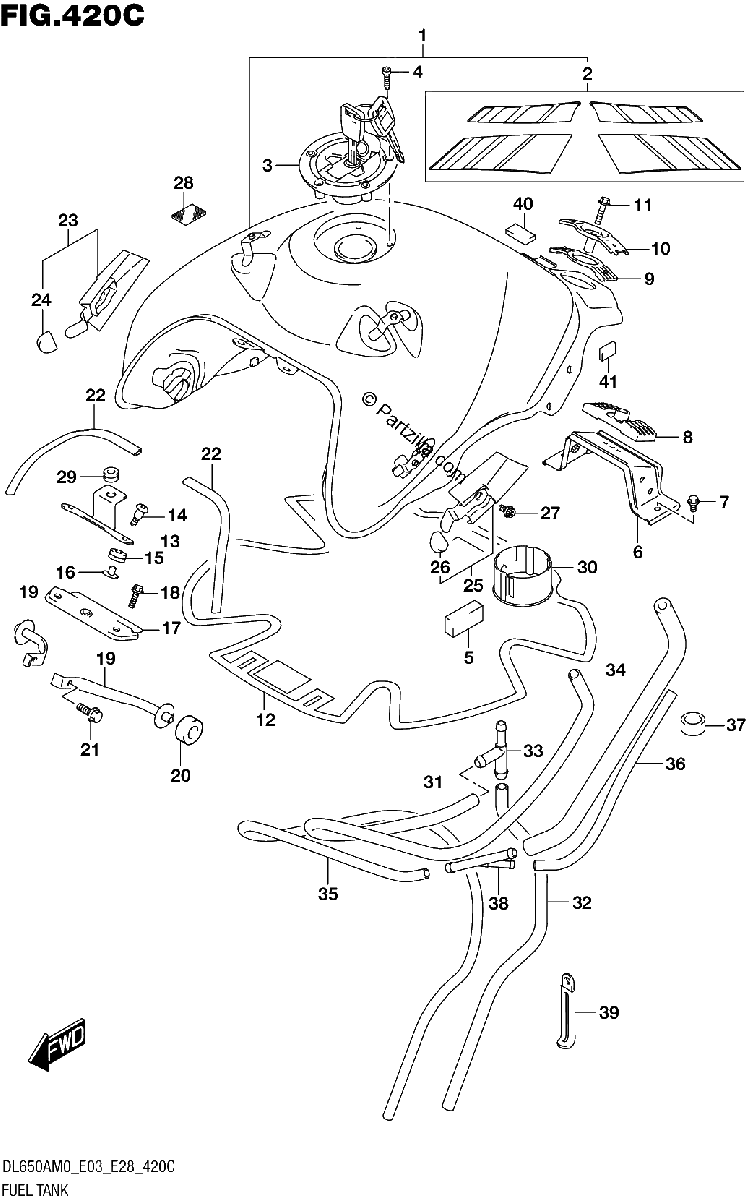

FUEL TANK DL650XA E03 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#3
CAP SET, FUEL TANK
$268.35¢134 176
#4
BOLT
$4.51¢2 254
#5
CUSHION,FUEL TANK SIDE
$14.63¢7 314
#6
BRACKET, REAR LOWER
No Disponible
#7
BOLT
$2.77¢1 386
#8
CUSHION, LOWER
$22.65¢11 327
#9
CUSHION, UPPER
$20.84¢10 419
#10
BRACKET, UPPER
No Disponible
#1-1
TANK ASSY,FUEL (YELLOW) *{BODY COLOR:YU1}*
$1620.41¢810 204
#11
BOLT
$3.36¢1 679
#1-2
TANK ASSY,FUEL (BLUE) *{BODY COLOR:YKY}*
$1620.41¢810 204
#12
SHIELD, TANK CENTER
$100.48¢50 238
#1-3
TANK ASSY,FUEL (BLACK) *{BODY COLOR:YVB}*
$1620.41¢810 204
#13
BRACKET, FRONT COVER
$13.65¢6 825
#14
SCREW (6X25)
$3.50¢1 748
#15
CUSHION, FUEL TANK FRONT
$4.52¢2 260
#16
SPACER, FUEL TANK FRONT
$8.15¢4 077
#17
BRACKET, FUEL TANK FRONT
No Disponible
#18
BOLT (6X20)
$2.85¢1 426
#19
BRACKET, FRONT SIDE
No Disponible
#20
CUSHION, FRONT SIDE BRACKET
$6.06¢3 030
#2-1
.TAPE SET,FUEL TANK *{BODY COLOR:YU1}*
No Disponible
#21
BOLT
$2.36¢1 179
#2-2
.TAPE SET,FUEL TANK *{BODY COLOR:YKY}*
$71.51¢35 753
#22
MOLDING, FUEL TANK
$22.29¢11 143
#2-3
.TAPE SET,FUEL TANK *{BODY COLOR:YVB}*
$71.51¢35 753
#23
BRACKET,FUEL TANK COVER RH
$15.15¢7 573
#24
CUSHION
$2.27¢1 133
#25
BRACKET,FUEL TANK COVER LH
$15.15¢7 573
#26
CUSHION
$2.27¢1 133
#27
.BOLT
$2.88¢1 438
#28
.FASTENER, COWLING
$10.80¢5 399
#29
CUSHION
$5.36¢2 680
#30
VESSEL,FUEL TANK INNER
$14.78¢7 389
#31
HOSE,FUEL TANK DRAIN NO.1
$22.20¢11 098
#32
HOSE,FUEL TANK DRAIN NO.2
$5.81¢2 904
#33
3 WAY
$5.84¢2 921
#34
HOSE,FUEL TANK BRTHR NO.1
$14.09¢7 044
#35
HOSE,FUEL TANK BRTHR NO.2
No Disponible
#36
HOSE,FUEL TANK BRTHR NO.3
$4.14¢2 070
#37
HOSE (13.5X16.5X10)
No Disponible
#38
3 WAY
$3.81¢1 903
#39
CLAMP (L:80)
$2.10¢1 052
#40
.CUSHION
$6.59¢3 295
#41
CUSHION,FRAME COVER FRONT RR
$7.13¢3 565
