OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

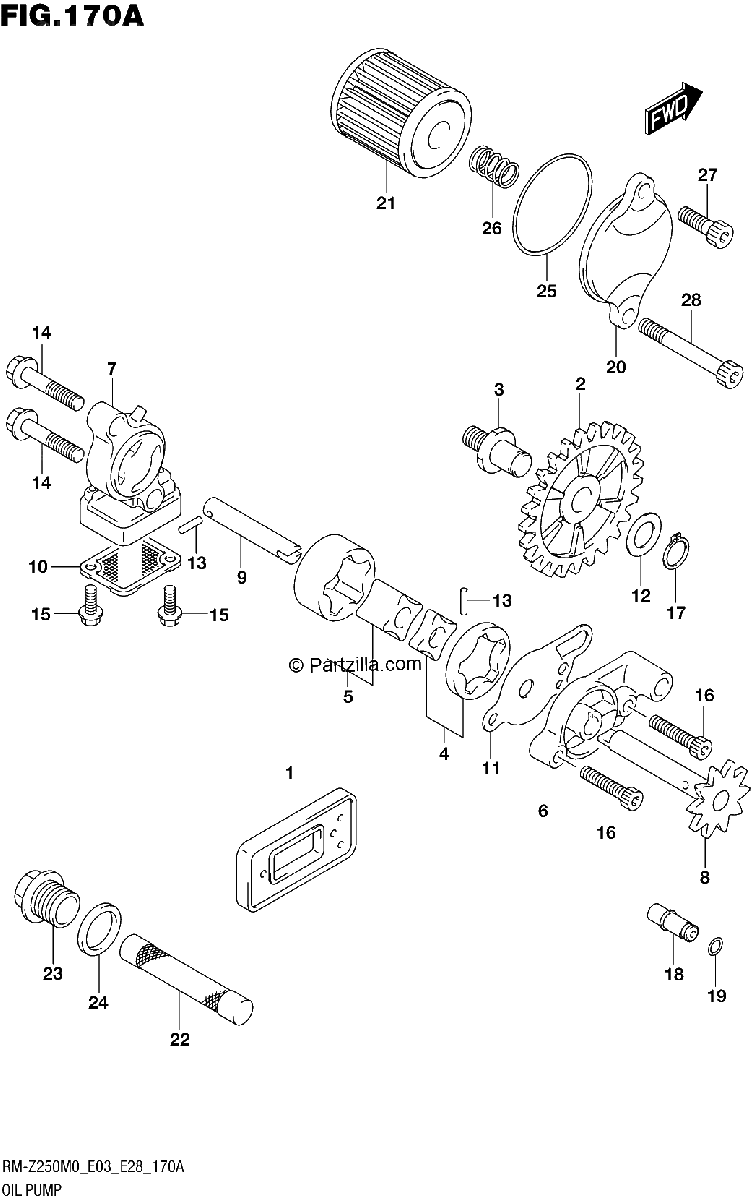

Diagrama de OIL PUMP

Repuestos

#1
13150-28H10
VALVE ASSY, OIL REED
$56.16¢28 081
1
#2
16321-49H00
GEAR, OIL PUMP IDLE (NT:25)
$82.22¢41 113
1
#3
16322-49H00
SHAFT, OIL PUMP IDLE GEAR
$63.48¢31 738
1
#4
16410-49H00
ROTOR SET, OIL PUMP NO.1
$41.42¢20 713
1
#5
16410-45G10
ROTOR SET,OIL PUMP
$68.54¢34 269
1
#6
16430-49H10
COVER, OIL PUMP NO.1
$55.63¢27 813
1
#7
16433-49H20
COVER,OIL PUMP NO.2
$96.54¢48 269
1
#8
16440-49H10
SHAFT, OIL PUMP DRIVEN GEAR
$71.34¢35 669
1
#9
16443-46K00
SHAFT,OIL PUMP NO.2
$26.66¢13 331
1
#10
16530-49H00
STRAINER, OIL PUMP NO.2
$13.40¢6 700
1
#11
16432-49H00
PLATE, OIL PUMP
$7.35¢3 675
1
#12
09181-10158
SHIM (10X18X0.5)
$2.56¢1 281
1
#13
09261-02008
PIN (2.5X11.8)
$1.93¢963
1
#14
01547-0635A
BOLT
$3.01¢1 506
1
#15
07120-0512A
BOLT
$2.99¢1 494
1
#16
07130-0520A
BOLT
$2.90¢1 450
1
#17
08331-31109
CIRCLIP
$2.30¢1 150
1
#18
16440-28H00
VALVE ASSY, OIL RELIEF
$100.02¢50 012
1
#19
09280-05007
O RING (D:1.2,ID:4.7)
$2.52¢1 263
1
#20
16315-35G40
CAP, ENG OIL FILTER OUTER
$30.40¢15 200
1
#21
16510-35G00
FILTER, ENGINE OIL
$11.74¢5 869
1
#22
16520-10H10
STRAINER, ENGINE OIL
$56.29¢28 144
1
#23
16316-10H01
CAP, ENG OIL STRAINER
$26.58¢13 288
1
#24
09168-16002
GASKET (16X22X2)
$2.46¢1 231
1
#25
09280-39001
O RING (D:2,ID:38.5)
$3.71¢1 856
1
#26
09440-10038
SPRING
$3.65¢1 825
1
#27
01547-0616A
BOLT
$2.63¢1 313
1
#28
01547-0635A
BOLT
$3.01¢1 506
1
