CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

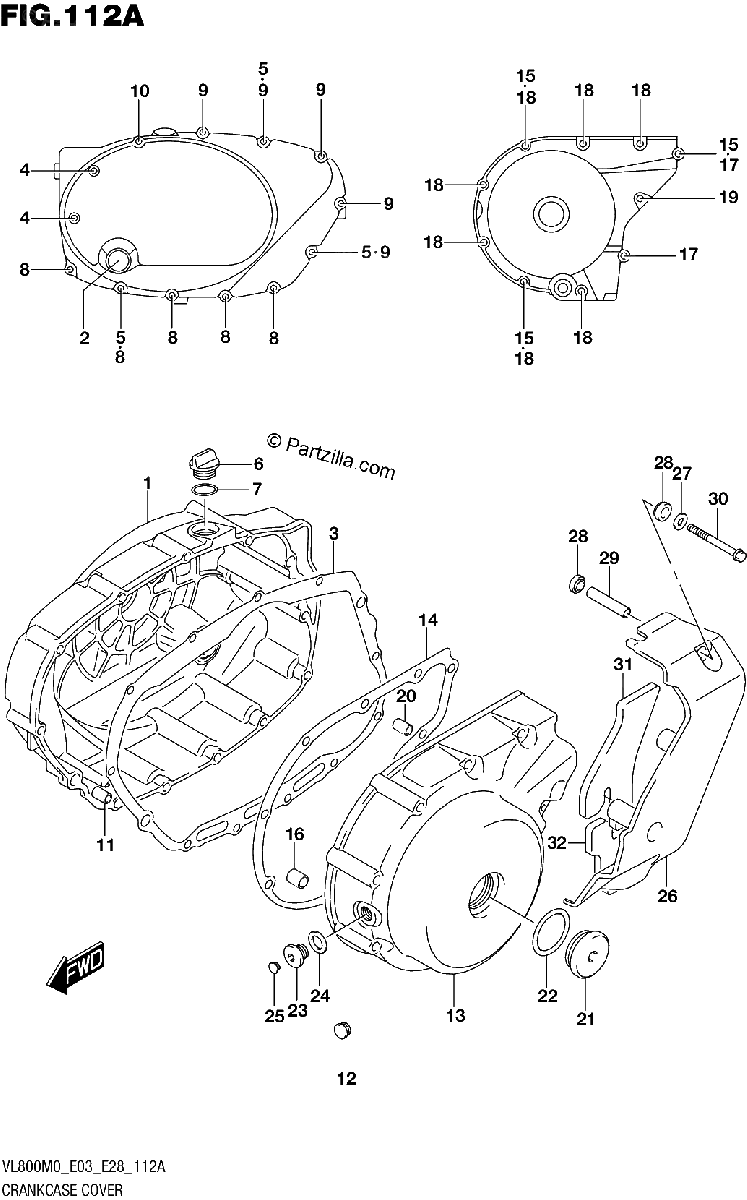

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-41F00
COVER, CLUTCH
No Disponible
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$21.70¢10 850
1
#3
11482-41F00
.GASKET, CLUTCH COVER | NOT ILLUSTRATED
$20.43¢10 213
1
#4
09103-06270
BOLT (6X105)
$5.66¢2 831
1
#5
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#6
11971-25D00
PLUG, ENGINE OIL FILLER
$6.09¢3 044
1
#7
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
#8
09103-06213
BOLT (6X30)
$3.19¢1 594
1
#9
09103-06238
BOLT (6X50)
$3.45¢1 725
1
#10
09103-06226
BOLT (6X85)
$5.04¢2 519
1
#11
04211-09189
PIN
$2.14¢1 069
1
#12
09250-08013
CAP (OD:12)
$3.52¢1 763
1
#13
11351-41F10
COVER, GENERATOR
$530.81¢265 406
1
#14
11483-41F00
.GASKET, GENERATOR COVER | NOT ILLUSTRATED
$16.94¢8 469
1
#15
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#16
09206-11007
.PIN (8.4X11X20)
$3.19¢1 594
1
#17
09103-06215
BOLT (6X40)
$3.64¢1 819
1
#18
09103-06216
BOLT (6X55)
$3.60¢1 800
1
#19
09103-06226
BOLT (6X85)
$5.04¢2 519
1
#20
04211-09189
PIN
$2.14¢1 069
1
#21
09259-36008
PLUG (36X10)
$9.60¢4 800
1
#22
09280-33004
O RING (D:3.1,ID:32.7)
$2.92¢1 463
1
#23
09248-14011
PLUG (14x12)
$3.65¢1 825
1
#24
09168-14002
GASKET (13.8X18.8X4.8)
$3.44¢1 719
1
#25
09250-08012
CAP (OD:12)
$2.84¢1 419
1
#26
11361-41F00
COVER, SECONDARY DRIVE
$302.02¢151 013
1
#27
09160-06125
WASHER (6.5X14X1.6)
$2.46¢1 231
1
#28
09161-09005
WASHER (8.7X16X5)
$3.04¢1 519
1
#29
09180-06280
SPACER (6.5X9X41.3)
$6.66¢3 331
1
#30
09103-06216
BOLT (6X55)
$3.60¢1 800
1
#31
11362-39G00
CUSHION, SEC DRIVE COVER NO.1
$20.25¢10 125
1
#32
11363-39G00
CUSHION, SEC DRIVE COVER NO.2
$14.28¢7 138
1
