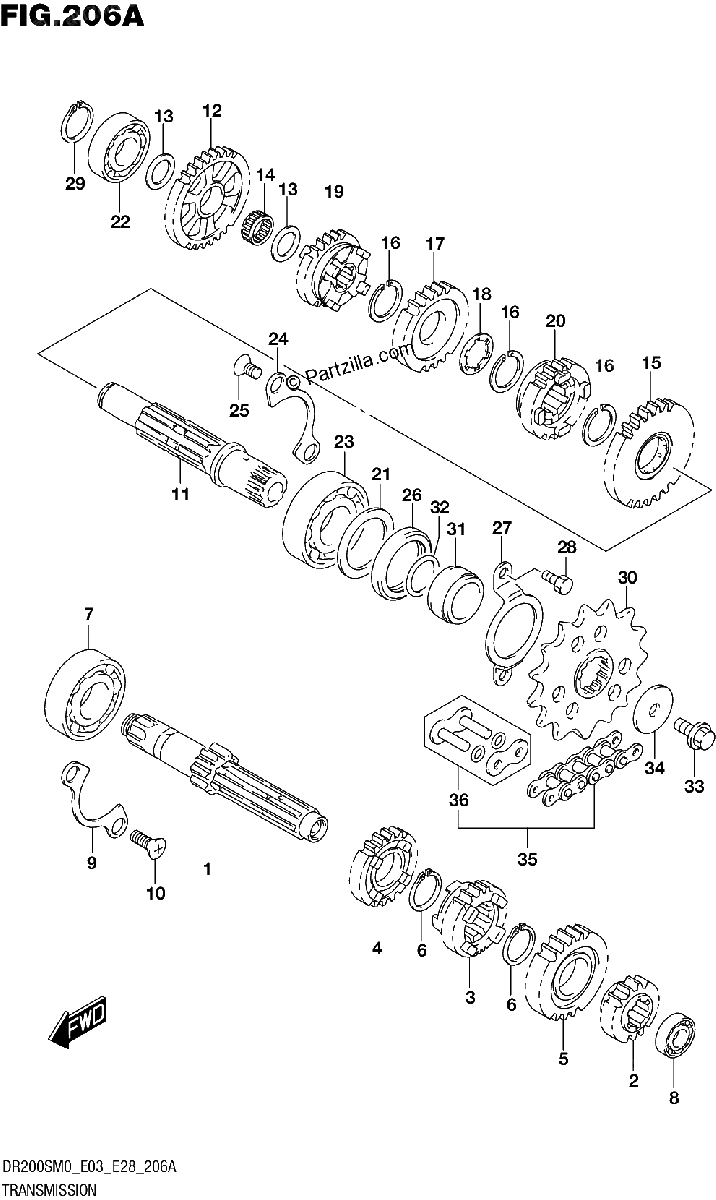

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SHAFT, COUNTER (NT:11)
No Disponible
#2
GEAR, 2ND DRIVE (NT:15)
No Disponible
#3
GEAR, 3RD DRIVE (NT:16)
No Disponible
#4
GEAR, 4TH DRIVE (NT:21)
No Disponible
#5
GEAR, 5TH DRIVE (NT:23)
No Disponible
#6
CIRCLIP
$2.39¢1 196
#7
BEARING (20X47X14) | RH
$25.17¢12 587
#8
BEARING | LH
$28.12¢14 059
#9
RETAINER, DRIVE SHAFT BEARING
No Disponible
#10
SCREW (6X12)
$2.42¢1 208
#11
SHAFT, DRIVE
$107.51¢53 757
#12
GEAR, 1ST DRIVEN (NT:33)
$143.77¢71 887
#13
SHIM (17X26X1)
$3.36¢1 679
#14
BEARING (17X21X9.8)
$14.52¢7 262
#15
GEAR, 2ND DRIVEN (NT:29)
$119.51¢59 754
#16
CIRCLIP
$3.36¢1 679
#17
GEAR, 3RD DRIVEN (NT:23)
No Disponible
#18
LOCK WASHER
$3.54¢1 771
#19
GEAR, 4TH DRIVEN (NT:23)
No Disponible
#20
GEAR, 5TH DRIVEN (NT:21)
No Disponible
#21
WASHER, OIL SEALING
$5.40¢2 702
#22
BEARING (17X36X12) | RH
$51.95¢25 973
#23
BEARING (22X50X14) | RH
$30.91¢15 456
#24
RETAINER, DRIVE SHAFT BEARING
No Disponible
#25
SCREW (6X12)
$2.42¢1 208
#26
OIL SEAL (30X40X6)
$9.99¢4 997
#27
RETAINER, DRIVE SHAFT OIL SEA
$5.61¢2 806
#28
.BOLT
$2.70¢1 351
#29
CIRCLIP
$2.25¢1 127
#30
SPROCKET, ENGINE (NT:15)
$61.38¢30 688
#31
SPACER, ENGINE SPROCKET
$28.66¢14 329
#32
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.27¢1 133
#33
BOLT | FRONT
$2.77¢1 386
#34
WASHER
$3.36¢1 679
#35
CHAIN ASSY, DRIVE (DID520VC5)
$292.44¢146 223
#36
.JOINT SET, CHAIN
$19.87¢9 936
