FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

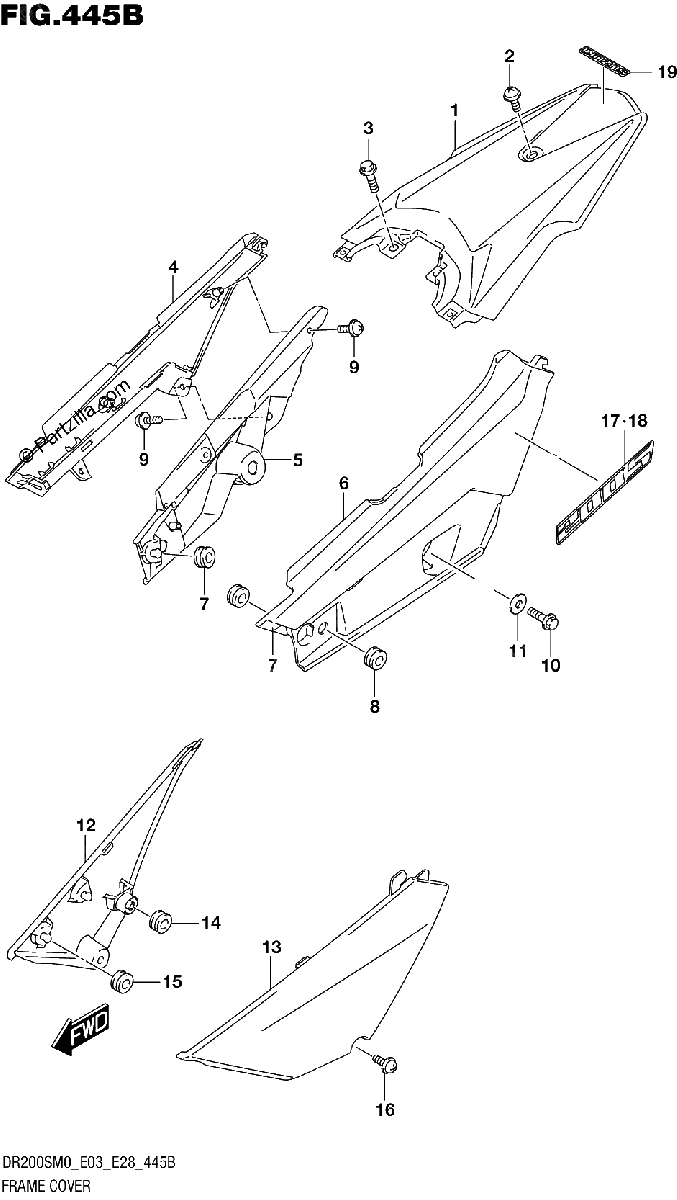

Diagrama de FRAME COVER

Repuestos

#1
47311-49J00-YUD
COVER, FRAME CENTER (GRAY) | FOR A8W
$113.82¢56 908
1
#2
09139-06188
SCREW (6X12)
$4.48¢2 242
1
#3
01550-0612A
BOLT
$2.36¢1 179
1
#4
47121-49J00-YUD
COVER, FRAME UPPER RH (GRAY) | FOR A8W
$100.14¢50 071
1
#5
47131-49J00
COVER, FRAME INNER RH
$45.86¢22 931
1
#6
47221-49J00-YUD
COVER, FRAME UPPER LH (GRAY) | FOR A8W
$100.14¢50 071
1
#7
09320-08018
CUSHION | LH
$3.36¢1 679
1
#8
09320-08028
CUSHION
$3.36¢1 679
1
#9
03541-0516A
SCREW
$1.64¢822
1
#10
09135-08012
BOLT (8X25)
$1.74¢868
1
#11
09169-08045
WASHER
$2.56¢1 282
1
#12
47111-49J00-019
COVER, FRAME RH (BLACK) | FOR A8W
$87.09¢43 545
1
#13
47211-49J00-019
COVER, FRAME LH (BLACK) | FOR A8W
$85.48¢42 740
1
#14
47161-08G00
CUSHION, RH
$11.98¢5 991
1
#15
09320-08029
CUSHION
$2.90¢1 449
1
#16
09139-06169
SCREW (6X16)
$3.36¢1 679
1
#17
68135-49J30-B0H
EMBLEM,"200" RH
$13.36¢6 681
1
#18
68145-49J30-B0H
EMBLEM,"200" LH
$13.36¢6 681
1
#19
68171-28H00-YD8
.EMBLEM, in.SUZUKIin. (SILVER)
$9.43¢4 715
1
