CARBURETOR E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

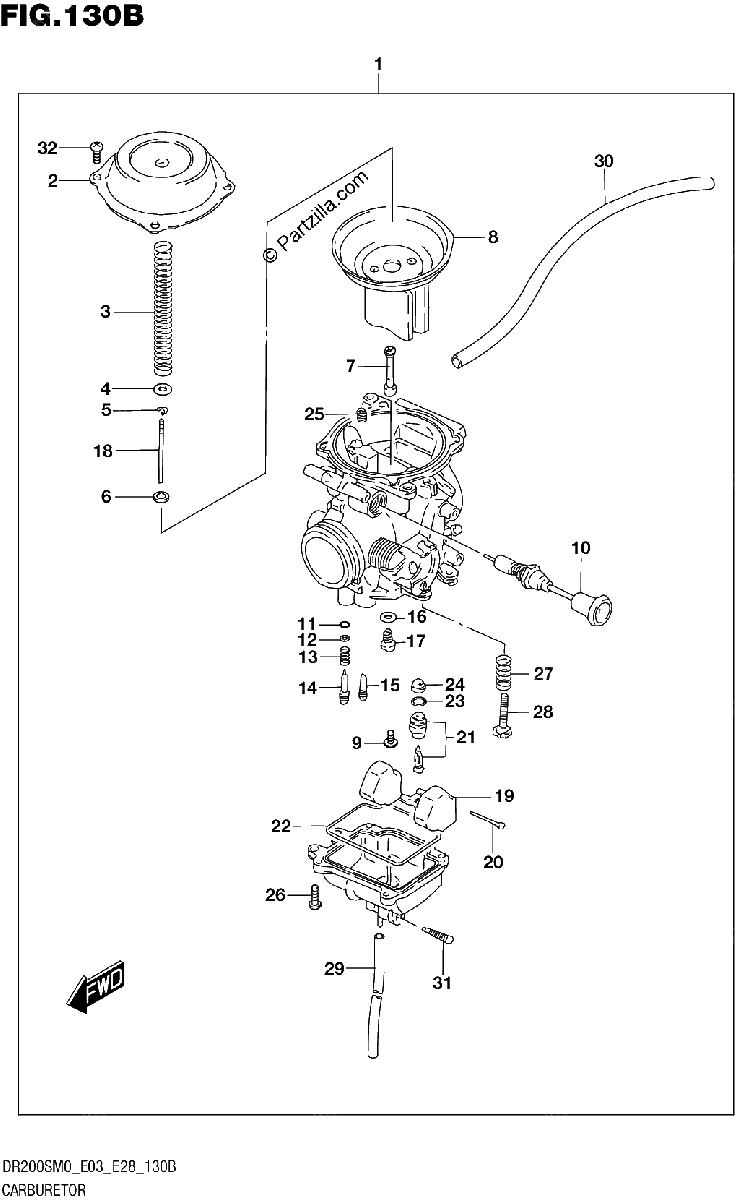

Diagrama de CARBURETOR E33

Repuestos

#1
13200-42AE2
CARBURETOR ASSY
$600.01¢300 006
1
#2
13502-42A00
.COVER
$47.78¢23 891
1
#3
13417-42A00
.SPRING
$7.66¢3 830
1
#4
13382-42A00
.RING
$4.91¢2 455
1
#5
13394-10010
.CLIP, NEEDLE
$5.23¢2 616
1
#6
13387-47010
.RING
$8.15¢4 077
1
#7
09494-00881
.JET, NEEDLE (P-5M)
$65.11¢32 556
1
#8
13500-42A00
.DIAPHRAGM ASSY
$210.20¢105 098
1
#9
13602-43410
.SCREW
$3.36¢1 679
1
#10
13411-42A20
.PLUNGER ASSY
$48.18¢24 092
1
#11
13295-29900
.O RING
$4.76¢2 380
1
#12
13291-29900
.WASHER
$2.15¢1 075
1
#13
13268-47070
.SPRING
$4.76¢2 380
1
#14
13279-47070
.SCREW, PILOT
$14.66¢7 331
1
#15
09492-35008
.JET, PILOT (35)
$10.23¢5 118
1
#16
13382-03110
.WASHER
$3.36¢1 679
1
#17
09491-25010
.JET, MAIN (125)
$13.31¢6 653
1
#18
13383-42AC0
.NEEDLE, JET (5D77-1)
$23.11¢11 558
1
#19
13250-42A00
.FLOAT
$37.40¢18 699
1
#20
13254-92311
.PIN, FLOAT
$2.64¢1 322
1
#21
13370-44500
.VALVE ASSY, NEEDLE
$55.92¢27 962
1
#22
13251-42A00
.O RING, FLOAT CHAMBER
$9.90¢4 951
1
#23
13374-35C00
.O RING, NEEDLE VALVE SEAT
$6.57¢3 283
1
#24
13376-19F00
.FILTER
$11.28¢5 641
1
#25
09493-27001
.JET, AIR (135)
$20.38¢10 189
1
#26
13602-05A40
SCREW
$1.49¢747
1
#27
13268-37420
.SPRING, THROTTLE SCREW
$6.59¢3 295
1
#28
13267-25D00
.ADJUSTER
$17.63¢8 815
1
#29
09355-30705-600
.HOSE (3X7X600) | L:600-400
$12.16¢6 078
1
#30
09352-50823-600
HOSE (5X8.2X600)
$10.88¢5 440
1
#31
13247-13A00
.SCREW, DRAIN
$3.28¢1 639
1
#32
02112-0408A
.SCREW
$1.31¢655
1
