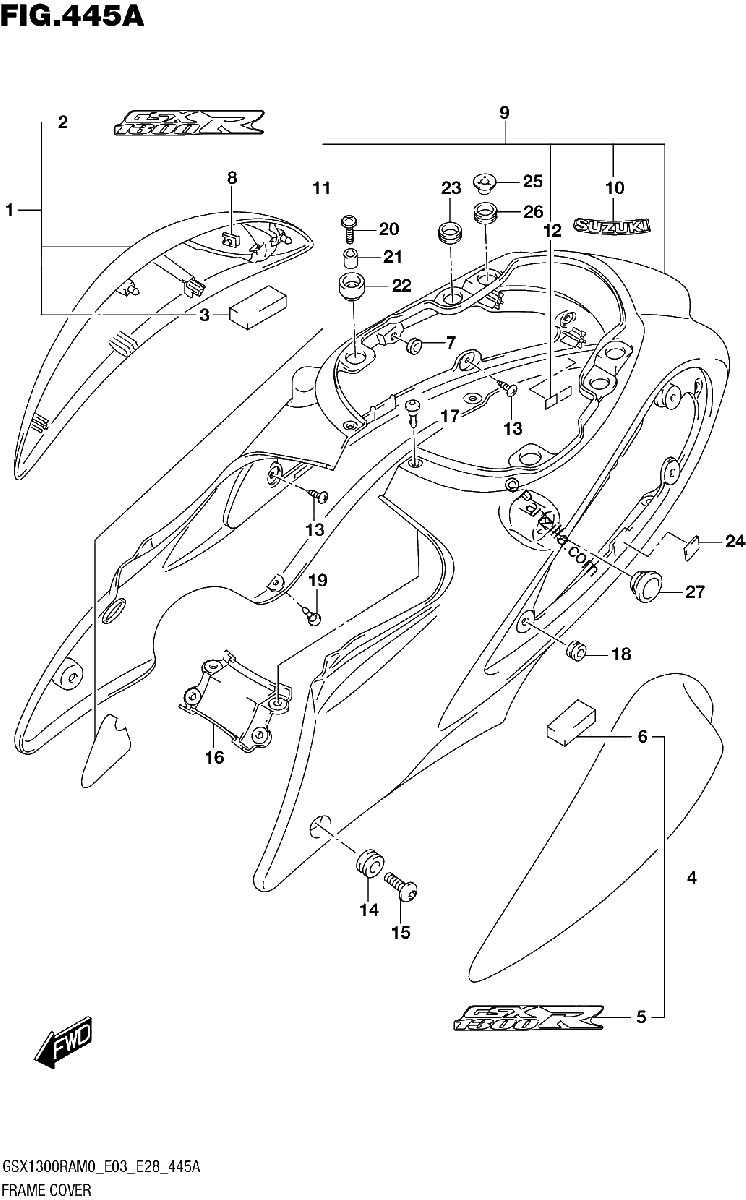

FRAME COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#2
.EMBLEM,FRAME COVER (BLACK)
$16.31¢8 156
#3
.CUSHION
$4.55¢2 275
#5
.EMBLEM,FRAME COVER (BLACK)
$16.31¢8 156
#6
.CUSHION
$4.55¢2 275
#7
CUSHION
$2.76¢1 381
#8
NUT
$2.79¢1 394
#10
.EMBLEM,"SUZUKI" (BLACK)
$11.41¢5 706
#1-1
COVER,FRAME RH (GRAY) *{BODY COLOR:YLF}*
$273.56¢136 781
#11
.TAPE, CENTER
$24.96¢12 481
#1-2
COVER,FRAME RH (RED) *{BODY COLOR:YYG}*
$273.56¢136 781
#12
.CUSHION
$7.16¢3 581
#13
SCREW (5X15)
$2.85¢1 425
#14
CUSHION
$2.56¢1 281
#15
BOLT (6X20)
$4.91¢2 456
#17
CLIP
$3.60¢1 800
#18
CUSHION
$2.56¢1 281
#19
CLIP
$3.65¢1 825
#20
SCREW (6X20)
$2.59¢1 294
#21
.SPACER (6.5X10X11)
$2.66¢1 331
#22
CUSHION, SEAT TAIL COVER CTR
$4.14¢2 069
#23
CUSHION
$6.34¢3 169
#24
PROTECTOR | CUT AS REQUIRED
$5.34¢2 669
#25
WASHER, UPPER REAR
$12.19¢6 094
#26
CUSHION, UPPER REAR
$8.50¢4 250
#27
SPACER, SIDE CENTER
$8.61¢4 306
#4-1
COVER,FRAME LH (GRAY) *{BODY COLOR:YLF}*
$273.56¢136 781
#4-2
COVER,FRAME LH (RED) *{BODY COLOR:YYG}*
$273.56¢136 781
#9-1
COVER,FRAME CTR (GRAY) *{BODY COLOR:YLF}*
$502.22¢251 112
#9-2
COVER,FRAME CTR (RED) *{BODY COLOR:YYG}*
$442.48¢221 238
#16-1
LID,FRAME COVER CTR (GRAY) *{BODY COLOR:YLF}*
$61.38¢30 688
#16-2
LID, CENTER (RED) | FOR A9Z
$67.85¢33 925
