REAR WHEEL DR Z400S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

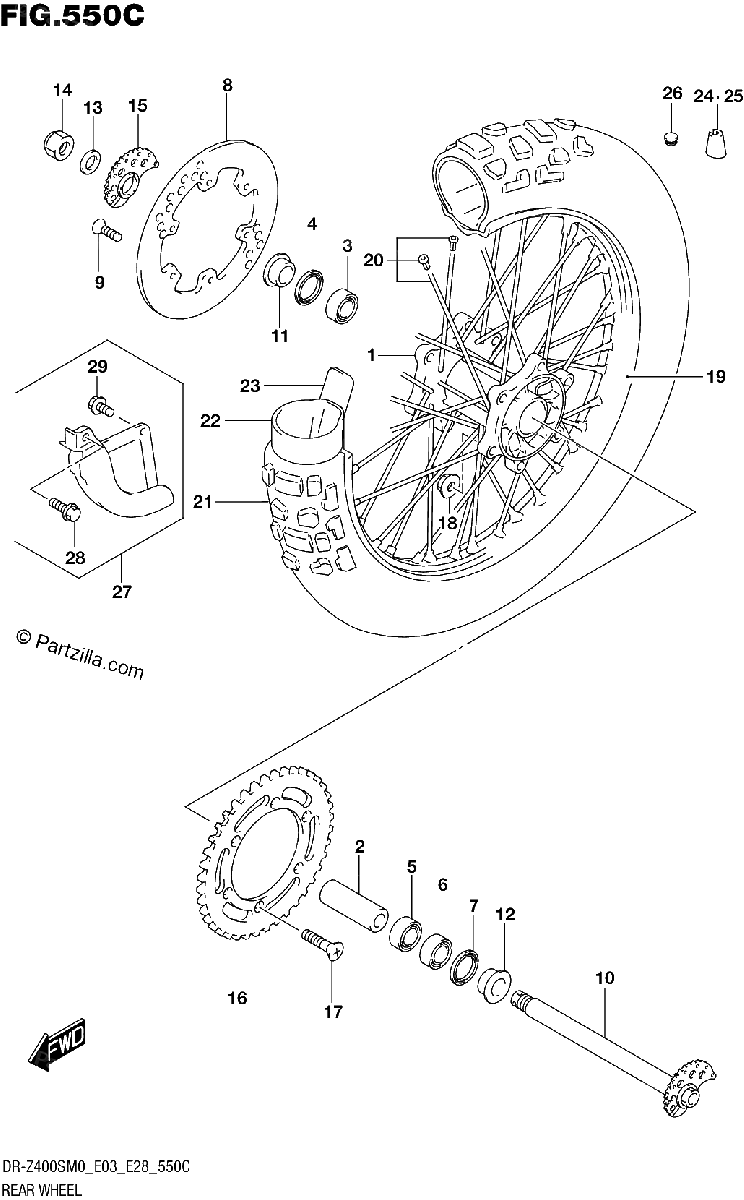

Diagrama de REAR WHEEL DR Z400S

Repuestos

#1
64111-29F10
HUB, REAR WHEEL
$631.69¢315 844
1
#2
64731-29F00
SPACER, REAR HUB BEARING
$42.91¢21 456
1
#3
09262-20175
BEARING
$38.27¢19 138
1
#4
64841-28E00
SEAL, RH (29X42X6)
$9.40¢4 700
1
#5
09262-20175
BEARING
$38.27¢19 138
1
#6
08123-62047
BEARING
$20.75¢10 375
1
#7
09283-29006
OIL SEAL (29X47X6)
$13.55¢6 775
1
#8
69211-43D00
DISC, REAR BRAKE
$400.31¢200 156
1
#9
09120-06014
SCREW (6X18)
$3.16¢1 581
1
#10
64710-29F00
AXLE, REAR
$197.25¢98 625
1
#11
64751-28E20
SPACER, LH
$32.56¢16 281
1
#12
64751-28E20
SPACER, LH
$32.56¢16 281
1
#13
09160-19022
WASHER (19X32X3.2)
$5.75¢2 875
1
#14
08319-2118A
NUT
$5.75¢2 875
1
#15
61410-29F00
ADJUSTER, CHAIN RH
$35.85¢17 925
1
#16
64511-14D80
SPROCKET, REAR (NT:44)
$90.34¢45 169
1
#17
09120-08010
BOLT (8X30.5)
$3.04¢1 519
1
#18
08319-3108A
NUT
$3.01¢1 506
1
#19
65311-29F90
RIM,RR WHEEL 18X2.15 AL
$482.73¢241 363
1
#20
65320-29F00
SPOKE SET, REAR WHEEL
$148.34¢74 169
1
#21
65110-29F10
TIRE, REAR (120/90-18 64P) | TRAIL WING-42
$387.31¢193 656
1
#22
65200-29E01
TUBE ASSY, WHEEL INNER
$102.35¢51 175
1
#23
65261-14E01
PROTECTOR, INNER TUBE
$11.06¢5 531
1
#24
55412-41F00
BALANCER, WHEEL NO.1
$10.15¢5 075
1
#25
55413-41F00
BALANCER, WHEEL | 30G
$11.90¢5 950
1
#26
09250-08013
CAP (OD:12)
$3.52¢1 763
1
#27
69200-28C00
COVER, REAR DISC
$33.92¢16 963
1
#28
01550-0620B
BOLT (6X20)
$3.10¢1 550
1
#29
01550-0612A
BOLT
$2.56¢1 281
1
