FRONT FORK DAMPER DR Z400S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

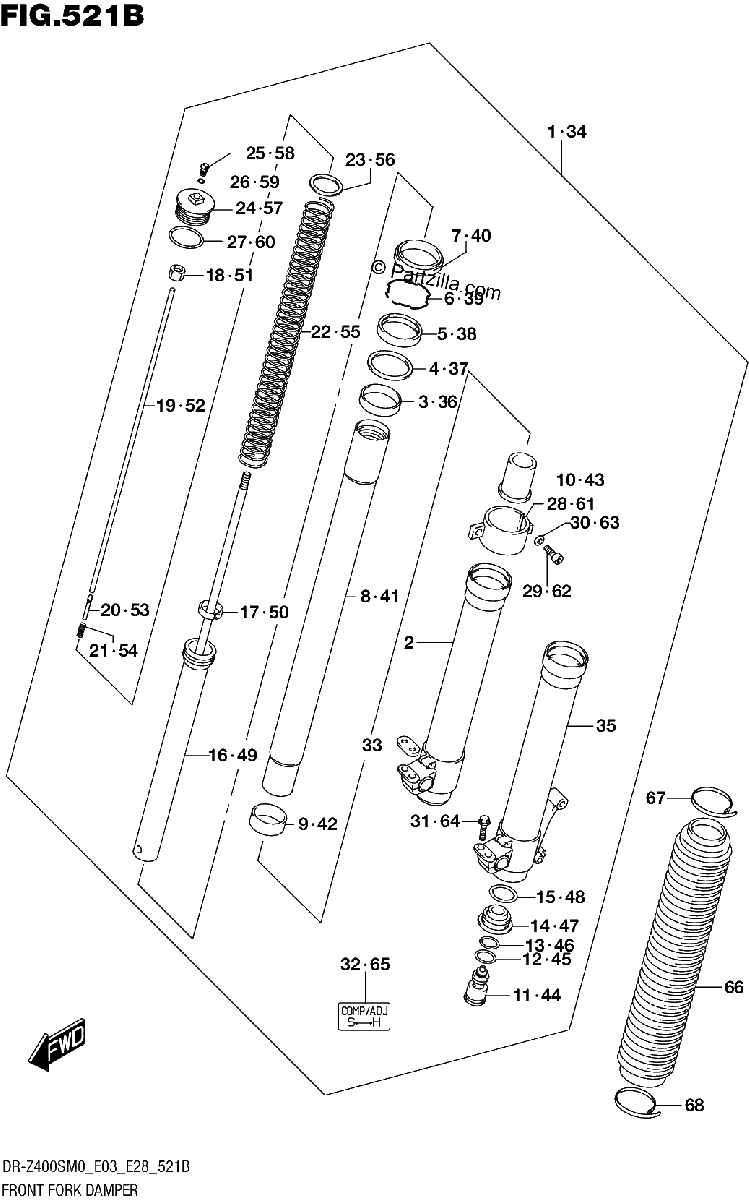

Diagrama de FRONT FORK DAMPER DR Z400S

Repuestos

#1
51103-29F60
DAMPER ASSY, FRONT FORK RH
No Disponible
1
#2
51130-29F60
.TUBE, OUTER RH
$1373.13¢686 567
1
#3
51167-36E80
.BUSH, GUIDE
$34.33¢17 164
1
#4
51158-36E00
..SPACER, SEAL
$11.65¢5 825
1
#5
51153-36E00
..SEAL, OIL
$44.94¢22 471
1
#6
51156-36E00
..RING, OIL SEAL STOPPER
$10.49¢5 244
1
#7
51173-36E00
.SEAL, DUST
$47.99¢23 995
1
#8
51110-29F00
.TUBE, INNER
$801.11¢400 557
1
#9
51121-36E40
.BUSH, SLIDE
$47.98¢23 989
1
#10
51195-29F00
.PIECE, OIL LOCK
No Disponible
1
#11
51170-29F00
.BOLT, CENTER
$386.11¢193 056
1
#12
51175-29F00
..O RING
$7.27¢3 634
1
#13
51174-29F00
..O RING
$7.27¢3 634
1
#14
51205-29F00
.PLATE, END
No Disponible
1
#15
51117-27C40
.O RING
$7.73¢3 864
1
#16
51190-29F00
.ROD, FRONT DAMPER
No Disponible
1
#17
51122-29F00
..BUSH, SLIDE
$28.12¢14 059
1
#18
51827-33E00
..NUT
No Disponible
1
#19
51191-29F00
..ROD, PUSH
No Disponible
1
#20
51192-05D80
..NEEDLE
$26.70¢13 351
1
#21
51193-28E00
..SPRING, PUSH ROD
$7.82¢3 910
1
#22
51171-29F60
.SPRING, FR (K=8.63N/0.88KG)
No Disponible
1
#23
51192-36E00
.JOINT, SPRING
No Disponible
1
#24
51351-29F00
.BOLT, FORK
$196.65¢98 325
1
#25
51357-28E30
..BOLT, PLUG
$17.86¢8 930
1
#26
51358-28E30
...O RING
$5.32¢2 662
1
#27
51117-36E00
.O RING
$8.63¢4 313
1
#28
51203-29F00
.HOLDER, BOOT
$58.25¢29 124
1
#29
07130-05207
.BOLT
$3.66¢1 829
1
#30
09160-05044
.WASHER (5.5X10X1)
$2.32¢1 162
1
#31
51321-27C40
.BOLT, HANDLE HOLDER
$5.59¢2 794
1
#32
51149-29E40
.LABEL
$7.74¢3 870
1
#33
51516-29F00
.COVER, AXLE HOLDER
$10.09¢5 043
1
#34
51104-29F60
DAMPER ASSY, FRONT FORK LH
$3361.65¢1 680 823
1
#35
51140-29F60
.TUBE, OUTER LH
$1373.13¢686 567
1
#36
51167-36E80
.BUSH, GUIDE
$34.33¢17 164
1
#37
51158-36E00
..SPACER, SEAL
$11.65¢5 825
1
#38
51153-36E00
..SEAL, OIL
$44.94¢22 471
1
#39
51156-36E00
..RING, OIL SEAL STOPPER
$10.49¢5 244
1
#40
51173-36E00
.SEAL, DUST
$47.99¢23 995
1
#41
51110-29F00
.TUBE, INNER
$801.11¢400 557
1
#42
51121-36E40
.BUSH, SLIDE
$47.98¢23 989
1
#43
51195-29F00
.PIECE, OIL LOCK
No Disponible
1
#44
51170-29F00
.BOLT, CENTER
$386.11¢193 056
1
#45
51175-29F00
..O RING
$7.27¢3 634
1
#46
51174-29F00
..O RING
$7.27¢3 634
1
#47
51205-29F00
.PLATE, END
No Disponible
1
#48
51117-27C40
.O RING
$7.73¢3 864
1
#49
51190-29F00
.ROD, FRONT DAMPER
No Disponible
1
#50
51122-29F00
..BUSH, SLIDE
$28.12¢14 059
1
#51
51827-33E00
..NUT
No Disponible
1
#52
51191-29F00
..ROD, PUSH
No Disponible
1
#53
51192-05D80
..NEEDLE
$26.70¢13 351
1
#54
51193-28E00
..SPRING, PUSH ROD
$7.82¢3 910
1
#55
51171-29F60
.SPRING, FR (K=8.63N/0.88KG)
No Disponible
1
#56
51192-36E00
.JOINT, SPRING
No Disponible
1
#57
51351-29F00
.BOLT, FORK
$196.65¢98 325
1
#58
51357-28E30
..BOLT, PLUG
$17.86¢8 930
1
#59
51358-28E30
...O RING
$5.32¢2 662
1
#60
51117-36E00
.O RING
$8.63¢4 313
1
#61
51203-29F00
.HOLDER, BOOT
$58.25¢29 124
1
#62
07130-05207
.BOLT
$3.66¢1 829
1
#63
09160-05044
.WASHER (5.5X10X1)
$2.32¢1 162
1
#64
51321-27C40
.BOLT, HANDLE HOLDER
$5.59¢2 794
1
#65
51149-29E40
.LABEL
$7.74¢3 870
1
#66
51571-29F00-019
BOOT (BLACK)
$103.44¢51 721
1
#67
51575-29F00
BAND, BOOT UPPER
$27.12¢13 558
1
#68
51576-29F00
BAND, BOOT LOWER
$24.67¢12 334
1
