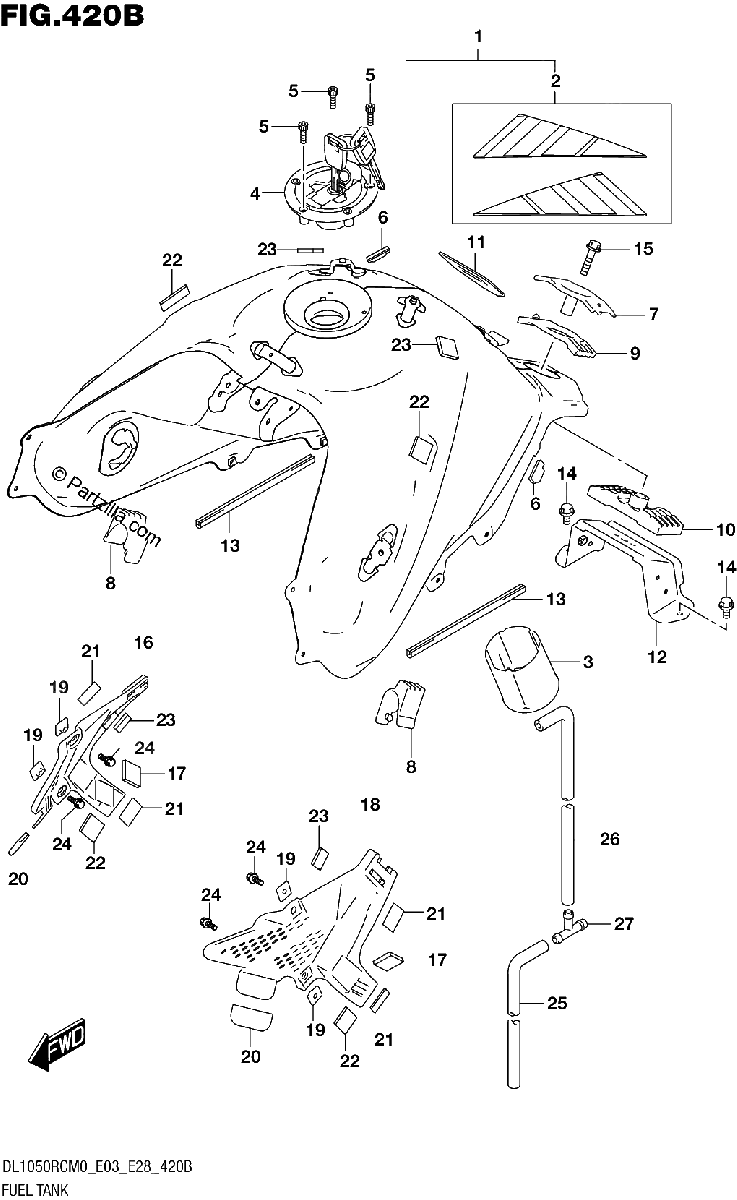

420B FUEL TANK DL1050RC
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#3
VESSEL,FUEL TANK INNER
$20.81¢10 406
#4
CAP SET,FUEL TANK FILLER
$222.63¢111 313
#5
BOLT
$4.90¢2 450
#6
CUSHION, FUEL TANK COVER
$7.11¢3 556
#7
BRACKET, UPPER
No Disponible
#8
CUSHION, SIDE
No Disponible
#9
CUSHION, UPPER
$22.65¢11 325
#10
CUSHION, LOWER
$24.63¢12 313
#1-1
TANK ASSY,FUEL (YELLOW) *{BODY COLOR:YU1}*
$1470.66¢735 331
#11
CUSHION,FUEL TANK RR
$51.73¢25 863
#1-2
TANK ASSY,FUEL (BLACK) *{BODY COLOR:YVB}*
$1588.31¢794 156
#12
BRACKET, REAR LOWER
No Disponible
#1-3
TANK ASSY,FUEL (WHITE) *{BODY COLOR:B1F}*
$1470.66¢735 331
#13
MOLDING, FUEL TANK
$17.27¢8 638
#14
BOLT
$3.01¢1 506
#15
BOLT
$3.65¢1 825
#16
BRKT,FUEL TANK COVER SIDE RH
$40.00¢20 000
#17
CUSHION, FUEL TANK SIDE COVER
$17.50¢8 750
#18
BRKT,FUEL TANK COVER SIDE LH
$40.00¢20 000
#19
NUT(M6)
$15.90¢7 950
#20
CUSHION, FUEL TANK COVER BRKT
$6.50¢3 250
#2-1
.TAPE SET,FUEL TANK *{BODY COLOR:YU1}*
$68.35¢34 175
#21
CUSHION,TANK COVER BRKT NO.1
$8.97¢4 488
#2-2
.TAPE SET,FUEL TANK (GRAY/BLA K) *{BODY COLOR:YVB}*
$68.35¢34 175
#22
.FASTENER
$13.19¢6 594
#2-3
.TAPE SET,FUEL TANK *{BODY COLOR:B1F}*
$68.35¢34 175
#23
.CUSHION, TANK COVER CTR NO.2
$6.15¢3 075
#24
BOLT (6X12)
$2.56¢1 281
#25
HOSE,FUEL TANK DRAIN NO.2
$21.96¢10 981
#26
HOSE,FUEL TANK DRAIN NO.1
$20.19¢10 094
#27
3 WAY
$6.35¢3 175
