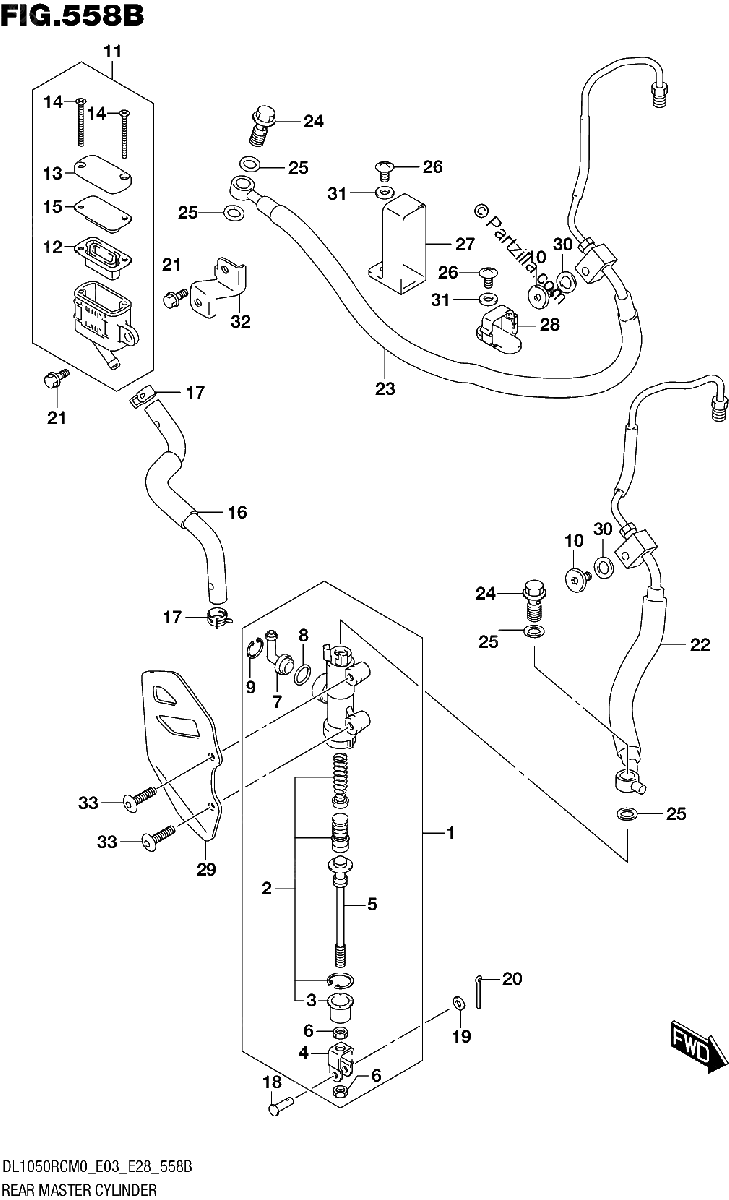

REAR MASTER CYLINDER DL1050RQ
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CYLINDER ASSY, REAR MASTER
$296.16¢148 080
#2
.PISTON / CAP SET
$44.24¢22 120
#3
..BOOT
$5.99¢2 996
#4
.YOKE
$20.95¢10 476
#5
.ROD, PUSH
$42.12¢21 062
#6
.NUT
$2.13¢1 064
#7
.CONNECTOR
$7.69¢3 847
#8
.O RING
$3.36¢1 679
#9
.CIRCLIP
$4.47¢2 237
#10
SCREW (6X16)
$4.02¢2 012
#11
TANK ASSY,RESERVOIR
$38.26¢19 130
#12
.DIAPHRAGM
$7.82¢3 910
#13
.CAP
$17.86¢8 930
#14
.SCREW
$5.52¢2 760
#15
.PLATE, DIAPHRAGM
$7.44¢3 720
#16
HOSE,RR RESERVOIR TANK
$26.53¢13 265
#17
CLIP
No Disponible
#18
PIN (6X18.2)
$4.45¢2 225
#19
WASHER
$2.20¢1 098
#20
COTTER PIN
$1.46¢730
#21
BOLT
$2.42¢1 208
#22
HOSE ASSY,RR BK MASTER TO UNI
$127.02¢63 509
#23
HOSE ASSY,RR UNIT TO BK CLPR
$131.24¢65 619
#24
UNION
$6.97¢3 484
#25
WASHER (10X15X1.5)
$2.20¢1 098
#26
SCREW
$2.15¢1 075
#27
GUIDE, REAR BRAKE HOSE
No Disponible
#28
GUIDE, REAR BRAKE HOSE
No Disponible
#29
COVER,REAR MASTER CYLINDER
$39.54¢19 769
#30
CUSHION, REAR BRAKE HOSE
$2.93¢1 466
#31
WASHER, REAR BRAKE HOSE GUIDE
No Disponible
#32
BRACKET,RR RSVR TANK
$10.04¢5 020
#33
SCREW (6X25)
$3.50¢1 748
