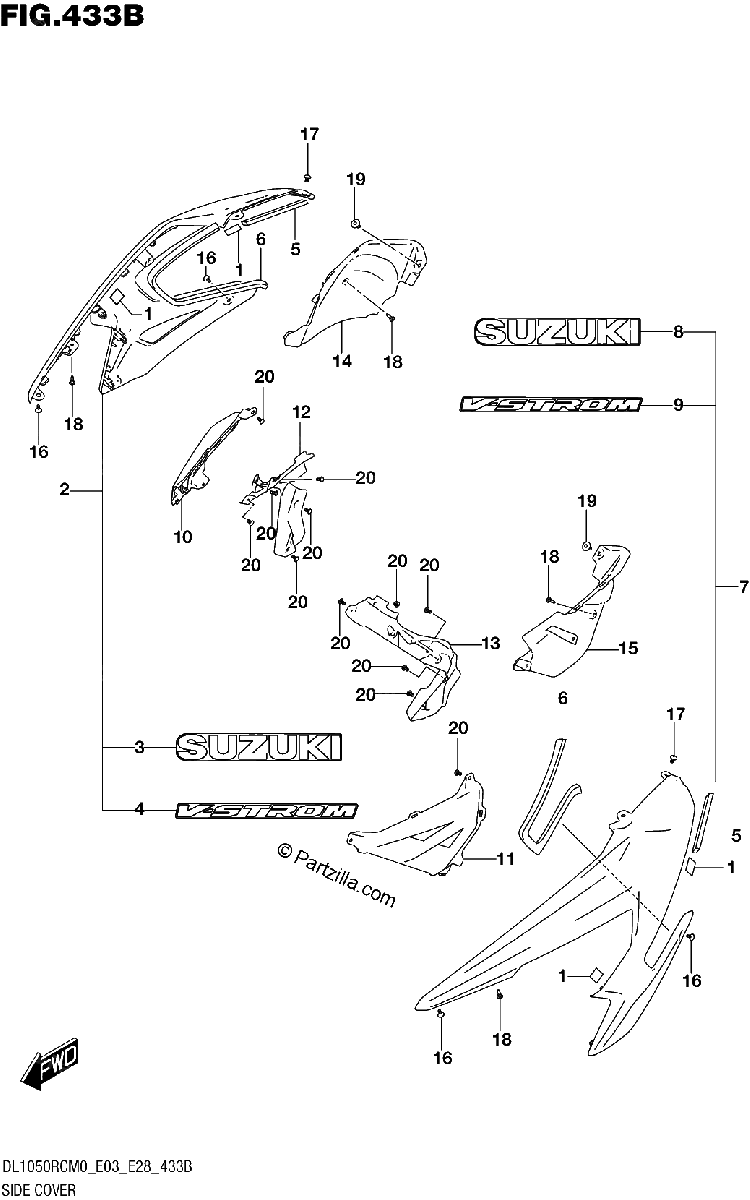

SIDE COVER DL1050RQ
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
.FASTENER,REAR COMB LAMP (33X 5)
$19.12¢9 562
#5
CUSHION,SIDE COVER NO.1
$7.50¢3 749
#6
CUSHION,SIDE COVER NO.2
$9.03¢4 514
#10
COVER,SIDE NO.2 RH
$37.26¢18 630
#11
COVER,SIDE NO.2 LH
$40.23¢20 114
#12
COVER,SIDE INNER LWR RH
$56.04¢28 020
#13
COVER,SIDE INNER LWR LH
$56.04¢28 020
#14
COVER,SIDE INNER UPR RH
$26.88¢13 438
#15
COVER,SIDE INNER UPR LH
$26.88¢13 438
#16
SCREW
$2.42¢1 208
#17
SCREW (6X10)
$3.36¢1 679
#18
CLIP
$3.31¢1 656
#19
CLIP
$2.75¢1 374
#20
SCREW
$2.12¢1 058
#2-1
COVER,SIDE RH (BLACK) *{BODY COLOR:YVB}*
$295.38¢147 689
#2-2
COVER,SIDE RH (WHITE) *{BODY COLOR:B1G}*
No Disponible
#2-3
COVER,SIDE RH (GRAY) *{BODY COLOR:BTH}*
$231.15¢115 575
#3-1
.EMBLEM,"SUZUKI" RH (GRAY/BLA K) *{BODY COLOR:YVB}*
$20.84¢10 419
#3-2
.EMBLEM,"SUZUKI" RH *{BODY COLOR:B1G}*
No Disponible
#3-3
.EMBLEM,"SUZUKI" RH (BLACK/GR Y) *{BODY COLOR:BTH}*
$24.81¢12 403
#4-1
.EMBLEM,SIDE COVER RH *{BODY COLOR:YVB}*
$26.77¢13 386
#4-2
.EMBLEM,SIDE COVER RH *{BODY COLOR:B1G}*
No Disponible
#4-3
.EMBLEM,SIDE COVER RH *{BODY COLOR:BTH}*
No Disponible
#7-1
COVER,SIDE LH (BLACK) *{BODY COLOR:YVB}*
$328.09¢164 047
#7-2
COVER,SIDE LH (WHITE) *{BODY COLOR:B1G}*
No Disponible
#7-3
COVER,SIDE LH (GRAY) *{BODY COLOR:BTH}*
$242.67¢121 337
#8-1
.EMBLEM,"SUZUKI" LH (GRAY/BLA K) *{BODY COLOR:YVB}*
$20.84¢10 419
#8-2
.EMBLEM,"SUZUKI" LH *{BODY COLOR:B1G}*
No Disponible
#8-3
.EMBLEM,"SUZUKI" LH (BLACK/GR Y) *{BODY COLOR:BTH}*
$24.81¢12 403
#9-1
.EMBLEM,SIDE COVER LH *{BODY COLOR:YVB}*
$26.77¢13 386
#9-2
.EMBLEM,SIDE COVER LH *{BODY COLOR:B1G}*
No Disponible
#9-3
.EMBLEM,SIDE COVER LH *{BODY COLOR:BTH}*
No Disponible
