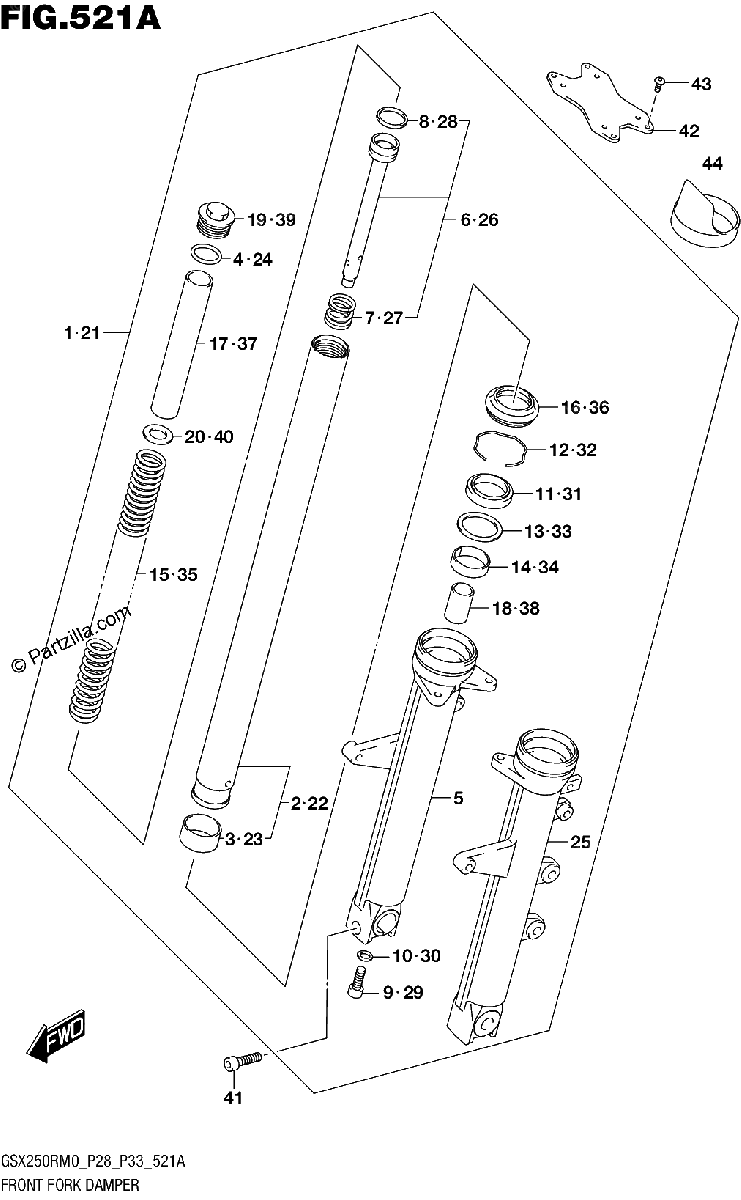

FRONT FORK DAMPER GSX250RM0 P28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1657.00¢828 500
#2
.TUBE, INNER
$398.21¢199 106
#3
..PISTON
$23.16¢11 581
#4
.O RING
$5.13¢2 563
#5
.TUBE, OUTER
$772.06¢386 031
#6
.CYLINDER
$132.81¢66 406
#7
..SPRING, REBOUND
$19.15¢9 575
#8
..RING
$4.38¢2 188
#9
.BOLT
$7.29¢3 644
#10
.GASKET
$2.68¢1 338
#11
.OIL SEAL
$34.13¢17 063
#12
.SNAP RING
$8.09¢4 044
#13
.WASHER
$4.69¢2 344
#14
.METAL, SLIDE
$15.49¢7 744
#15
.SPRING, MAIN
$108.71¢54 356
#16
.SEAL, DUST
$33.35¢16 675
#17
.SPACER
No Disponible
#18
.PIECE, OIL LOCK
$19.98¢9 988
#19
.CAP
$157.46¢78 731
#20
.WASHER
$12.71¢6 356
#21
DAMPER ASSY, FRONT FORK LH
$1657.00¢828 500
#22
.TUBE, INNER
$398.21¢199 106
#23
..PISTON
$23.16¢11 581
#24
.O RING
$5.13¢2 563
#25
.TUBE, OUTER
$1149.27¢574 637
#26
.CYLINDER
$132.81¢66 406
#27
..SPRING, REBOUND
$19.15¢9 575
#28
..RING
$4.38¢2 188
#29
.BOLT
$7.29¢3 644
#30
.GASKET
$2.68¢1 338
#31
.OIL SEAL
$34.13¢17 063
#32
.SNAP RING
$8.09¢4 044
#33
.WASHER
$4.69¢2 344
#34
.METAL, SLIDE
$15.49¢7 744
#35
.SPRING, MAIN
$108.71¢54 356
#36
.SEAL, DUST
$33.35¢16 675
#37
.SPACER
No Disponible
#38
.PIECE, OIL LOCK
$19.98¢9 988
#39
.CAP
$157.46¢78 731
#40
.WASHER
$12.71¢6 356
#41
BOLT
No Disponible
#42
STABILIZER, FRONT
No Disponible
#43
SCREW (6X16)
$4.34¢2 169
#44
PROTECTOR
$23.91¢11 956
