FRAME COVER DL1050RC

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

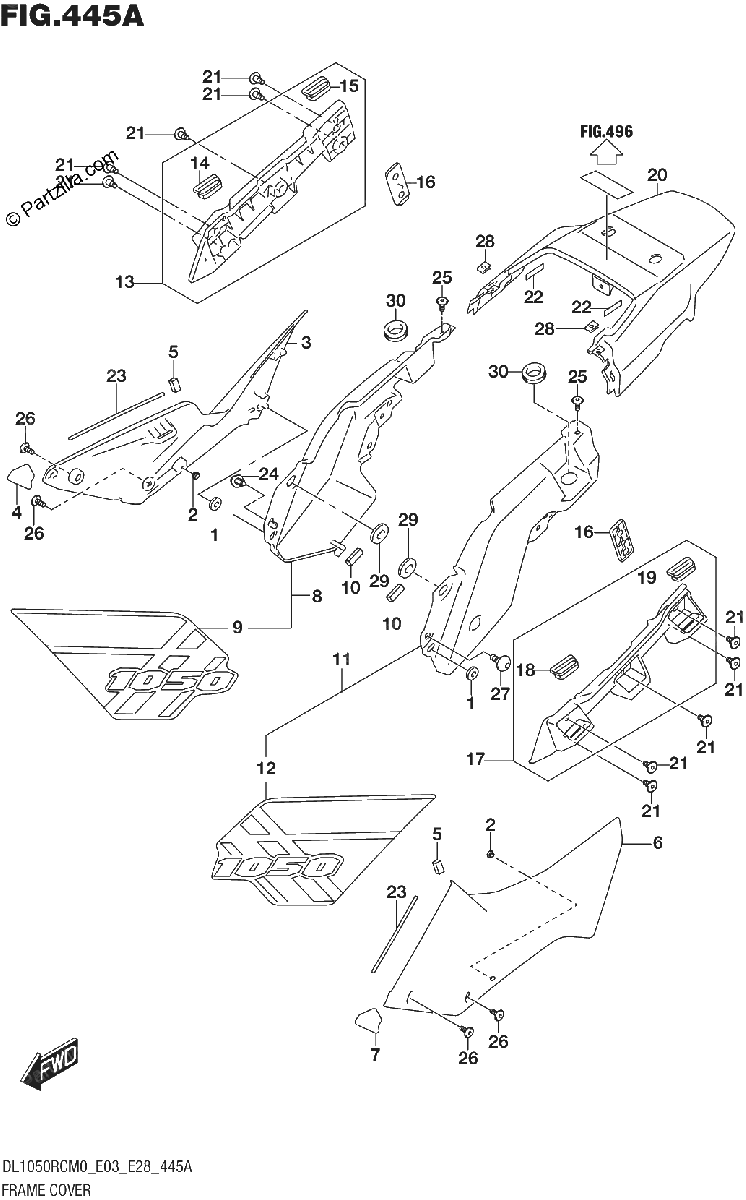

Diagrama de FRAME COVER DL1050RC

Repuestos

#1
44173-14J00
CUSHION, SIDE
$4.70¢2 352
1
#2
45148-27J00
CUSHION, SEAT MOUNT
$21.39¢10 695
1
#4
47121-06L00
PROTECTOR,FRAME COVER RH *{BODY COLOR:YU1,B1F}*
$54.62¢27 312
1
#5
47131-06L00
CUSHION,FRAME COVER FR RR
$7.28¢3 640
1
#7
47221-06L00
PROTECTOR,FRAME COVER LH *{BODY COLOR:YU1,B1F}*
$17.27¢8 637
1
#10
47312-06L00
CUSHION,FRM COV SIDE NO.5
$7.73¢3 864
1
#13
47510-06L00
BRKT,SIDE CASE UPR RH
$89.24¢44 620
1
#14
47811-06L00
.BUSH,SIDE CASE BRKT FR RH
$8.54¢4 272
1
#15
47911-06L00
.BUSH,SIDE CASE BRKT RR RH
$8.54¢4 272
1
#16
47510-28K00
SPACER,FRAME COVER
$22.00¢11 000
1
#17
47610-06L00
BRKT,SIDE CASE UPR LH
$89.24¢44 620
1
#18
47812-06L00
.BUSH,SIDE CASE BRKT FR LH
$8.54¢4 272
1
#19
47912-06L00
.BUSH,SIDE CASE BRKT RR LH
$8.54¢4 272
1
#21
47913-06L00
SCREW
$2.06¢1 029
1
#22
94415-40F00
TAPE,ABS UNIT HOLDER
$4.12¢2 059
1
#23
94417-24F00
CUSHION,FRAME COVER
$7.19¢3 594
1
#24
94479-35F00
CLIP
$6.16¢3 082
1
#25
09139-05091
SCREW
$2.42¢1 208
1
#26
09139-05091
SCREW
$2.42¢1 208
1
#27
09139-06169
SCREW (6X16)
$3.36¢1 679
1
#28
09148-05052
NUT
$3.65¢1 823
1
#29
09320-08029
CUSHION
$2.90¢1 449
1
#30
09320-20010
CUSHION
$3.24¢1 621
1
#3-1
47111-06L00-YU1
COVER,FRAME FRONT RH (YELLOW) *{BODY COLOR:YU1}*
$263.26¢131 629
1
#3-2
47111-06L10
COVER,FRAME FRONT RH *{BODY COLOR:YVB}*
$116.35¢58 173
1
#3-3
47111-06L00-YUH
COVER,FRAME FRONT RH (WHITE) *{BODY COLOR:B1F}*
$263.26¢131 629
1
#6-1
47211-06L00-YU1
COVER,FRAME FRONT LH (YELLOW) *{BODY COLOR:YU1}*
$263.26¢131 629
1
#6-2
47211-06L10
COVER,FRAME FRONT LH *{BODY COLOR:YVB}*
$122.56¢61 278
1
#6-3
47211-06L00-YUH
COVER,FRAME FRONT LH (WHITE) *{BODY COLOR:B1F}*
$277.38¢138 690
1
#8-1
47310-06L00-YU1
COVER,FRAME RH (YELLOW) *{BODY COLOR:YU1}*
$236.93¢118 467
1
#8-2
47310-06L00-YVB
COVER,FRAME RH (BLACK) *{BODY COLOR:YVB}*
$212.31¢106 157
1
#8-3
47310-06L00-QRE
COVER,FRAME RH (ORANGE) *{BODY COLOR:B1F}*
$241.99¢120 997
1
#9-1
68135-06L00-B4K
.TAPE,FRAME COVER RH *{BODY COLOR:YU1}*
$36.28¢18 141
1
#9-2
68135-06L00-B4L
.TAPE,FRAME COVER RH *{BODY COLOR:YVB}*
$36.28¢18 141
1
#9-3
68135-06L00-B4M
.TAPE,FRAME COVER RH *{BODY COLOR:B1F}*
$36.28¢18 141
1
#11-1
47350-06L00-YU1
COVER,FRAME LH (YELLOW) *{BODY COLOR:YU1}*
$231.44¢115 719
1
#11-2
47350-06L00-YVB
COVER,FRAME LH (BLACK) *{BODY COLOR:YVB}*
$212.63¢106 318
1
#11-3
47350-06L00-QRE
COVER,FRAME LH (ORANGE) *{BODY COLOR:B1F}*
$242.10¢121 049
1
#12-1
68145-06L00-B4K
.TAPE,FRAME COVER LH *{BODY COLOR:YU1}*
$36.28¢18 141
1
#12-2
68145-06L00-B4L
.TAPE,FRAME COVER LH *{BODY COLOR:YVB}*
$36.28¢18 141
1
#12-3
68145-06L00-B4M
.TAPE,FRAME COVER LH *{BODY COLOR:B1F}*
$36.28¢18 141
1
#20-1
47711-06L00-YU1
COVER,FRAME CTR (YELLOW) *{BODY COLOR:YU1}*
$270.86¢135 430
1
#20-2
47711-06L00-YVB
COVER,FRAME CTR (BLACK) *{BODY COLOR:YVB}*
$236.87¢118 433
1
#20-3
47711-06L00-QRE
COVER,FRAME CTR (ORANGE) *{BODY COLOR:B1F}*
$274.22¢137 109
1
