FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

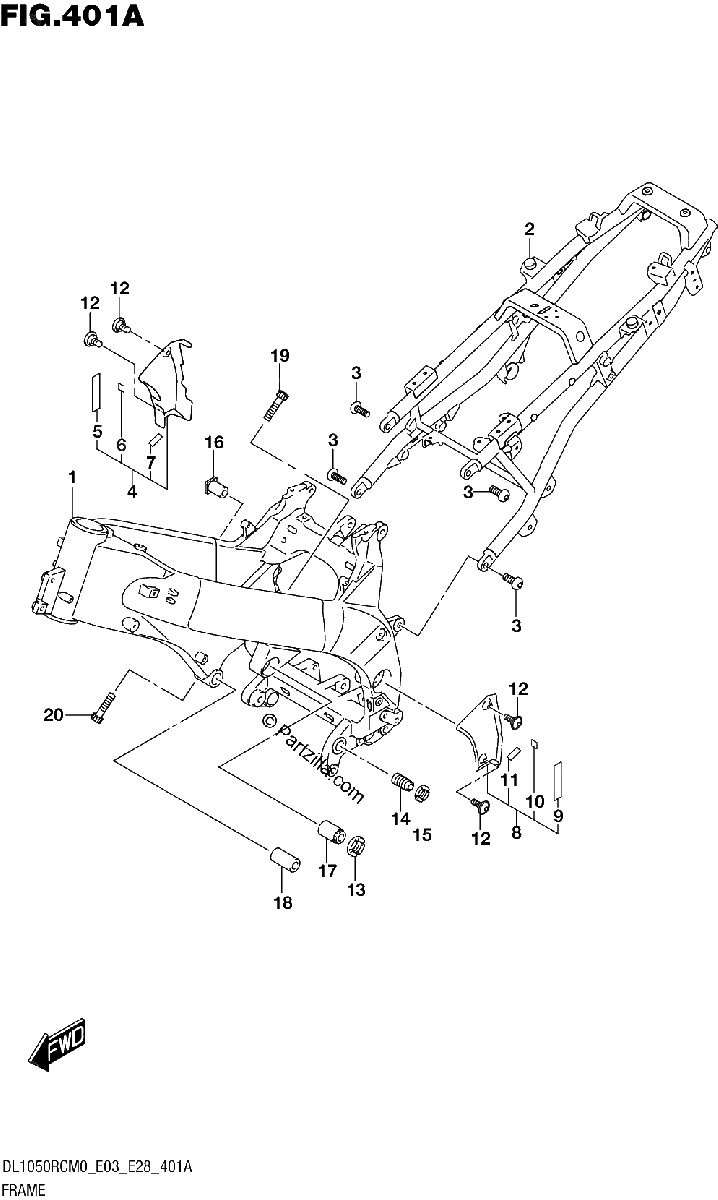

Diagrama de FRAME

Repuestos

#1
41100-31J20-YAP
FRAME (BLACK)
$4870.68¢2 435 338
1
#2
41200-31J30-YAP
RAIL,SEAT (BLACK)
$987.79¢493 896
1
#3
09139-10006
BOLT,SEAT RAIL
$5.06¢2 530
1
#4
43580-31J00
COVER, PIVOT, RH
$29.04¢14 519
1
#5
33652-38A10
CUSHION, FI (20X90X2)
$6.20¢3 099
1
#6
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.09¢2 047
1
#7
94429-21E00
.CUSHION, PIVOT COVER NO.2
$3.82¢1 909
1
#8
43590-31J00
COVER, PIVOT LH
$29.04¢14 519
1
#9
33652-38A10
CUSHION, FI (20X90X2)
$6.20¢3 099
1
#10
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.09¢2 047
1
#11
94429-21E00
.CUSHION, PIVOT COVER NO.2
$3.82¢1 909
1
#12
09139-05092
SCREW
$2.67¢1 334
1
#13
41922-19F20
NUT, ADJUSTER CENTER
$23.48¢11 742
1
#14
41921-16G00
BOLT, ADJUSTER LOWER
$29.15¢14 576
1
#15
41922-33E20
NUT, ADJUSTER LOWER
No Disponible
1
#16
41941-19F01
SPACER, ADJUSTER UPPER
$50.08¢25 041
1
#17
41921-47H00
BOLT, CRANK CASE ADJUST
$65.34¢32 671
1
#18
41942-02F00
SPACER, ENG HEAD MTG RR LH
$35.65¢17 825
1
#19
07130-0840B
BOLT
$4.29¢2 145
1
#20
07130-0840B
BOLT
$4.29¢2 145
1
