CYLINDER HEAD FRONT DL1050RC

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

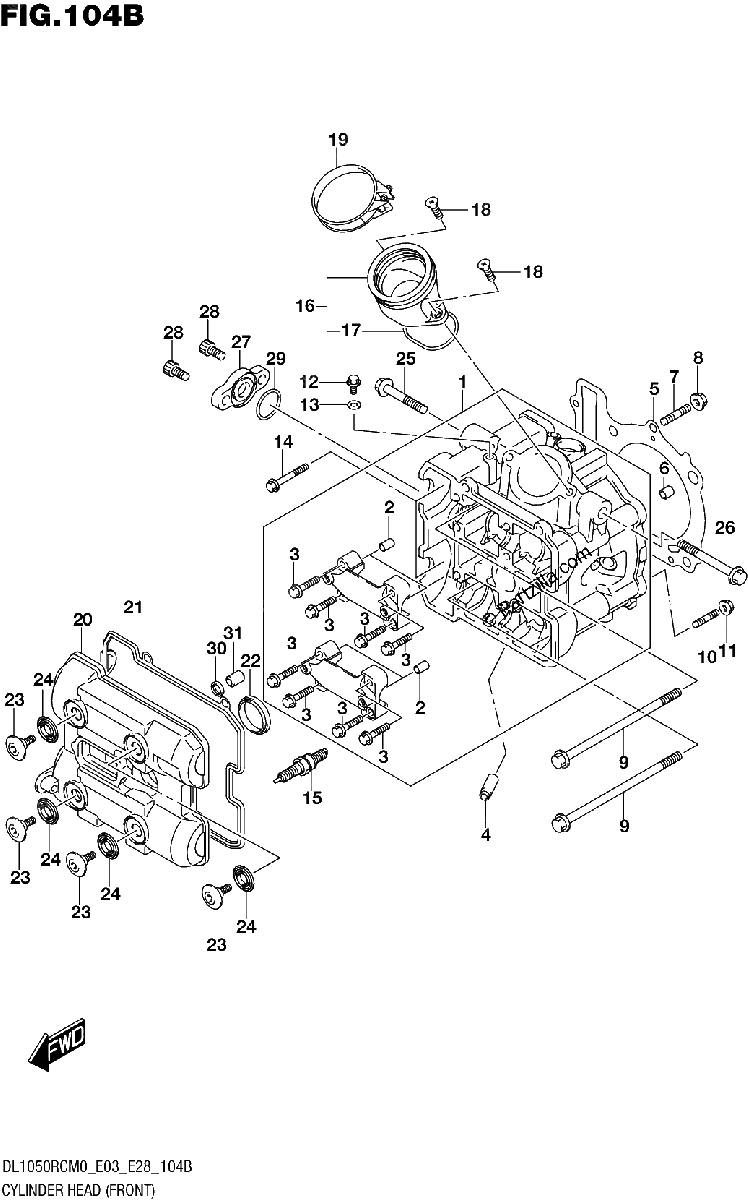

Diagrama de CYLINDER HEAD FRONT DL1050RC

Repuestos

#1
11100-31J20
HEAD ASSY,CYLINDER FRONT
$1223.65¢611 825
1
#2
09206-08001
.PIN (8X11)
$2.30¢1 150
1
#3
09103-06266
.BOLT (6X40)
$2.78¢1 388
1
#4
11115-32E70
GUIDE, VALVE (OS:0.3) | OPT
$52.96¢26 481
1
#5
11141-31J00
GASKET, CYLINDER HEAD
$70.44¢35 219
1
#6
04211-13189
PIN
$2.85¢1 425
1
#7
09108-08143
STUD BOLT
$4.97¢2 488
1
#8
08316-1008B
NUT
$3.45¢1 725
1
#9
11117-33H00
BOLT (10X175)
$13.25¢6 625
1
#10
09108-06096
STUD BOLT
$1.56¢781
1
#11
08316-1006B
NUT
$3.25¢1 625
1
#12
01550-0612A
BOLT
$2.56¢1 281
1
#13
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#14
09103-06220
BOLT (6X60)
$3.25¢1 625
1
#15
09482-00635
SPARK PLUG (LMAR8BI-9) | NGK
$28.35¢14 175
1
#16
13101-06L00
PIPE ASSY,INTAKE FRONT
$81.27¢40 637
1
#17
09280-55005
.O RING (D:2.4,ID:55.6)
$7.66¢3 831
1
#18
02122-0616B
SCREW
$2.58¢1 288
1
#19
13826-22H00
.CLAMP
$6.26¢3 131
1
#20
11171-06L00
COVER,CYLINDER HEAD FRONT
$374.03¢187 013
1
#21
11173-02F00
GASKET, CYLINDER HEAD COVER
$43.88¢21 938
1
#22
11178-17E00
GASKET, CYLINDER HEAD COVER
$7.92¢3 963
1
#23
09106-07021
BOLT (7X17.5)
$5.30¢2 650
1
#24
11191-27E00
WASHER
$4.85¢2 425
1
#25
01550-1085B
BOLT,ENG MTG HEAD FRONT RH
No Disponible
1
#26
09103-10475
BOLT,ENG MTG HEAD FRONT LH
$7.77¢3 887
1
#27
11134-31J10
COVER,CYL HEAD NO.2
$31.56¢15 781
1
#28
09106-06075
BOLT (6X12)
$3.25¢1 625
1
#29
09280-19005
O RING (D:2.4,ID:19)
$3.06¢1 531
1
#30
11182-35F10
GASKET, 2ND AIR PASSAGE
$5.36¢2 681
1
#31
09206-10016
PIN (8.2X10X13)
$9.59¢4 794
1
