REAR SWINGINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

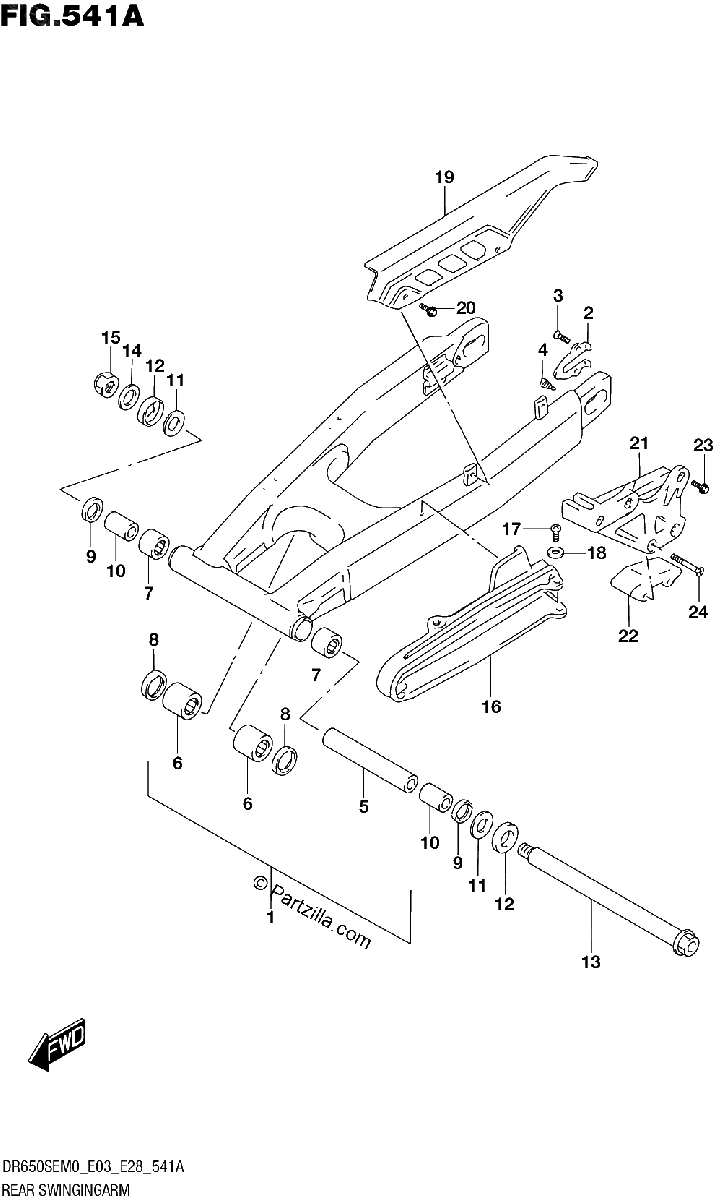

Diagrama de REAR SWINGINGARM

Repuestos

#1
61000-32E30
SWINGING ARM ASSY, REAR
$2021.78¢1 010 890
1
#2
61128-29E00
.PLATE, REAR SWINGING ARM AXL
$20.69¢10 344
1
#3
09126-05009
.SCREW (5X8)
$2.75¢1 374
1
#4
61431-13E10
.STOPPER, CHAIN ADJUSTER
$8.68¢4 341
1
#5
61282-32E00
.SPACER, PIVOT
No Disponible
1
#6
09263-20071
.BEARING (20X27X23.5)
$28.43¢14 214
1
#7
09263-22017
.BEARING (22X29X30)
$24.43¢12 213
1
#8
09283-20031
.OIL SEAL (20X27X5)
$5.67¢2 835
1
#9
09285-22006
OIL SEAL
$4.14¢2 070
1
#10
61251-14D00
SPACER, PIVOT BEARING
$34.73¢17 365
1
#11
08211-17341
WASHER
$3.02¢1 512
1
#12
61262-28C11
COVER,DUST
$7.69¢3 847
1
#13
64711-08D00
SHAFT, PIVOT
$126.93¢63 463
1
#14
08322-0116A
WASHER
$2.23¢1 116
1
#15
09159-16007
NUT
$13.63¢6 814
1
#16
61273-13E01
BUFFER, CHAIN TOUCH DEFENSE
$50.28¢25 139
1
#17
02142-0612A
SCREW
$1.64¢822
1
#18
09169-06057
WASHER
$3.50¢1 748
1
#19
61311-01A03
CASE, CHAIN
$71.52¢35 759
1
#20
09116-06096
BOLT (6X10)
$2.74¢1 368
1
#21
61340-15E00
GUIDE, CHAIN
$87.31¢43 654
1
#22
61348-15E00
DEFENSE, CHAIN GUIDE
$32.52¢16 261
1
#23
01550-0616A
BOLT
$2.36¢1 179
1
#24
02122-0650A
SCREW
$1.85¢926
1
