REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

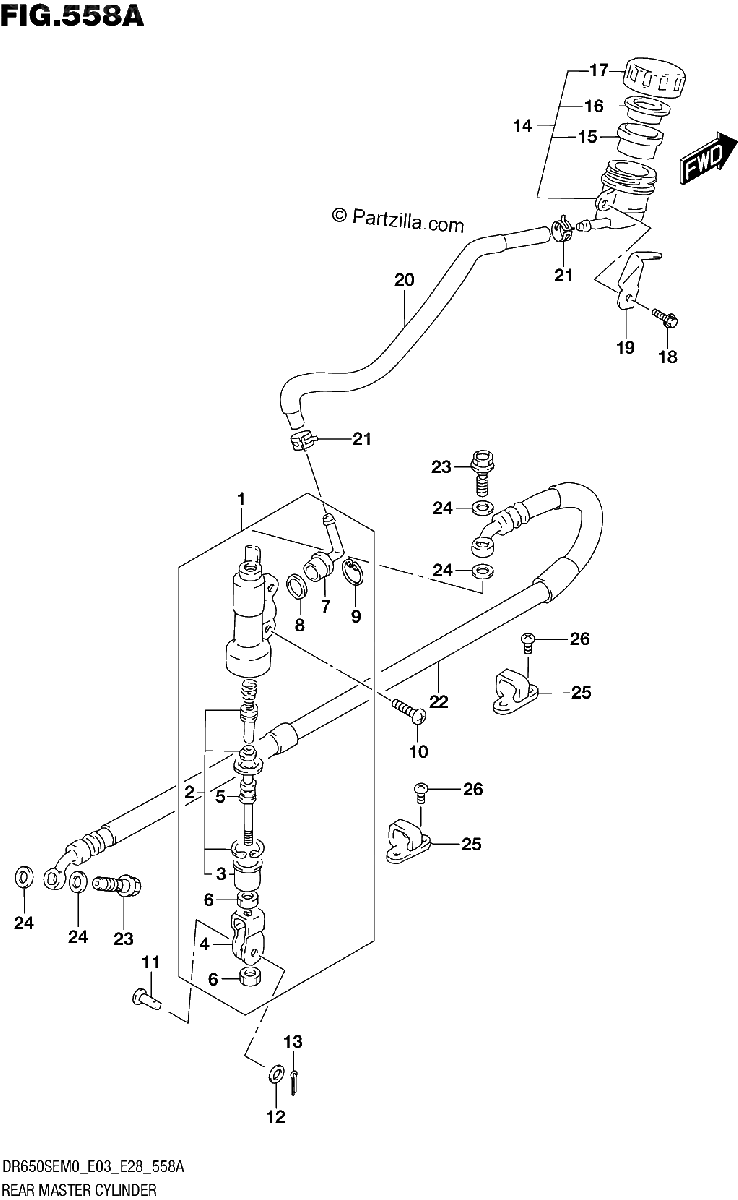

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
69600-32E00
CYLINDER ASSY, REAR MASTER
$385.11¢192 556
1
#2
69600-04820
.PISTON / CAP SET
$35.41¢17 704
1
#3
69691-00A00
..BOOT
$5.99¢2 996
1
#4
69692-13E00
.YOKE
$20.68¢10 339
1
#5
69670-27A30
.ROD, PUSH
$32.58¢16 290
1
#6
69693-05A00
.NUT
$2.13¢1 064
1
#7
69672-00B20
.CONNECTOR
$7.69¢3 847
1
#8
69686-34200
.O RING
$3.36¢1 679
1
#9
69674-00B20
.CIRCLIP
$4.47¢2 237
1
#10
09139-06067
SCREW (6X16)
$2.82¢1 409
1
#11
09200-08048
PIN
$3.36¢1 679
1
#12
09160-08090
WASHER (8.5X14X1.6)
$2.85¢1 426
1
#13
04111-2015A
COTTER PIN
$1.46¢730
1
#14
69740-03D00
TANK ASSY, RESERVOIR
$94.28¢47 139
1
#15
69667-00B20
.DIAPHRAGM
$22.91¢11 454
1
#16
69668-00B20
.PLATE
$9.52¢4 761
1
#17
69669-03D00
.CAP
$28.12¢14 059
1
#18
01550-0616A
BOLT
$2.36¢1 179
1
#19
69743-14D10
GUARD, TANK CAP
$8.54¢4 272
1
#20
69730-32E00
HOSE, RESERVOIR TANK
$61.12¢30 561
1
#21
09401-12404
CLIP
$2.84¢1 420
1
#22
69480-32E02
HOSE,REAR BRAKE
$79.75¢39 876
1
#23
09360-10062
UNION
$6.97¢3 484
1
#24
09161-10009
WASHER (10X15X1.5)
$2.20¢1 098
1
#25
61196-27C30
GUIDE, REAR BRAKE HOSE
$6.77¢3 387
1
#26
02142-0510A
SCREW
$2.12¢1 058
1
