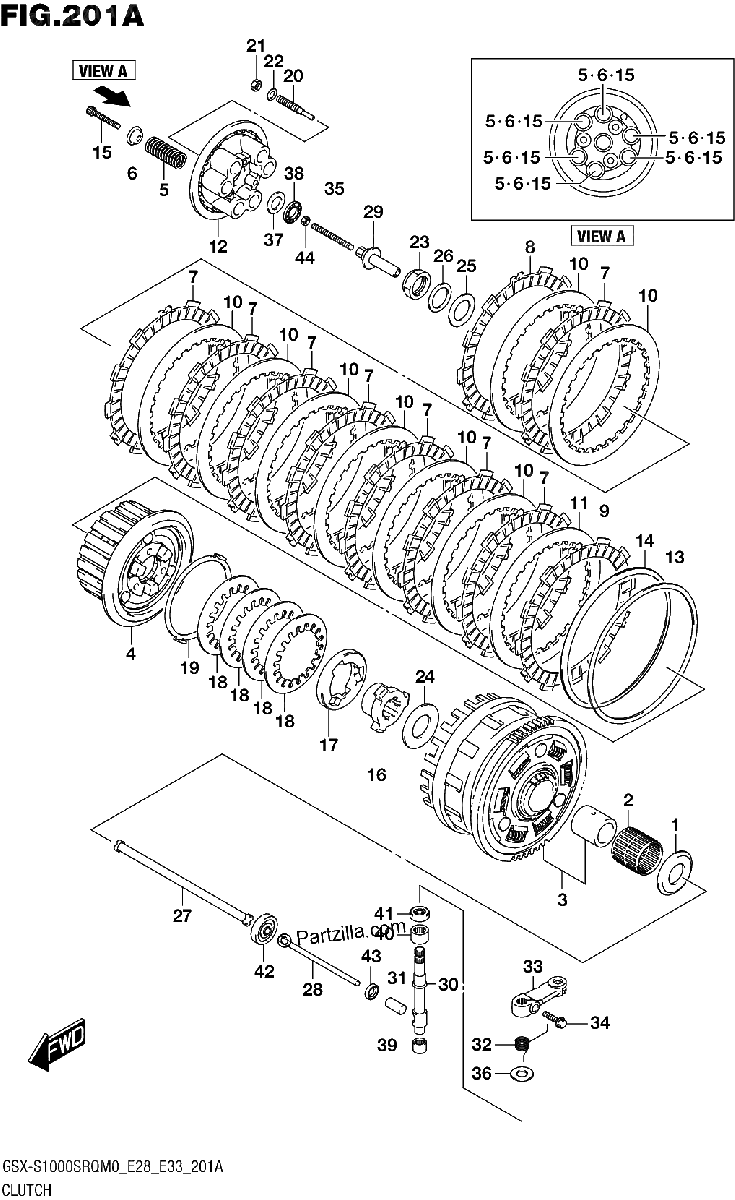

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WASHER (25X54X2.4)
$19.03¢9 513
#2
BEARING (35X40X35.8)
$48.35¢24 175
#3
GEAR ASSY, PRIMARY DRIVEN (NT:73)
$695.71¢347 856
#4
HUB, CLUTCH SLEEVE
$322.59¢161 294
#5
SPRING, CLUTCH
$11.60¢5 800
#6
WASHER, CLUTCH SPRING
$7.66¢3 831
#7
PLATE, CLUTCH DRIVE NO.1 (T:2.7)
$25.95¢12 975
#8
PLATE, CLUTCH DRIVE NO.2 (T:2.7)
$47.16¢23 581
#9
PLATE, CLUTCH DRIVE NO.3
$33.46¢16 731
#10
PLATE, CLUTCH DRIVEN NO.1 (T:2.3)
$16.73¢8 363
#11
PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
$22.48¢11 238
#12
DISC, CLUTCH PRESSURE
$106.06¢53 031
#13
SEAT, WAVE WASHER
$16.94¢8 469
#14
WASHER, CLUTCH PLATE WAVE
$24.47¢12 237
#15
BOLT, CLUTCH SPRING
$4.00¢2 000
#16
CAM, CLUTCH DRIVE
$190.50¢95 250
#17
CAM, CLUTCH DRIVEN
$160.91¢80 456
#18
WASHER, CAM REACTION WAVE
$18.19¢9 094
#19
WASHER, CAM REACTION SEAT
$21.79¢10 894
#20
LIFTER, CLUTCH PRESCURE DISC
$12.89¢6 444
#21
NUT, CL PRESS DISC
$3.52¢1 763
#22
SHIM (8.8X14X1)
$2.50¢1 250
#23
NUT
$15.53¢7 763
#24
WASHER (25X50X2.5)
$13.85¢6 925
#25
WASHER (25X41X2.5)
$13.75¢6 875
#26
WASHER
$6.04¢3 019
#27
ROD, CLUTCH PUSH RH
$27.65¢13 825
#28
ROD, CLUTCH PUSH LH
$15.86¢7 931
#29
PIECE, CLUTCH PUSH
$66.16¢33 081
#30
CAMSHAFT, CLUTCH RELEASE
$76.81¢38 406
#31
CAP, CLUTCH PUSH ROD
$13.04¢6 519
#32
SPRING, CLUTCH RELEASE RETURN
$3.88¢1 938
#33
ARM, CLUTCH RELEASE
$75.00¢37 500
#34
BOLT,GEAR SHIFT LINK ARM
$2.50¢1 250
#35
SCREW (6X73)
$8.09¢4 044
#36
WASHER (10.5X24X1)
$2.42¢1 213
#37
WASHER (15.5X28X1)
$4.58¢2 288
#38
BEARING (15X28X2)
$9.75¢4 875
#39
BEARING (10X14X10)
$15.90¢7 950
#40
BEARING (12X18X12)
$8.59¢4 294
#41
OIL SEAL (10X20X6)
$9.38¢4 688
#42
OIL SEAL (6X34X10.5)
$19.75¢9 875
#43
OIL SEAL (10X17X5)
$3.96¢1 981
#44
NUT
$2.39¢1 194
