REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

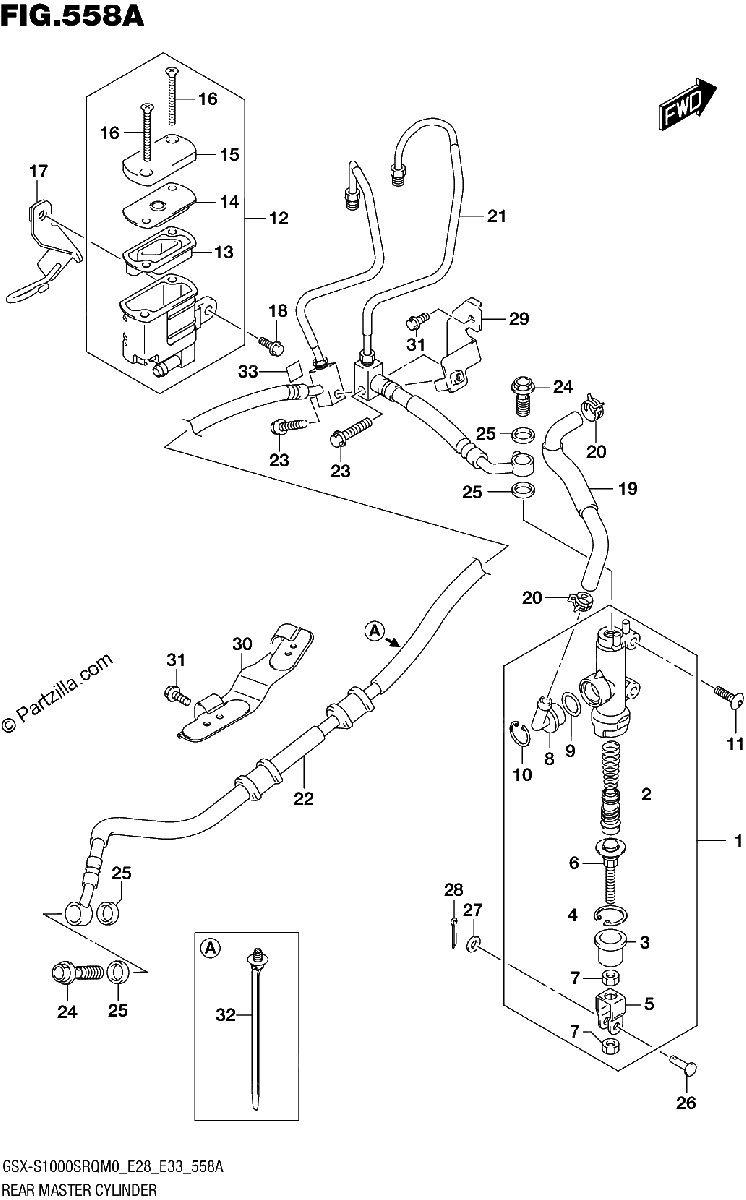

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
69600-47H30
CYLINDER ASSY, REAR MASTER
$297.56¢148 781
1
#2
69600-34810
.PISTON/CAP SET
$76.28¢38 138
1
#3
69691-00A00
..BOOT
$6.51¢3 256
1
#4
69665-47H00
.CIRCLIP
$6.78¢3 388
1
#5
69692-47H00
.YOKE
$18.84¢9 419
1
#6
69670-40A00
ROD, PUSH
$34.59¢17 294
1
#7
69693-47H00
.NUT
$3.35¢1 675
1
#8
69672-00B20
.CONNECTOR
$8.36¢4 181
1
#9
69686-34200
.O RING
$3.65¢1 825
1
#10
69674-00B20
.CIRCLIP
$4.86¢2 431
1
#11
09139-06224
BOLT,REAR MASTER CYLINDER
$4.85¢2 425
1
#12
69740-18K00
TANK ASSY, RESERVOIR
$33.50¢16 750
1
#13
69667-01H00
.DIAPHRAGM
$8.50¢4 250
1
#14
69668-01H00
.PLATE, DIAPHRAGM
$8.09¢4 044
1
#15
69669-18K00
.CAP
$19.41¢9 706
1
#16
69689-01H00
.SCREW
$6.00¢3 000
1
#17
69750-07L00
BRACKET,RR RESERVOIR TANK
No Disponible
1
#18
01547-0612A
BOLT
$2.63¢1 313
1
#19
69730-07L00
HOSE,RR RESERVOIR TANK
$21.65¢10 825
1
#20
09401-12412
CLIP
No Disponible
1
#21
69200-04K21
HOSE ASSY,RR BK MASTER TO UNI
No Disponible
1
#22
69400-04K21
HOSE ASSY,UNIT TO RR BK CLPR
$155.54¢77 769
1
#23
01547-0625A
BOLT
$2.63¢1 313
1
#24
09360-10042
UNION
$7.57¢3 787
1
#25
09161-10009
WASHER (10X15X1.5)
$2.39¢1 194
1
#26
09200-06068
PIN (6X18.2)
$4.84¢2 419
1
#27
08322-0106A
WASHER
$2.39¢1 194
1
#28
04111-2015A
COTTER PIN
$1.59¢794
1
#29
69260-04K00
CLAMP, RR BRAKE HOSE
$12.94¢6 469
1
#30
69270-04K00
GUIDE, RR BRAKE HOSE
$26.25¢13 125
1
#31
01547-0612A
BOLT
$2.63¢1 313
1
#32
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#33
69411-04K00
PROTECTOR,BRAKE HOSE
$3.23¢1 613
1
