550A REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

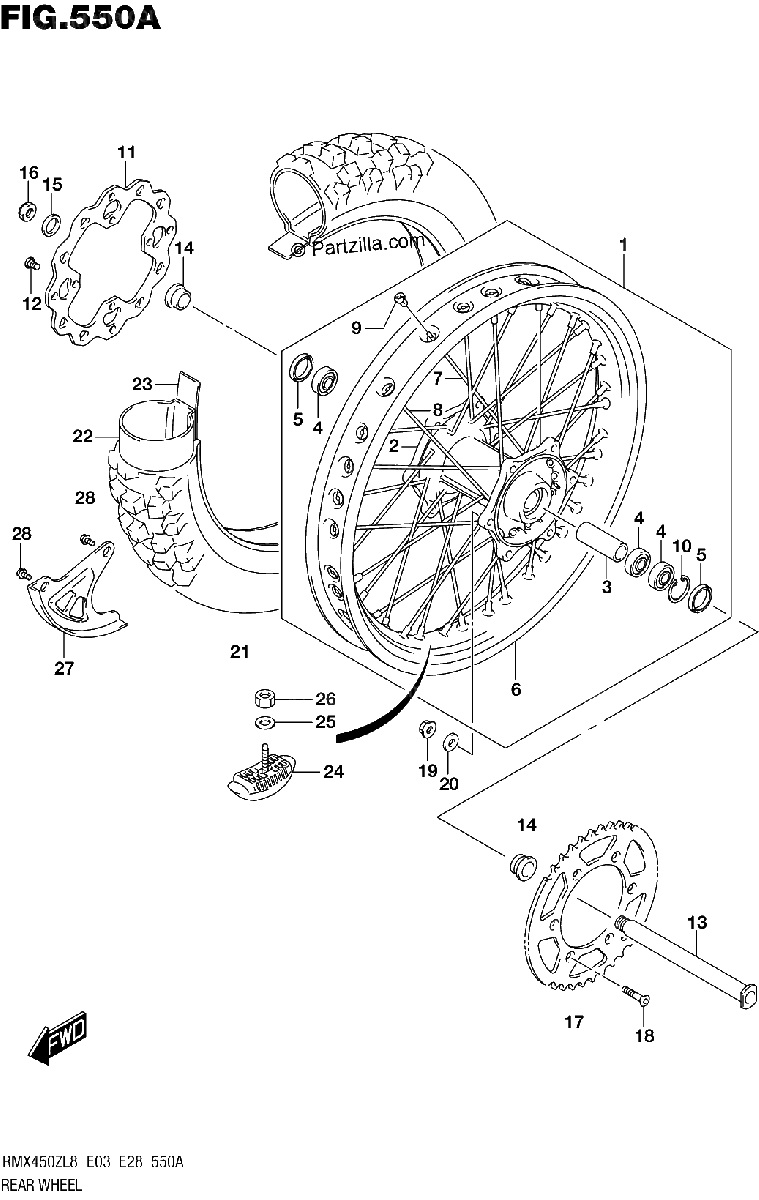

Diagrama de 550A REAR WHEEL

Repuestos

#1
64100-02J10
WHEEL ASSY, REAR
$1382.56¢691 281
1
#2
64111-35G20
.HUB, REAR WHEEL
$366.46¢183 231
1
#3
64731-35G01
.SPACER, REAR HUB BEARING
$53.40¢26 700
1
#4
09262-25139
.BEARING (25X42X9)
$60.75¢30 375
1
#5
09283-32045
.OIL SEAL (32X43X7)
$19.03¢9 513
1
#6
65311-02J10
.RIM, REAR WHEEL (18X2.15)
$504.47¢252 237
1
#7
65321-02J00
.SPOKE, WHEEL INNER
$8.16¢4 081
1
#8
65322-02J00
.SPOKE, WHEEL OUTER
$8.16¢4 081
1
#9
65325-35G10
.NIPPLE, WHEEL
$5.88¢2 938
1
#10
08331-41429
.CIRCLIP
$3.13¢1 563
1
#11
69211-28H10
DISC, REAR BRAKE
$282.41¢141 206
1
#12
09139-08022
SCREW (8X15)
$5.84¢2 919
1
#13
64711-35G10
AXLE, REAR
$158.63¢79 313
1
#14
64751-35G01
SPACER
$48.21¢24 106
1
#15
09160-22081
WASHER (22X35X2)
$3.65¢1 825
1
#16
64721-28H00
NUT, REAR AXLE
$24.44¢12 219
1
#17
64511-02J00
SPROCKET, REAR
No Disponible
1
#18
09120-08017
BOLT (8X28)
$3.38¢1 688
1
#19
09159-08133
NUT
$6.51¢3 256
1
#20
09160-08082
WASHER (8.5X16X1.2)
$2.14¢1 069
1
#21
65110-29F00
TIRE, REAR (110/100-18) (DUNLOP) *{SPORTS D756 110/100-18 64M}*
No Disponible
1
#22
65200-29F00
TUBE ASSY, WHEEL INNER
$102.35¢51 175
1
#23
65261-44AF0
PROTECTOR, INNER TUBE
$11.06¢5 531
1
#24
65270-29F00
STOPPER, BEAD
$73.90¢36 950
1
#25
08322-0108A
WASHER
$2.48¢1 238
1
#26
08310-0008A
NUT
$2.42¢1 213
1
#27
69231-37F20
COVER, REAR DISC
$22.06¢11 031
1
#28
09116-06197
BOLT (6X12)
$3.56¢1 781
1
