112A CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

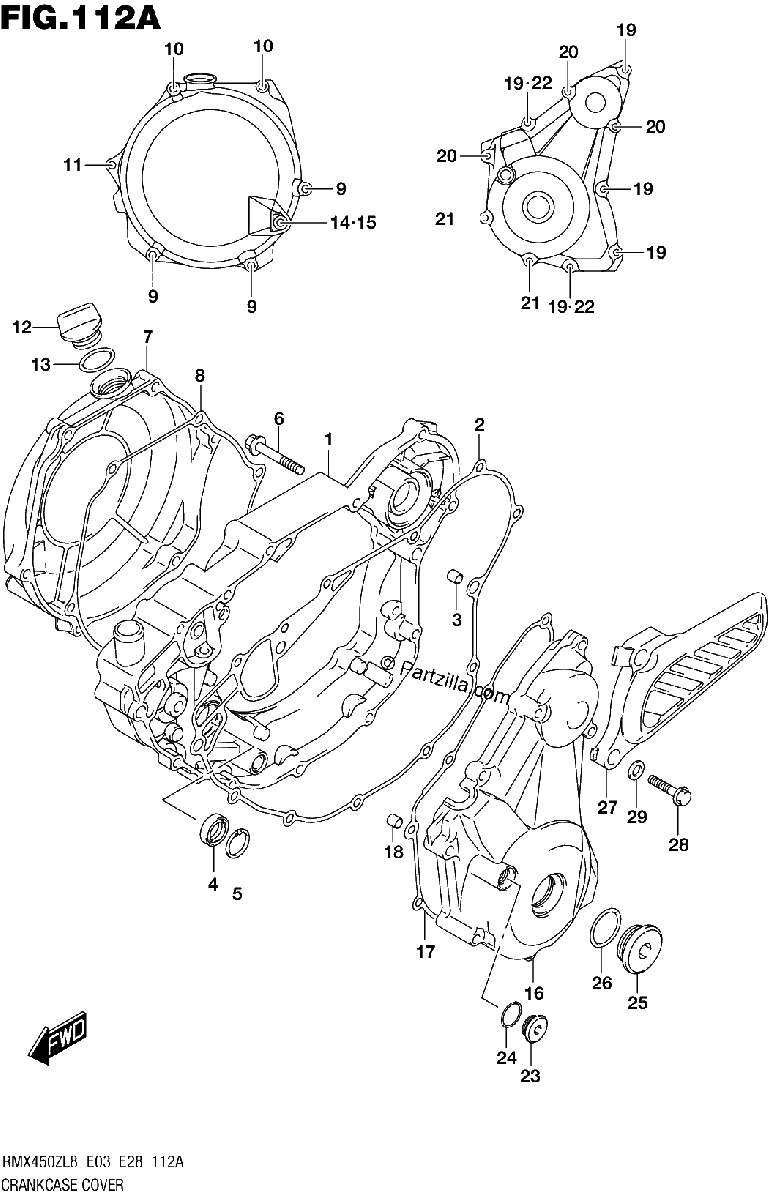

Diagrama de 112A CRANKCASE COVER

Repuestos

#1
11340-28H10
COVER, CLUTCH INNER
$331.02¢165 513
1
#2
11482-28H00
GASKET, CLUTCH COVER
$28.65¢14 325
1
#3
04211-09149
PIN
$2.14¢1 069
1
#4
09282-12012
OIL SEAL (12X22X6)
$23.60¢11 800
1
#5
08331-41249
CIRCLIP
$2.92¢1 463
1
#6
01547-0625A
BOLT
$2.63¢1 313
1
#7
11371-02J00
COVER, CLUTCH OUTER
$305.90¢152 950
1
#8
11484-28H00
GASKET, CLUTCH COVER OUTER
$18.94¢9 469
1
#9
01547-0625A
BOLT
$2.63¢1 313
1
#10
01547-0665A
BOLT
$3.05¢1 525
1
#11
01547-0670A
.BOLT
$3.65¢1 825
1
#12
09259-20008-XC0
PLUG
$8.81¢4 406
1
#13
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
#14
09139-06055
SCREW (6X10)
$1.86¢931
1
#15
09168-06004
GASKET (6.2X11X1.2)
$1.86¢931
1
#16
11351-02J00
COVER, MAGNETO
$402.34¢201 169
1
#17
11483-02J00
GASKET, MAGNETO COVER
$26.71¢13 356
1
#18
04211-09149
PIN
$2.14¢1 069
1
#19
01547-0625A
BOLT
$2.63¢1 313
1
#20
01547-0640A
.BOLT
$3.01¢1 506
1
#21
01547-0650A
.BOLT
$3.15¢1 575
1
#22
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#23
09248-12007
PLUG (12X9)
$6.94¢3 469
1
#24
09280-10016
O RING (D:1.9,ID:9.8)
$3.96¢1 981
1
#25
09259-26011
PLUG (26X9)
$12.98¢6 488
1
#26
09280-22008
O RING (D:3.1,ID:22.7)
$2.64¢1 319
1
#27
11360-02J00
COVER, ENGINE SPROCKET
No Disponible
1
#28
09103-06297
BOLT (6X30)
$4.31¢2 156
1
#29
08322-0106A
WASHER
$2.39¢1 194
1
