480H AIR INTAKE PIPE GSX R1000AL8 E28 FOR YSF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

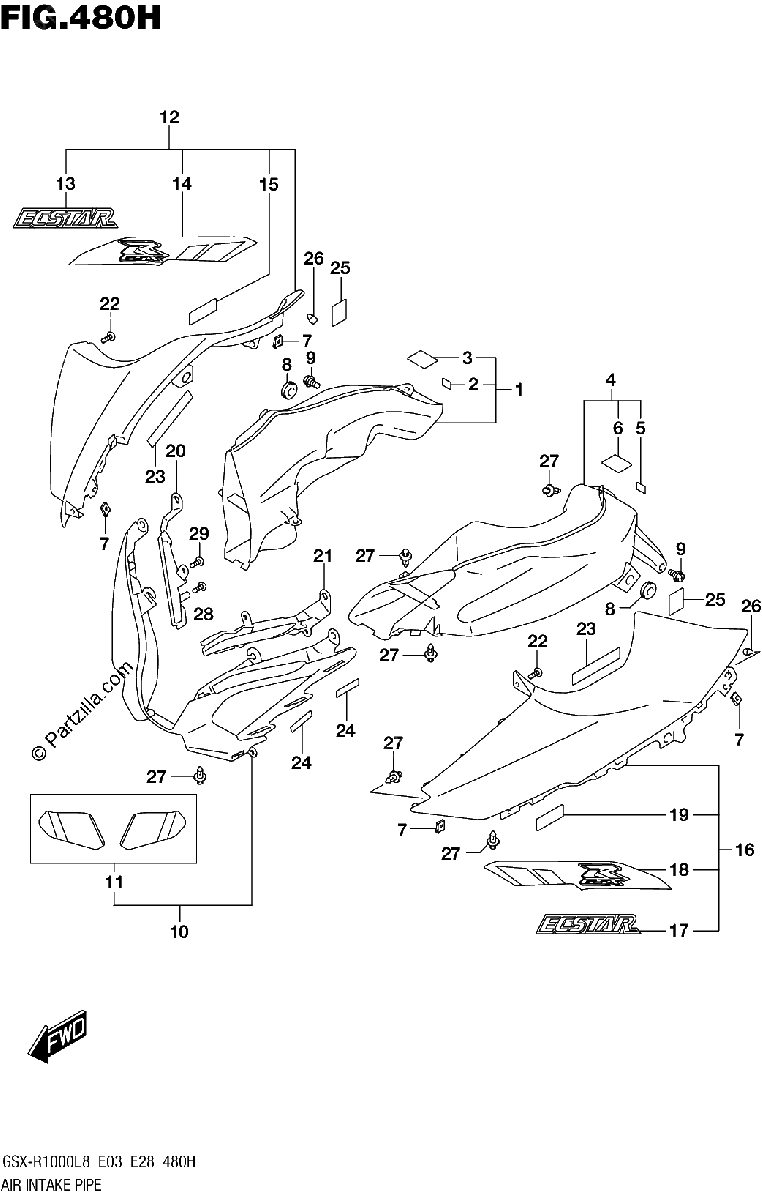

Diagrama de 480H AIR INTAKE PIPE GSX R1000AL8 E28 FOR YSF

Repuestos

#1
94420-17K00
PIPE, AIR INTAKE RH
$69.15¢34 575
1
#2
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.09¢2 047
1
#3
36930-60A10
CUSHION, COVER
$3.36¢1 679
1
#4
94430-17K00
PIPE, AIR INTAKE LH
$89.55¢44 775
1
#5
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.09¢2 047
1
#6
36930-60A10
CUSHION, COVER
$3.36¢1 679
1
#7
09148-05052
NUT
$3.65¢1 823
1
#8
09320-08028
CUSHION
$3.36¢1 679
1
#9
09111-06106
BOLT (6X12)
$2.64¢1 322
1
#10
94600-17K10-YSF
COVER, INTAKE (BLUE)
$158.24¢79 120
1
#11
68270-17K30-A3F
TAPE SET, INTAKE COVER
$41.48¢20 740
1
#12
94670-17K30-YKV
COVER, INTAKE RH (BLACK)
$233.91¢116 955
1
#13
68275-17K50-BRM
EMBLEM, INTAKE COVER
$21.55¢10 775
1
#14
68275-17K40-BRL
TAPE, INTAKE COVER RH
$39.31¢19 653
1
#15
73415-70A00
.PAD
$1.79¢897
1
#16
94680-17K30-YKV
COVER, INTAKE LH (BLACK)
$233.91¢116 955
1
#17
68275-17K50-BRM
EMBLEM, INTAKE COVER
$21.55¢10 775
1
#18
68276-17K40-BRL
TAPE, INTAKE COVER LH
$71.45¢35 725
1
#19
73415-70A00
.PAD
$1.79¢897
1
#20
94414-17K00
COVER, INTAKE UPPER RH
$11.61¢5 807
1
#21
94415-17K00
COVER, INTAKE UPPER LH
$11.61¢5 807
1
#22
09132-05050
SCREW (5X12)
$2.21¢1 104
1
#23
36930-82010
PROTECTOR, HARNESS
$3.45¢1 725
1
#24
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#25
94633-31J00
.CUSHION, COVER SIDE
$2.91¢1 455
1
#26
09321-06013
CUSHION
$1.82¢909
1
#27
09409-06314
CLIP
$3.31¢1 656
1
#28
03541-0412B
SCREW
$1.72¢862
1
#29
03541-0512B
SCREW
$2.12¢1 058
1
