479A SIDE BAG VL1500BTL8 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

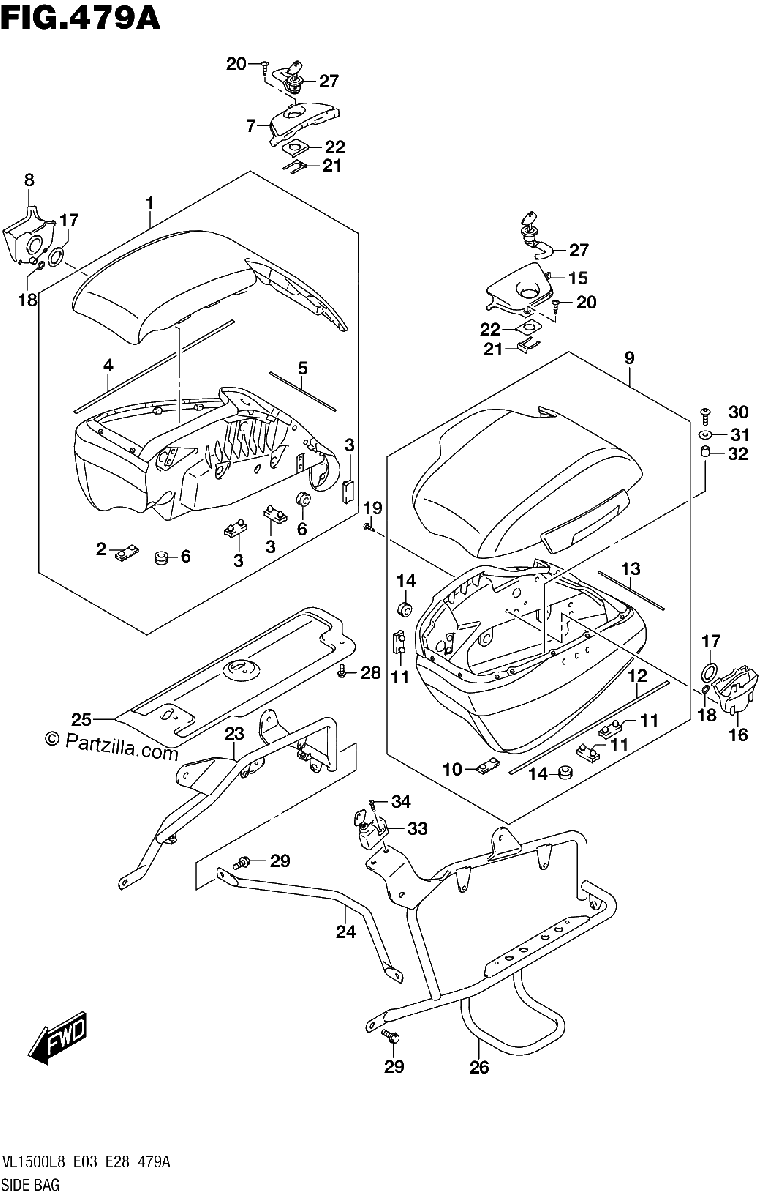

Diagrama de 479A SIDE BAG VL1500BTL8 E28

Repuestos

#1
95400-06J51
BAG ASSY, SIDE RH
$2853.53¢1 426 765
1
#2
45149-12C00
.CUSHION (40X20X6)
$8.25¢4 123
1
#3
95424-06J00
.CUSHION, BRACE NO.2
No Disponible
1
#4
95439-06J00
.CUSHION, UPPER
$6.50¢3 249
1
#5
95536-06J00
.CUSHION, LOWER
$3.83¢1 915
1
#6
09320-11008
.CUSHION
$3.09¢1 547
1
#7
95418-06J00
COVER, KEY CYLINDER RH
$46.55¢23 276
1
#8
95419-06J00
TRAY, SIDE BAG RH
$18.17¢9 085
1
#9
95500-06J41
BAG ASSY, SIDE LH
$2767.62¢1 383 812
1
#10
45149-12C00
.CUSHION (40X20X6)
$8.25¢4 123
1
#11
95424-06J00
.CUSHION, BRACE NO.2
No Disponible
1
#12
95439-06J00
.CUSHION, UPPER
$6.50¢3 249
1
#13
95536-06J00
.CUSHION, LOWER
$3.83¢1 915
1
#14
09320-11008
.CUSHION
$3.09¢1 547
1
#15
95518-06J00
COVER, KEY CYLINDER LH
$15.98¢7 993
1
#16
95519-06J00
TRAY, SIDE BAG LH
No Disponible
1
#17
95533-06J00
CUSHION, TRAY
No Disponible
1
#18
09280-12002
O RING (D:2.4,ID:11.8)
$5.03¢2 513
1
#19
03541-0516A
SCREW
$1.64¢822
1
#20
03541-0520B
SCREW
$3.19¢1 593
1
#21
45289-11F00
PLATE, SEAT LOCK ASSY
$6.80¢3 398
1
#22
95425-06J00
PLATE, SIDE BAG LOCK
No Disponible
1
#23
95470-06J00
BRACE, SIDE BAG RH
No Disponible
1
#24
95481-06J00
BRACE, SIDE BAG CENTER
$88.29¢44 143
1
#25
95482-06J00
PLATE, HEAT SHIELD
$86.77¢43 384
1
#26
95570-06J00
BRACE, SIDE BAG LH
$311.91¢155 957
1
#27
95700-06810
LOCK SET, SIDE BAG
$126.93¢63 463
1
#28
01550-0612A
BOLT
$2.36¢1 179
1
#29
01550-0816B
BOLT
$3.29¢1 644
1
#30
09139-06196
BOLT (6X25)
$2.73¢1 363
1
#31
09160-06154
WASHER (6.5X20X1.6)
$2.39¢1 196
1
#32
09180-06120
SPACER (6.5X11.5X12)
$2.77¢1 386
1
#33
95700-41821
LOCK SET, HELMET
$189.75¢94 875
1
#34
09139-06048
SCREW (6X20)
$1.44¢719
1
